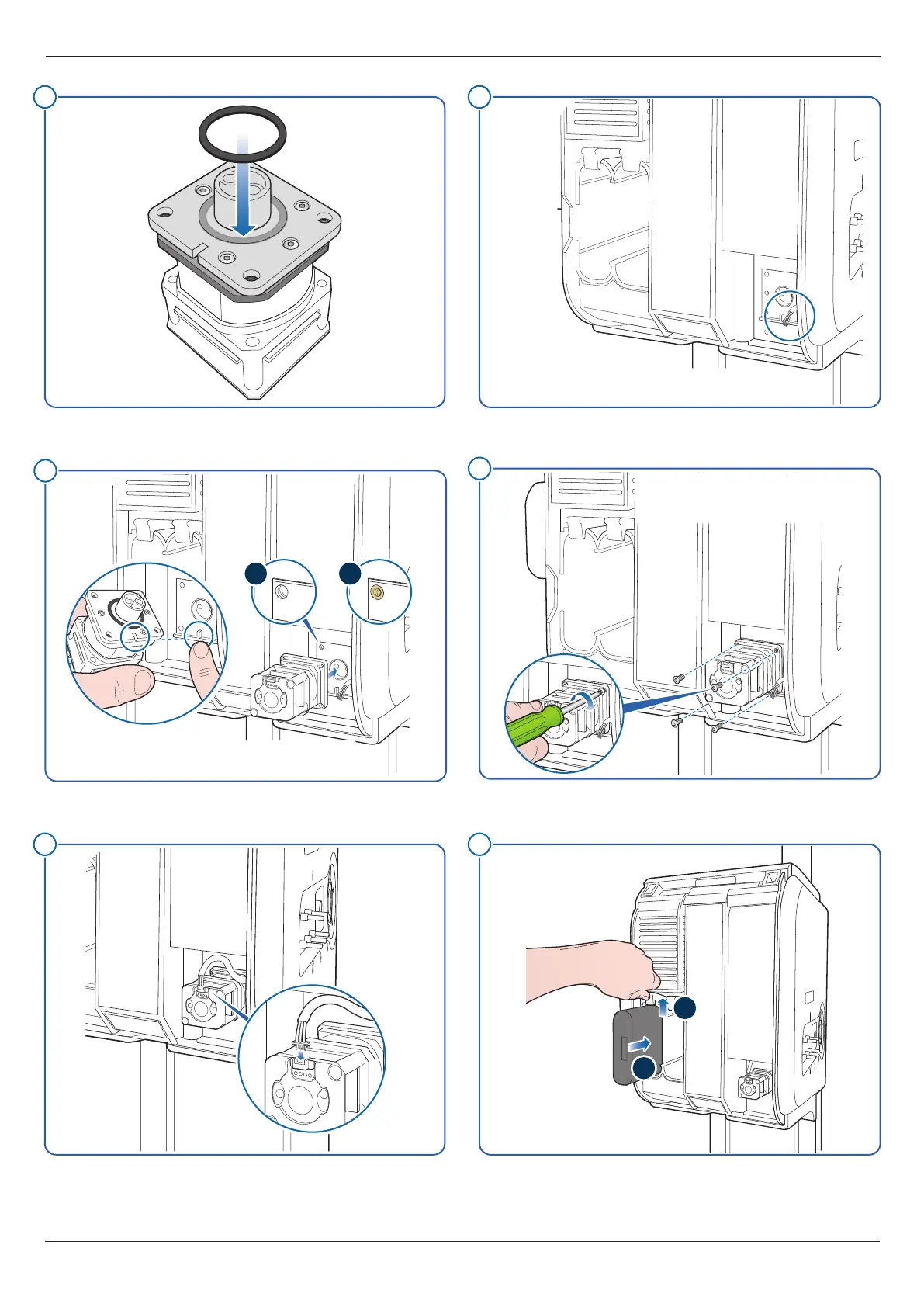

Hamilton Medical | HAMILTON-C6 Paramagnetic O2 sensor Assembly
37
12
1
2
7
10
Note:
Installation of paramagnetic O2 sensor with
Lens head Torx screws (Item E) for mounting
plate with metal threaded screw holes.
8
Note: The cable for the paramagnetic O2 sensor
connector is preinstalled in the sensor compartment.
9
1
2
Note:
1. Mounting plate with threaded screw holes in the plastic.
OR
2. Mounting plate with metal threaded screw holes.
11
