NAMES AND FUNCTIONS

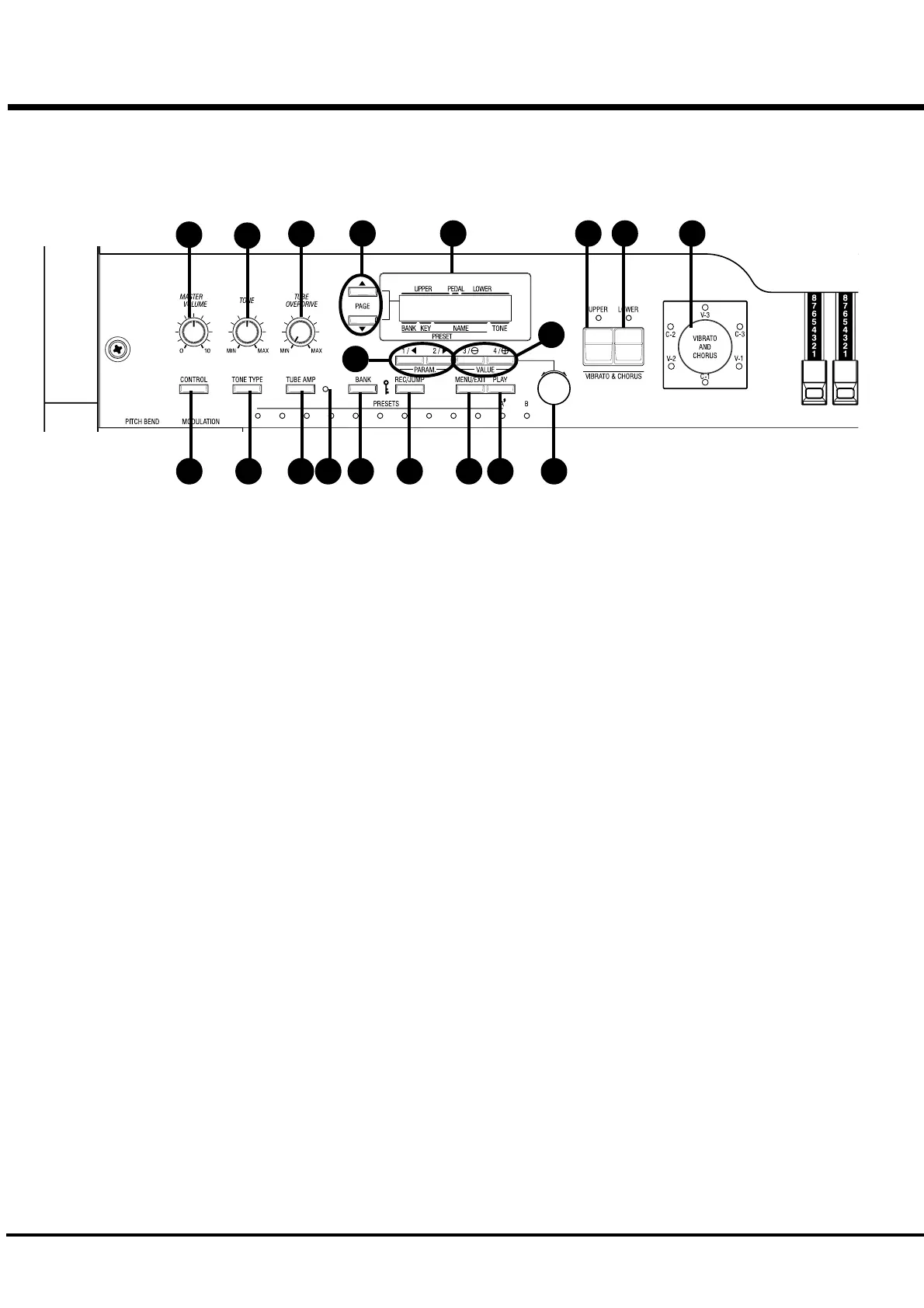

Front Panel
UPPER LEFT
1. MASTER VOLUME Knob
Controls the total volume.
2. CONTROL Button
Sets up various controls.
3. TONE Knob
Controls the tone quality.
4. TONE TYPE Button
Assigns the function of TONE CONTROL (3).
5. TUBE OVERDRIVE Knob
Controls the distortion of TUBE AMP (6).
6. TUBE AMP Button
Switches whether the sound of the UPPER/LOWER parts pass
the tube amp circuit.
7. TUBE AMP. LED
Indicates the status of the TUBE AMP.
8. BANK Button
Switches Bank by pressing together the bank switch with the
Preset key (37).
CONTROL PANEL
9. DISPLAY
Indicates various information.
10. PAGE Button
Selects Pages.
11. PARAM Button
Selects Parameters.
12. VALUE Button
Increases and decreases the value.
13. VALUE Knob
Adjusts the value.
14. REC/JUMP Button
Records Presets. This is also used to allow you to quickly page
through the various choices within each function.
15. MENU/EXIT Button
Recall the MENU screen. This is also used to return from each
function screen.
16. PLAY Button
Jumps to the PLAY screen, the basic screen.
VIBRATO & CHORUS
17. UPPER Button
Switches on and off the Vibrato/Chorus Effects on the UPPER
part.
18. LOWER Button
Switches on and off the Vibrato/Chorus Effects on the LOWER
part.
19. VIBRATO & CHORUS MODE Knob
Changes the depth of Vibrato and Chorus Effects.
1
3
5
2 4 6
10
7 8
9
11
12
1314 15 16
18 1917
