Introduction
13

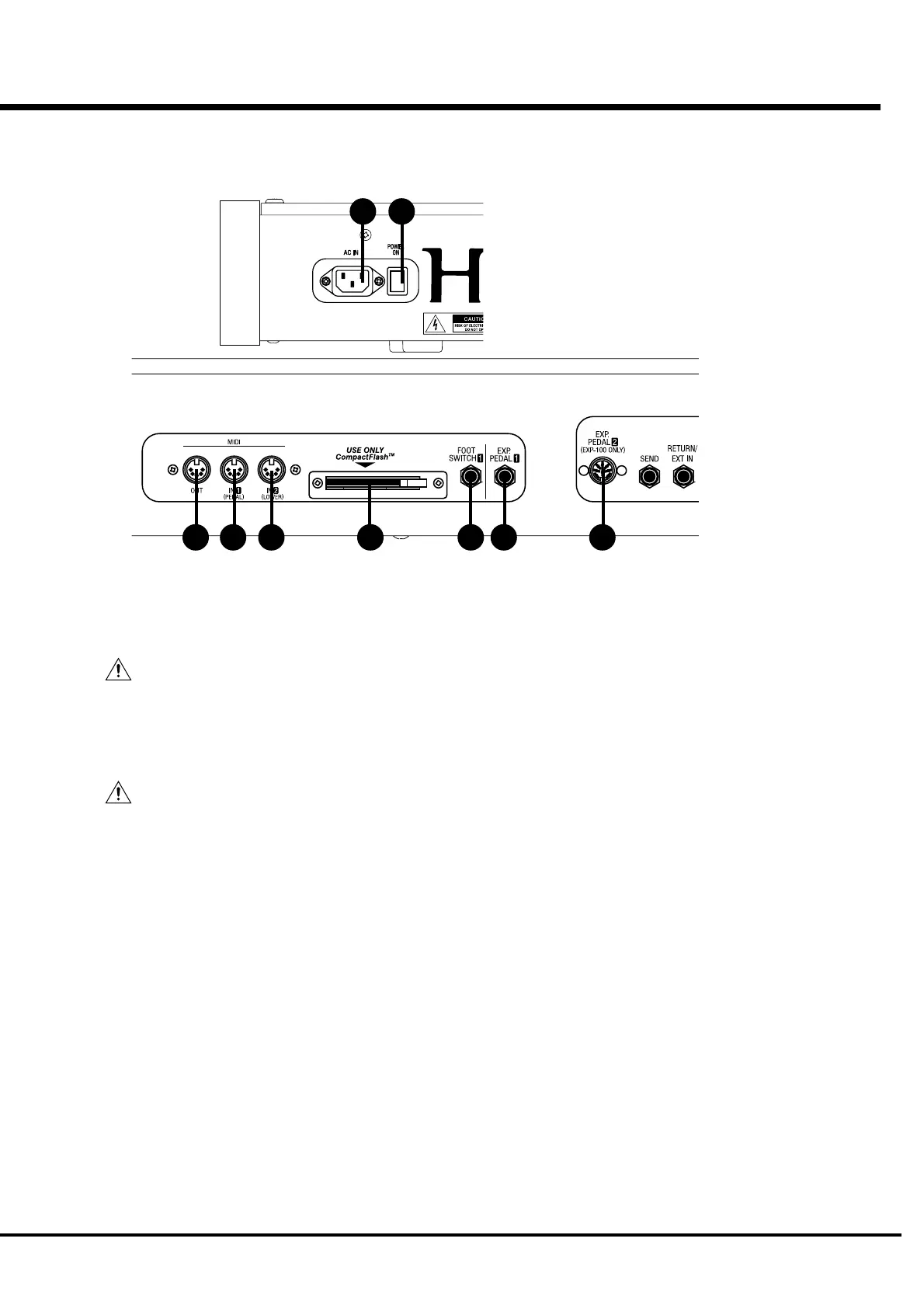

Rear Panel
LEFT SIDE OF REAR
42. AC Inlet
Connects the A.C. Power Cable.
CAUTION
This keyboard shall be connected to a MAINS socket
outlet with a protective earth connection.
43. POWER Switch
This switch turns the power ON and OFF.
CAUTION
Even when the POWER switch is turned off, electricity
is still flowing to the instrument at the minimum level.
When you are not using the instrument for a long time,
make sure you unplug the power cord from the wall AC
outlet.
MIDI TERMINAL
44. MIDI OUT
Sends out the performance information of this keyboard.
45. MIDI IN 1(PEDAL)
This is the MIDI IN Terminal used mainly for the Pedal Key-
board.
[The factory setting] The MIDI information received by chan-
nel. You can set that through this terminal functions as PEDAL,
regardless of the channel.
46. MIDI IN 2(LOWER)
This is the MIDI IN Terminal used mainly for the Lower Key-
board.
[The factory setting] The MIDI information received by chan-
nel. You can set that through this terminal functions as LOWER,
regardless of the channel.
STORAGE
47. CF CARD SLOT
Insert the CompactFlash™ Card here.
This is used to store the setting of this keyboard.
Use required CompactFlash™ Card.
CONTROLLER TERMINAL
48. FOOT SWITCH1
This terminal is for the Foot Switch (= FS-9H - optional) and the
Leslie Switch (= CU-1 - optional).
You can switch the speed of the Leslie effect and the Combina-
tion Preset, etc. while playing.
49. EXP. PEDAL1
This terminal is for the Expression Pedal (= V-20R etc. - op-
tional.)
You can control the volume while you play.
50. EXP. PEDAL2
This terminal is for the exclusive Expression Pedal (= EXP-100F
or EXP-100AN - optional).
42 43
44 45 46 47 48 49 50
To Next Page
