*#1 :-%Owner’s Manual
16

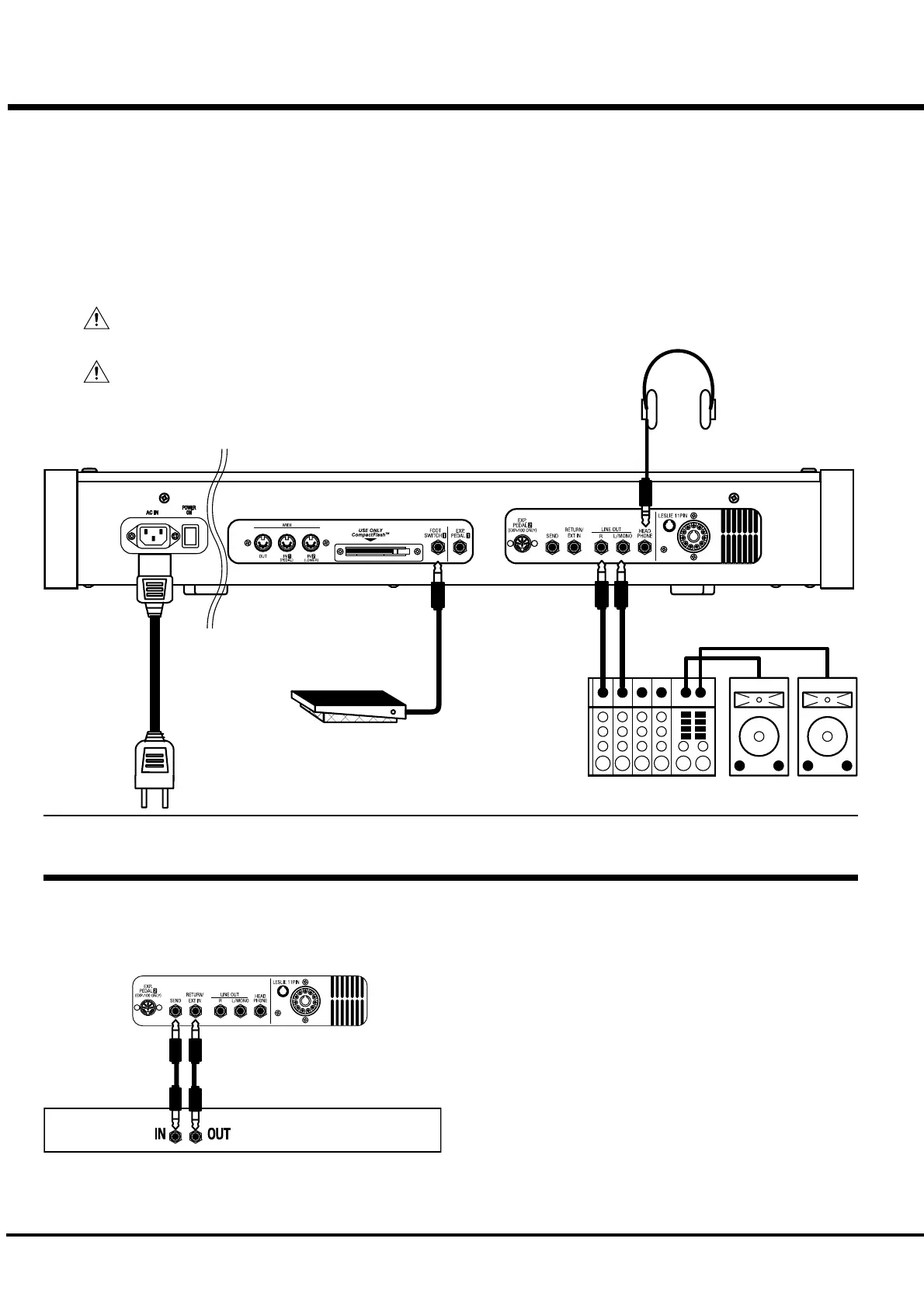

BASIC HOOK-UP
USING EFFECT LOOP
The Effect Loop is used when you want to connect the Leslie Speaker and the
external Effects module which provides audio prior to the built-in Leslie Effect.
Use effects modules which have a output gain of less than
+4dB.
NOTE: The Effect Loop is inserted between built-in Tube Amp
and built-in Effect (Leslie, Reverb, etc.)
NOTE: Depending on the connected equipment, a setting may
be required for the RETURN jack. (P. 83)
See the figure below for connection.
Amplifiers or speakers are not mounted in this keyboard. You must connect an external
amplifiers and speakers (or Powerd Speaker) in order to hear the keyboard sounds.
You can also enjoy playing this keyboard by connecting Stereo Headphones to the Head-
phone Jack.
Be sure to do the connection after you switch the Power OFF on this keyboard and all
connected equipment.
CAUTION
Place this keyboard, making sure or securing the user's easy access to the power switch.
CAUTION
Do not expose this keyboard to any excessive heat sources such as direct sunlight or flames.
Stereo
Headphones
AC Power Cable
(provided)
Foot Switch FS-9H
(optional)
Amplifier, Speakers etc.
To Next Page
