Hook-Up
17
CONNECTING THE LESLIE SPEAKER
This keyboard is equipped with a 11 Pin Leslie Connector, so you can
directly connect the Leslie Speaker.
Do this connection after switching OFF the keyboard.

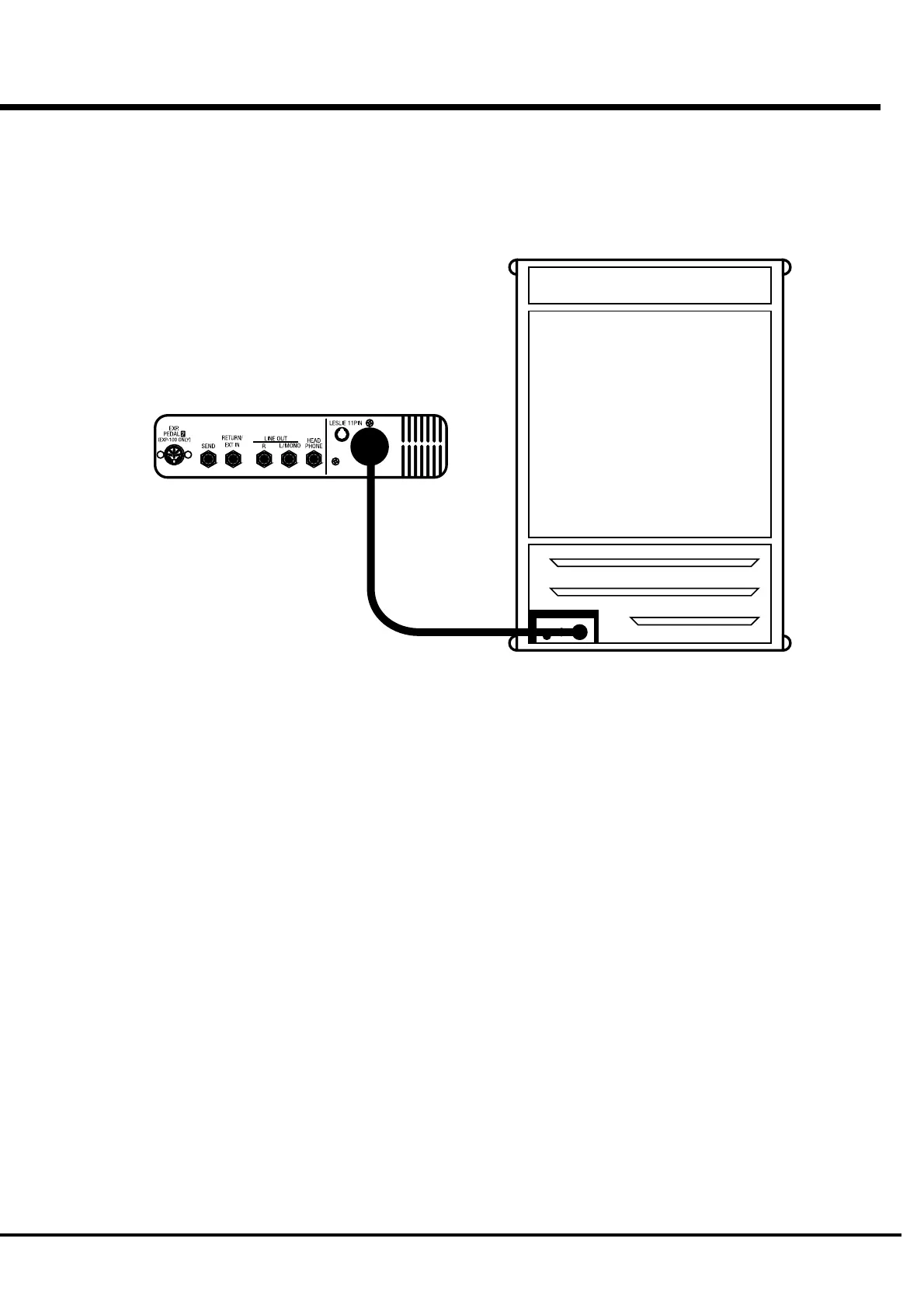

Connect the Leslie Speaker to the 11 Pin Terminal on the
keyboard, with the exclusive 11-Pin Leslie Cable (= LC-
11-7M - to be separately purchased - with the other Leslie
Speaker accessories).
Adjust the setting of the “EXT. LESLIE CH”, in accordance
with the Leslie Speaker connected. (P. 74)
eg. Typical Leslie Speaker Channel
122XB, 3300, 771 -- 1CH
2101/2102, 812/814, 3300 (with Stationary Unit) -- 3CH
Please carefully read the User’s Guide of the Leslie speaker.
