35

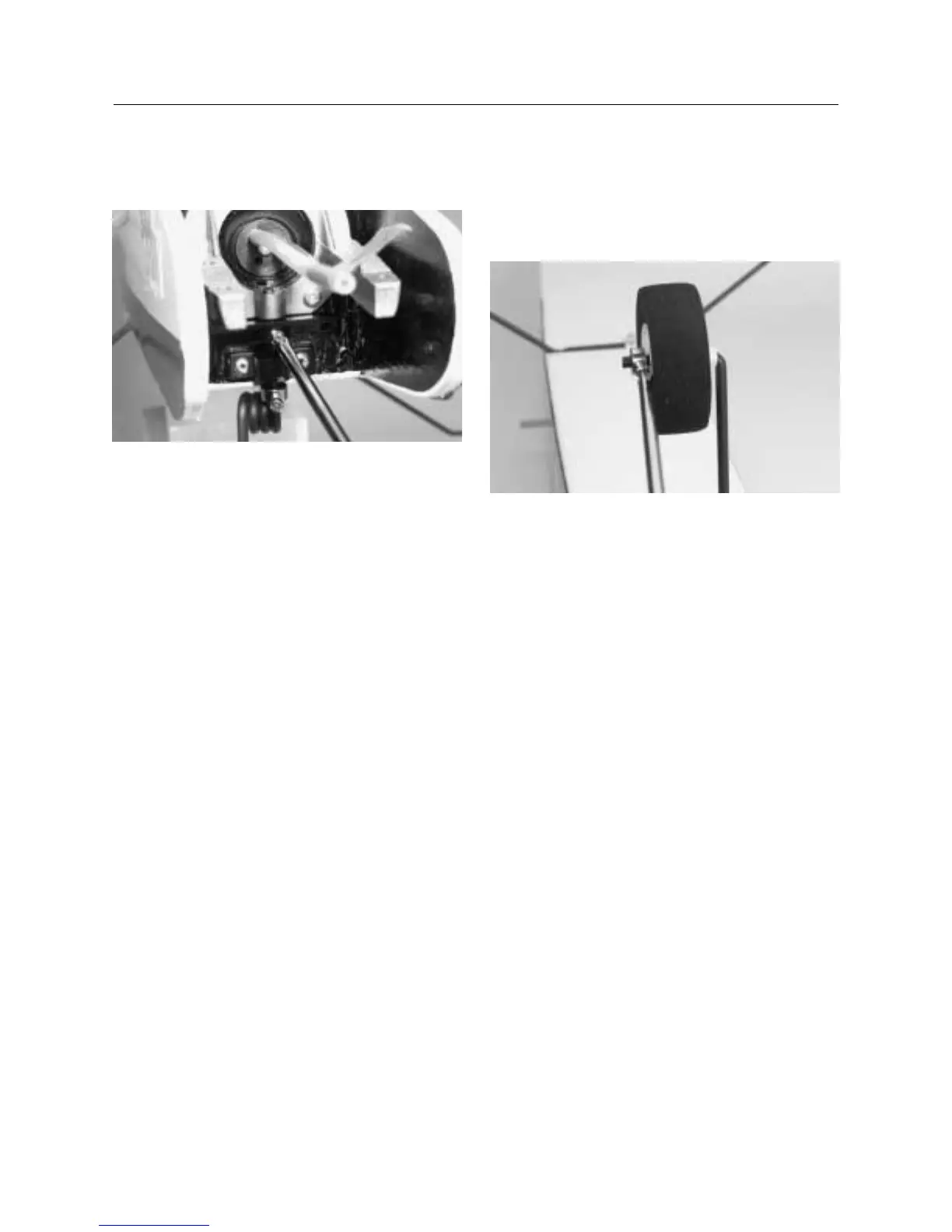

5. Secure the wheel collar using thread lock and a 3mm screw. 6. Attach the nose wheel to the nose gear strut and hold in place
with a plastic spacer from the plastic parts tree, a 5/32′′ wheel
collar and a 3mm screw. Be sure to secure the screw with thread
lock.
Note: Final assembly of the nose gear will be done in the
section on control linkage hookup.
CONTINUED
Section 11: Installing the Nose Gear
