Section 4: Assembling the Fuselage

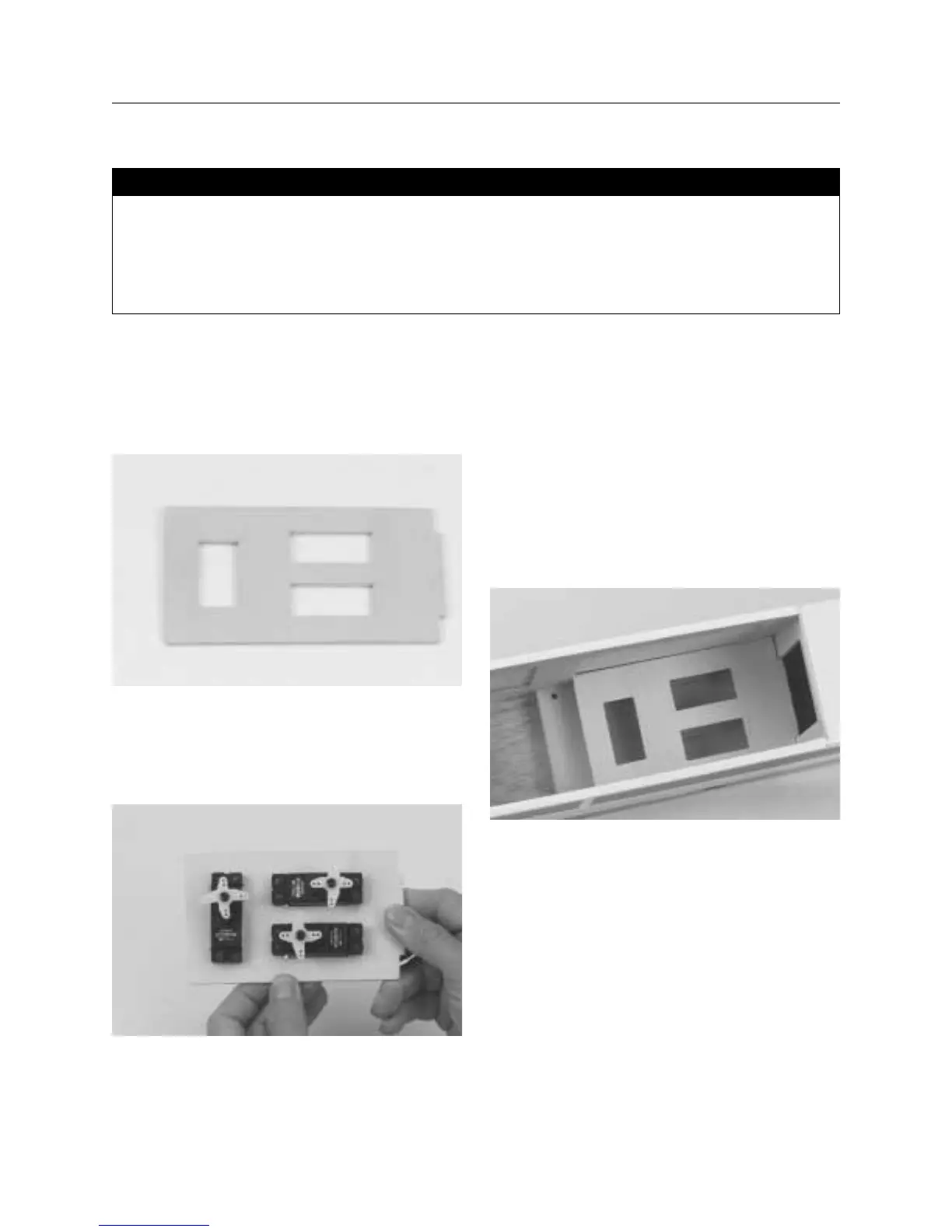

1. Remove the plywood servo tray from the die-cut plywood
sheet.
2. Trial fit the throttle, elevator, and rudder servos into the servo
tray. Depending upon the servos used, it may be necessary to
enlarge the openings of the tray slightly using a file or a sharp
hobby knife.
3. After the proper servo fit has been achieved, remove the three
servos from the servo tray. Trial fit the servo tray into the
fuselage, noting the correct orientation. The single servo cut-out
should be closest to the front of the fuselage.
Note: The tray should seat snugly into the notches in the
servo tray support and fuselage former. If it’s too tight,
use a file or sharp hobby knife to remove a small
portion of the tab from the servo tray.
• Fuselage
• Plywood servo tray
• Hobby knife or file
• Epoxy brush
• 30-minute epoxy
• Rubbing alcohol
• Paper towel
Parts Needed Tools and Adhesives Needed
