HANGCHA CPCD25-XW98E-RT2 - Instrument Key Operation Instructions; Engine Fault Information Display Page; Settings Page; Set Page Actions

15
B. Instrument key operation instructions

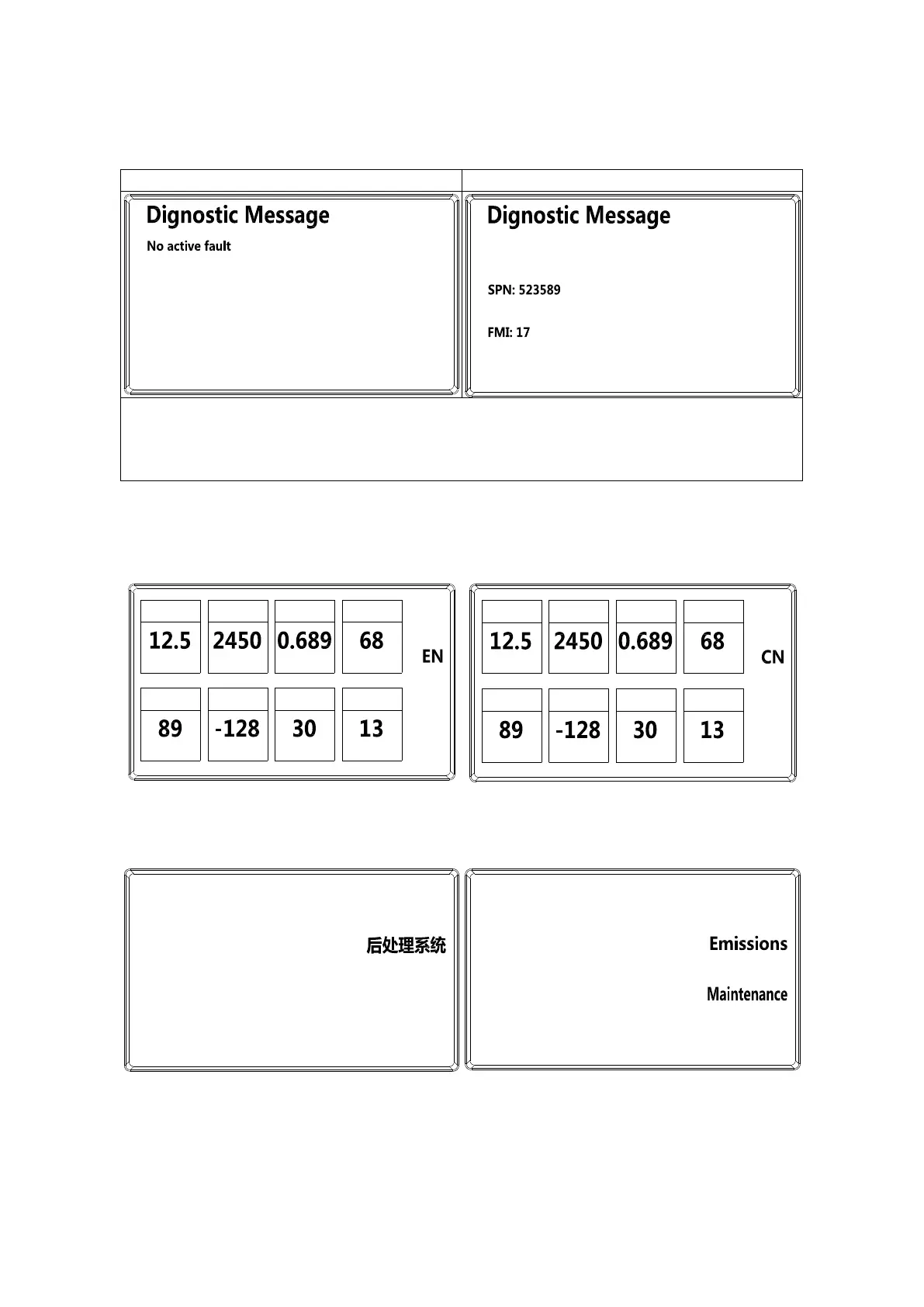

B.1 Engine fault information display page
(1) KUBOTA diesel engine
No fault
Fault
Back
Next
Prev
Back
①Enter the engine fault information display page: Main page=》Key 4
②Fault query page turning: press key 2 or key 3 to page turning (page turning key is not
displayed when there is no fault at present)
③Return to main page: press key 1 to return to main page
B.2 Forklift operation parameters and interface switching between Chinese and English
①Enter the engine information display page: Main page=》key 2 or key 3
②Language switch: press key 3 to switch language (Chinese / English)
③Return to main page: press key 1 to return to main page
蓄电池电压 发动机转速
机油压力 转速负载
Ash 负载 SOOT 负载
进气温度 行驶速度
%
VDC
r/min
℃
km/h
%
Bar
%
Battary
Voltage
Ash
Load
Engine
Speed
SOOT
Load
Oil
Pressure
Intake Air
Temperature
Load @
RPM
Vehicle
Speed
%
VDC
r/min
℃
km/h
%
Bar
%
KUBOTA diesel engine
B.3 Settings page
(1) Set page actions
保养提醒
返回
高级设置
Back
Setting
 Enter the setting page: Main page=》Key 1
 Enter the maintenance page: Main page=》Key 1=》Key 2, to enter the maintenance
page
 Enter the Emissions setting page: Main page=》Key 1=》Key 3, to enter the emissions
setting page
 Enter advanced setting page: Main page=》Key 1=》Key 4, Enter the password input
