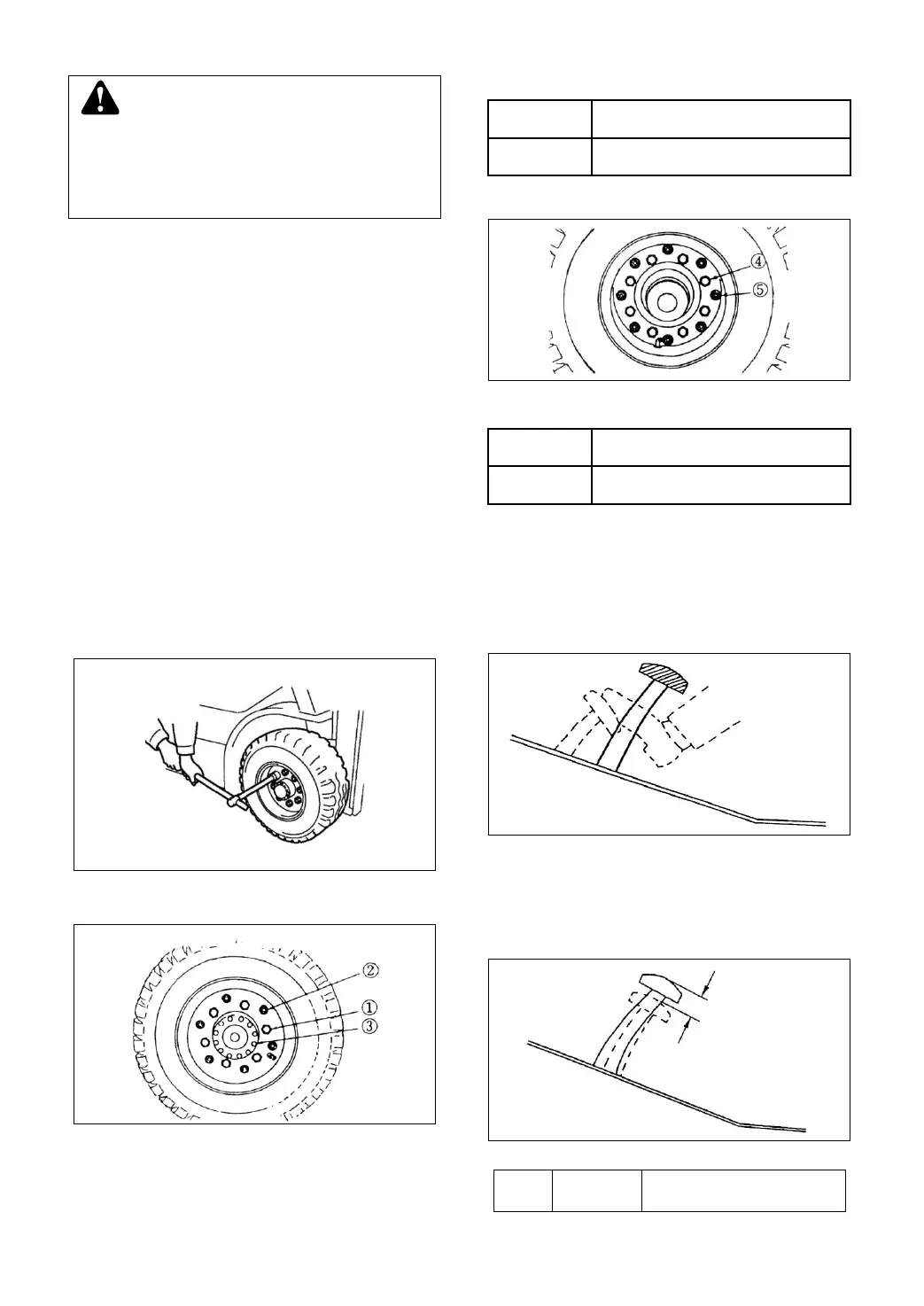

HANGCHA CPCD25-XW98E-RT2 - Chain Lubrication; Front Wheel; Hub Nut Torque Check; Rear Wheel

39
Warning
When painting lubrication grease; stop the
truck on a smooth road, engine off and pull
hand brake. Avoid injury to hand or body,
and avoid falling off from high place. Keep
safe.
7. Chain Lubrication
Take one brush with engine oil paint both
sides on chain
8. Lubrication grease to below parts, the
detail please see Lubrication system
drawing
①Mast bearing lubricate;
②Inching pedal lubricate;
③Steering axle shaft lubricate;
④Steering knuckle main bearing
lubricate;
⑤Steering rod bar pin lubricate;
⑥Steering cylinder pin lubricate.
9. Bolt, nut tighten
Refer to the Maintain periodic chart.
10. Hub nut torque check
Check if tightening torque of hub nut meets
standard.
Front wheel
①Hub nut
②Split-type rim bolt；
③Half axle bolt
Tightening torque N.m：
2.0t-3.5t
Hub nut
324-373
Rear wheel
④Rear hub nut；
Tightening torque N.m：
2.0t-3.5t
Hub nut
157-176
⑤Split-type rear rim bolt（some truck model
without）
11. Brake pedal, inching pedal and clutch
pedal check
Step the brake pedal fully when the engine is
running, the distance between brake pedal
and front soleplate should be more than
60mm.
Check the inching pedal and clutch pedal
using the same method
2.0t-3.5t Height and the free clearance
Height
mm
Free clearance mm
