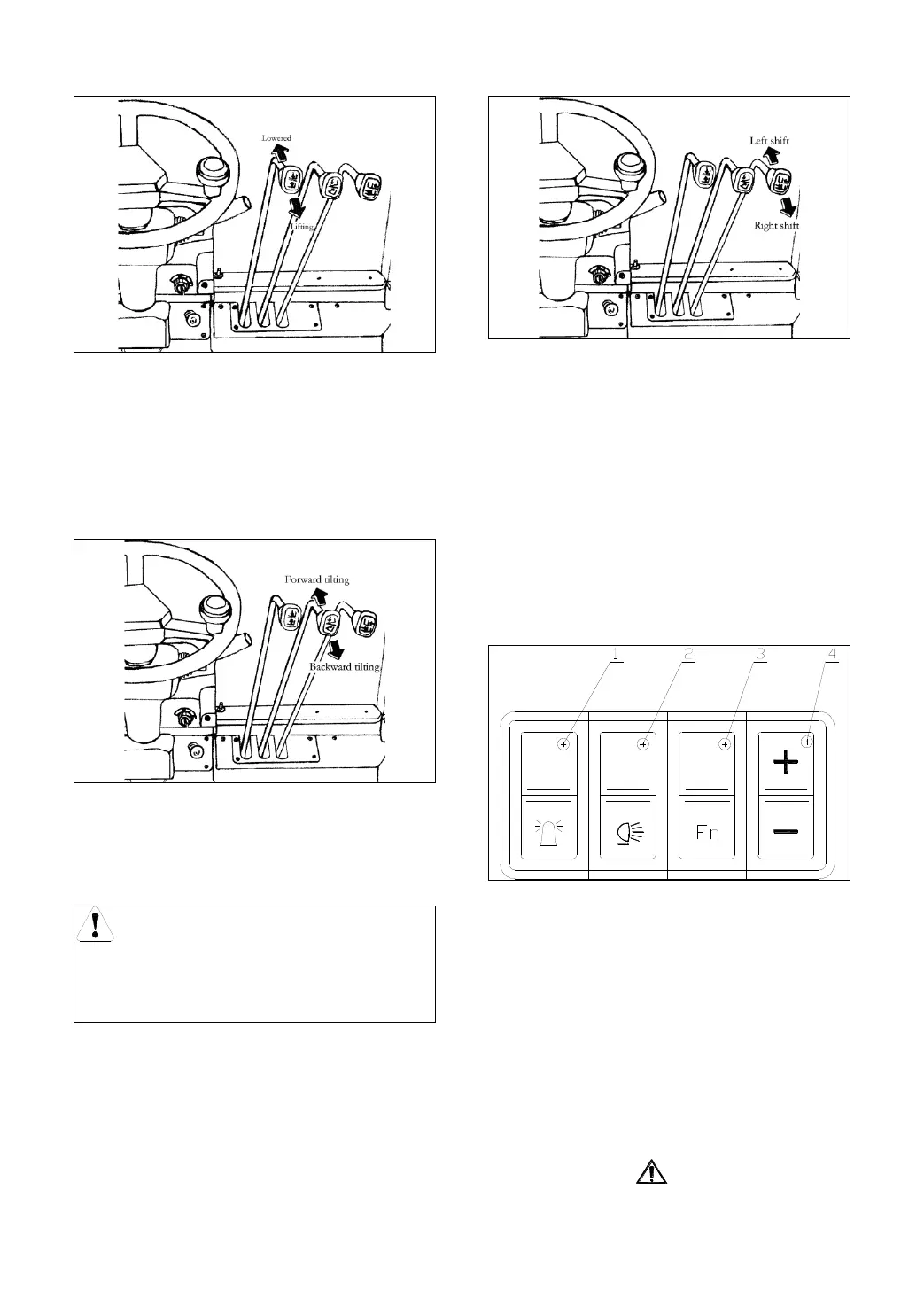

Lift lever [5]
Controls the forks‘ up or down.
Push forward——lowered
Pull backward——lifting
Lifting speed is controlled by tilting backwards
angle of lever and accelerator pedal. The
lowering speed can be controlled by tilting
forwards angle of the lever.
Tilt lever [6]
It is used for forward and backward tilting of
mast.
Push—tilt forward
Pull---tilt backward
The tilting speed is controlled by tilting angle
of the lever and accelerator pedal effort.
Caution
The tilt lock mechanism in the hydraulic
control valve will not allow the mast to tilt
forward while the engine is being shut down,
even if the tilt lever is pushed forward.
Side shift control lever
Used for left shifting and right shifting of the
side shift bracket.
Push forward-move to the left
Pull backward-move to the right
Side shifting speed depends on the tilting
angel of the handle and accelerator control.
Different attachment type has different
working way, so the operator must be familiar
with the operation.
Cup holder[7]
It is in the right side of the instrument. It‘s
designed for the operator to put the cup.
Rocker switch[9]
(Two-wheel drive rough terrain forklift
truck)
1 Warning light.：Press backward, the warning
light is on; press forward, the warning light is
off.
2 Rear headlamp switch：Press backward, the
rear headlamp is on; press forward, the rear
headlamp is off.
There may be some difference with the rocker
switch if with cab. Add ventilation, anti-fog or
other functions.
3 Engine malfunction detect switch（Only for
CUMMINS engine）： When the engine has
something wrong, put the Key Switch at the
position┃（ON）, “Engine detect”switch at
“Fn” or “ON”, Indicator is always on,
