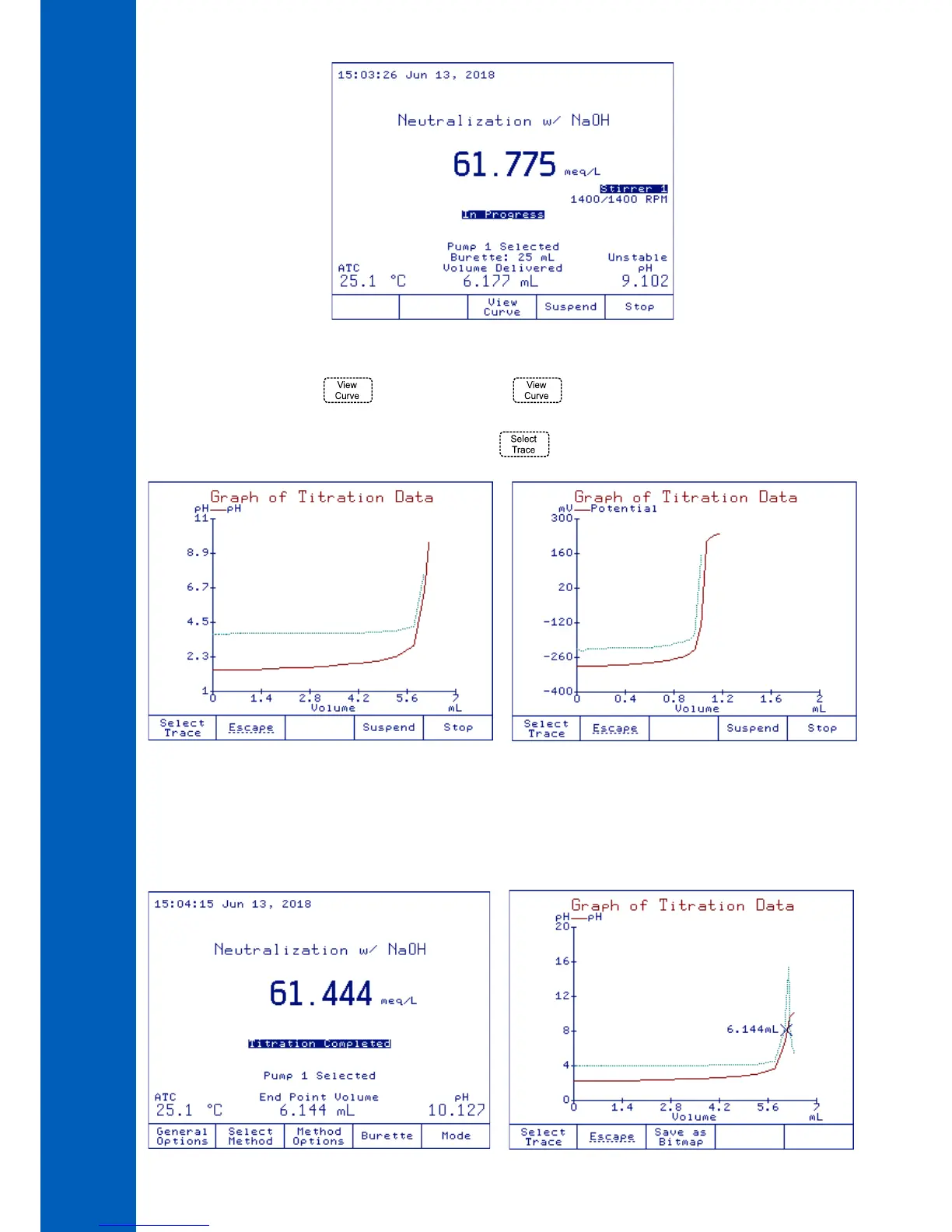

Viewing Graph During Titration
After a few doses are dispensed, will become active. Press to display the real-time titration graph.
The curves displayed are plots of the pH and the 1st derivative versus Titrant Volume (for details, see the Instruction Manual).
The two graphs are scaled to fit in the same screen window. Press to change the y-axis scale to either the pH values or the
1st derivative values.
Titration Termination
The titration is normally terminated when the first equivalence endpoint is detected according to the selected algorithm. To ensure the
correct detection and interpolation of the equivalence endpoint, the titrator will dispense a few additional doses after the endpoint
was reached.
The titration result can be displayed either in the main screen or in the Graph of Titration Data screen:
