38
LOGGING

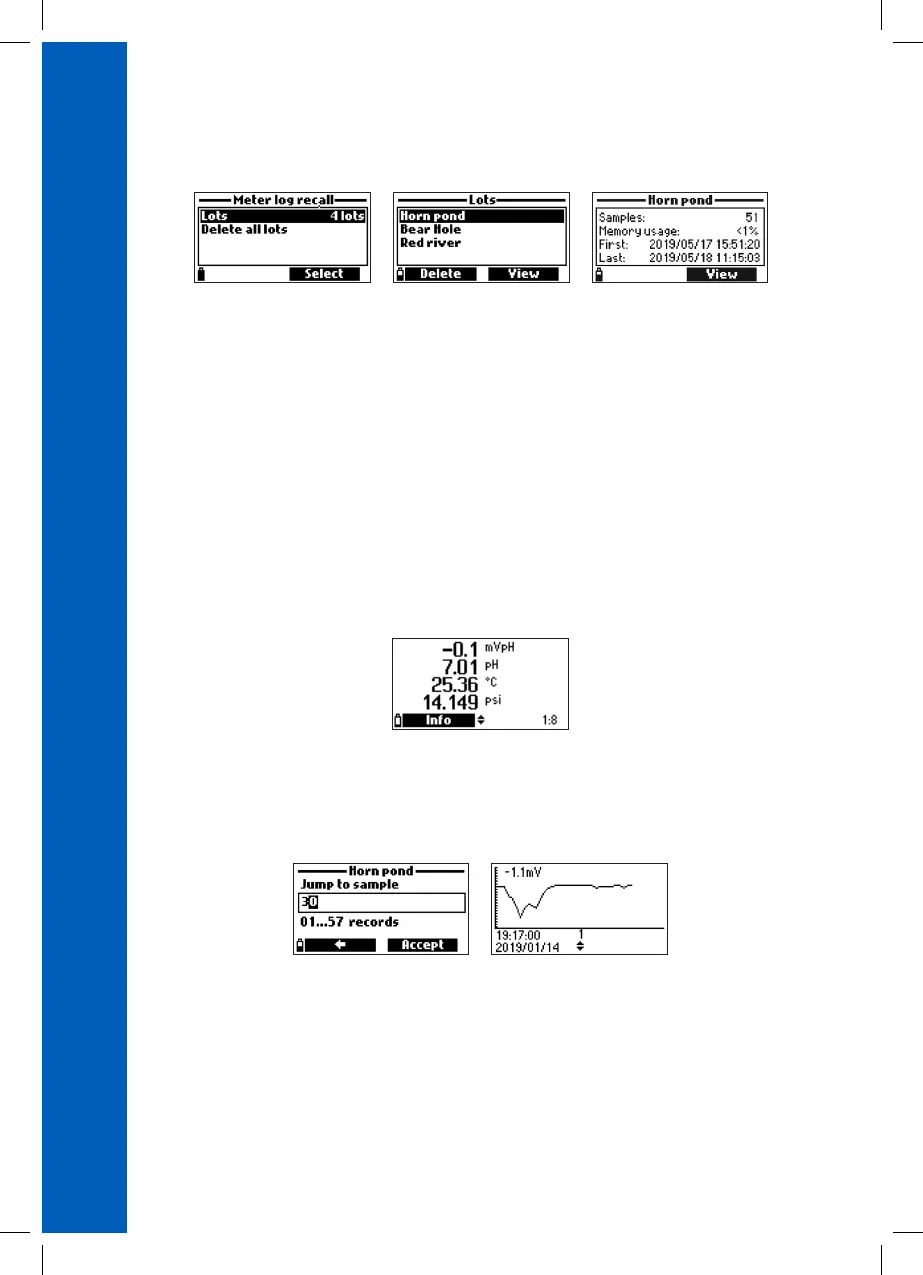

• Press View to display the sample details for each point. Use the / keys to change the sample
number in the selected lot. The sample number is shown on the top right corner of the display.
Notes: The values displayed for DO concentration, compensated conductivity and TDS are
dependent on the coefficients defined in Parameter Coefficients in Setup menu (EC Reference
Temperature, EC Temperature Coefficient, TDS factor and Salinity). If parameter units or
coefficients are altered, stored logs on this meter will be altered reflecting these changes. Save
logs to a PC before altering parameters or coefficients. Details are available only for the enabled
parameters.
• Press Info to view information for the current sample (time & date, remark or serial number).
• Press Data to return to the previous screen or Jump to select a different sample in the same lot.
When Jump is pressed, a text box appears to insert the desired sample number.
• Press ESC to return to the menu.
• Choose Plot and the meter will create a list with all available parameters that can be plotted.
• Use the / keys to select the desired parameter. Press Select to view the graph.
• Use the / keys to move the cursor in the graph and highlight a sample. The sample data are
displayed below the graph.
• Press ESC to return to the parameter list.
• Press ESC again to return to the menu.
Note: The number of lot samples that can be plotted is limited by the display resolution. To view
a complete graph download data to PC.
