24
R649c
SEPTEMBER 2018
CUSTOMER SUPPLIED POWER SUPPLY AND CONTROLLER
(Relay Input Slow Open/Close Solenoid Control)
The valve is supplied with 6.5 feet of cable with 22 and 24 gauge wires. For greater distance between valve and controller
use wire size as shown in Table 1: 24VAC/DC Power Wiring. Do not run Motorized Control Valve wiring with or near high
voltage power wiring or VFD Controls (Variable Frequency Drives). Do not earth or ground 24 VAC wiring.
NOTE: Do not connect voltage to pink or yellow wires as it will damage the actuator board.

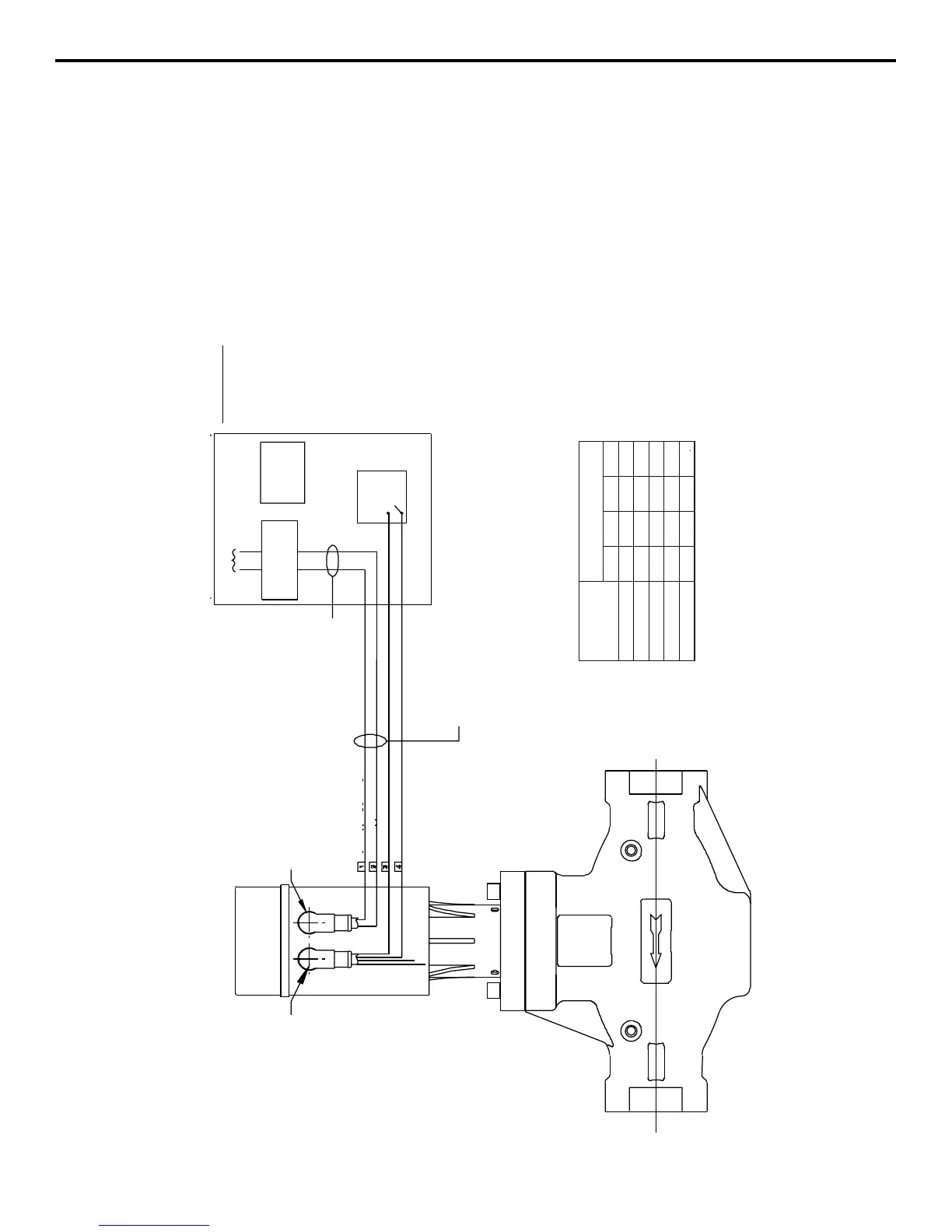

FIGURE 17
MOTORIZED CONTROL VALVE INSTALLATION
NUMBER OF VALVES POWERED
AWG WIRE GAUGE (DIAMETER mm)
CABLE LENGTH, ft (m)
1
2
4
3
50 (15)
200 (61)
150 (46)
100 (30)
300 (91)
12 (2.1)
14 (1.6)
15 (1.5)
17 (1.2)
20 (0.8)
9 (2.9)
11 (2.3)
12 (2.1)
14 (1.6)
17 (1.2)
8 (3.3)
9 (2.9)
11 (2.3)
12 (2.0)
15 (1.5)
6 (4.1)
8 (3.3)
9 (2.9)
11 (2.3)
14 (1.6)
TABLE 1: 24VAC/DC POWER WIRING
8 PIN SIGNAL
5 PIN POWER
(POWER)
(POWER)
(CONTROL SIGNAL/GROUND)
(CONTROL SIGNAL)
GRAY: (-)24VDC/24VAC
BLACK: (+)24VDC/24VAC
YELLOW: (-)INPUT
PINK: RELAY INPUT
ISOLATED FROM EARTH GROUND
THE VALVE IS SUPPLIED WITH 6.5 FET OF CABLE WITH
22 AND 24 GAUGE WIRES. FOR GREATER DISTANCE
BETWEEN VALVE AND CONTROLLER, OR MULTIPLE
VALVE INSTALLATIONS, USE WIRE SIZE AS SHOWN
IN TABLE 1: 24 VAC/DC POWER WIRING
DO NOT RUN MOTOR VALVE WIRING
WITH OR NEAR POWER WIRING OR VFD (VARIABLE
FREQUENCY DRIVES).
CUSTOMER SUPPLIED POWER SUPPLIES AND CONTROLLER
(Modulating Control with Position Feedback)
LINE VOLTAGE
DC POWER SUPPLY
HANSEN PN 75-1327
24VDC
0.8A MIN PER VALVE
TR92
TRANSFORMER
24VAC
42VA MIN
PER VALVE
-V
+V
OR
PLC OR
CONTROLLER
RELAY
TYPICAL APPLICATIONS
IDEAL FOR REPLACEMENTOF:
1. BOTH HOT GAS SOLENOID VALVE
AND SOFT GAS SOLENOID VALVE
WITH A SINGLE HANSEN MOTOR VALVE.
2. BOTH SUCTION SOLENOID VALVE
AND EQUALIZE SOLENOID VALVE
WITH A SINGLE HANSEN MOTOR VALVE.
3. ANY OPEN/CLOSED APPLICATION
REQUIRING SLOW OPERATION TO
MINIMIZE LIQUID VELOCITY SHOCK
AND/OR REQUIRING NO PRESSURE
DROP TO OPERATE. (VENT OR GRAVITY DRAIN)
4. MOST MOTORIZED BALL VALVE AND
BUTTERFLY VALVE APPLICATIONS THEREBY
ELIMINATING SHAFT SEAL LEAKAGE.
NOTES:
1. NO EXTERNAL POWER NECESSARY
2. DEFAULT SETTING:
RELAY CLOSED = VALVE CLOSED
