27
R649c
SEPTEMBER 2018
HANSEN PXVC CONTROLLERS
The PXVC Intelligent, single loop, PID controller is a
standalone cabinet mounted electronic universal controller.
The Hansen PXVC controller can be configured for several
different applications. The controller, with factory defaults,
will give reasonably good control. If control difficulties
occur during startup, it is recommended first to thoroughly
check system and components for proper installation,
operation, and sensor location before attempting to tune
the PXVC controller. Field alteration of the controller
configuration is not recommended. Controller tuning of
the P-I-D is performed in the “parameters” section and
are the only parameters the user may need to optimize.
See the PXVC Universal Controller Bulletin found at www.
hantech.com for more information.
TECHNICAL SPECIFICATIONS
PXVC-PT
PXVC-P, PXVC-T,
PXVC-L, PVXC-DX
POWER SUPPLY
Operating Voltage 24V AC, 50/60 Hz ±10% (OR) 24VDC
Power Consumption Max. 3 VA
Electrical Connection Terminal Connectors, Removable AWG 24…12
SIGNAL INPUTS
Input #1 Pressure Transducer
Model Dependent, See Wiring
Diagram
Input #2 Temperature Sensor Dry Contact Closure
Input #3 Dry Contact Closure Not Available
SIGNAL
OUTPUTS
Output #1 N/A
Output #2 Alarm, 24…250VAC, 1A max, TRIAC
Output #3 4-20 mA @ 24VDC
ENVIRONMENT
Temperature 32…122ºF (0…50ºC)
Humidity < 95% r.H. non-condensing
STANDARDS
conform according
to EMC Standard
89/336/EEC EMEI
Standard 73/23/EEC
EN 61 000-6-1/EN 61 000-6-3
Degree of Protection NEMA1, IP30
Safety Class I1 (IEC 60536)
Cover, back part Fire proof ABS plastic (UL94 class V-O)
Weight (including package) 8.5 oz (240 g)
Optional IP65 Enclosure available, See page 44

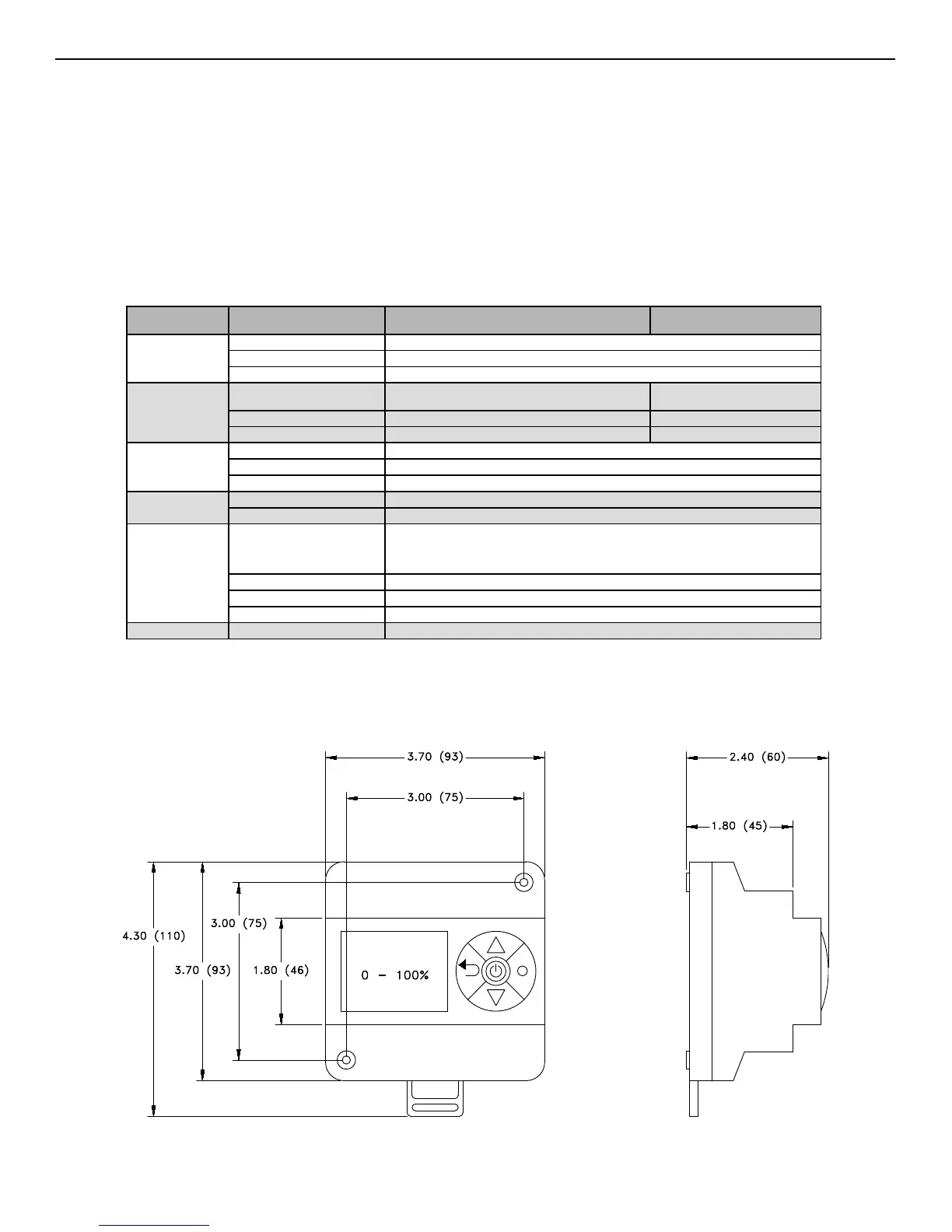

DIMENSIONS (IN, MM)
TABLE 26
FIGURE 20
HANSEN CONTROLLERS
