33
R649c
SEPTEMBER 2018
8
PXVC
NOV 2012
PXVC-DX, PXVC-T, PXVC-L, PXVC-P, PXVC-CI
1 2 3 4 5 6 7 8 9 10
1 2
-25.0 °F
-20.0 °F
ACTIVE CONTROL LOOP
(ALWAYS 1)
ACTUAL
TEMPERATURE/
PRESSURE/LEVEL/
SUPERHEAT
SETPOINT
OUTPUT ON %
ACTIVE ALARMS
( 1 - 7 )
PXVC FUNCTION KEYS
• Center button (POWER): Pressing the button for more than 2 seconds switches the unit off — with Remote
Interlock disabled.
• Up button: Increment set points and parameters, select menu options.
• Down button: Decrement set points and parameters, select menu options.
• Right button: Access for different control modes. Advance setting.
• Left button: Access for different control modes. Acts as escape to leave menu levels or discard parameters.
DISPLAY AND KEYPAD OPERATION
FIGURE 25
HANSEN CONTROLLERS

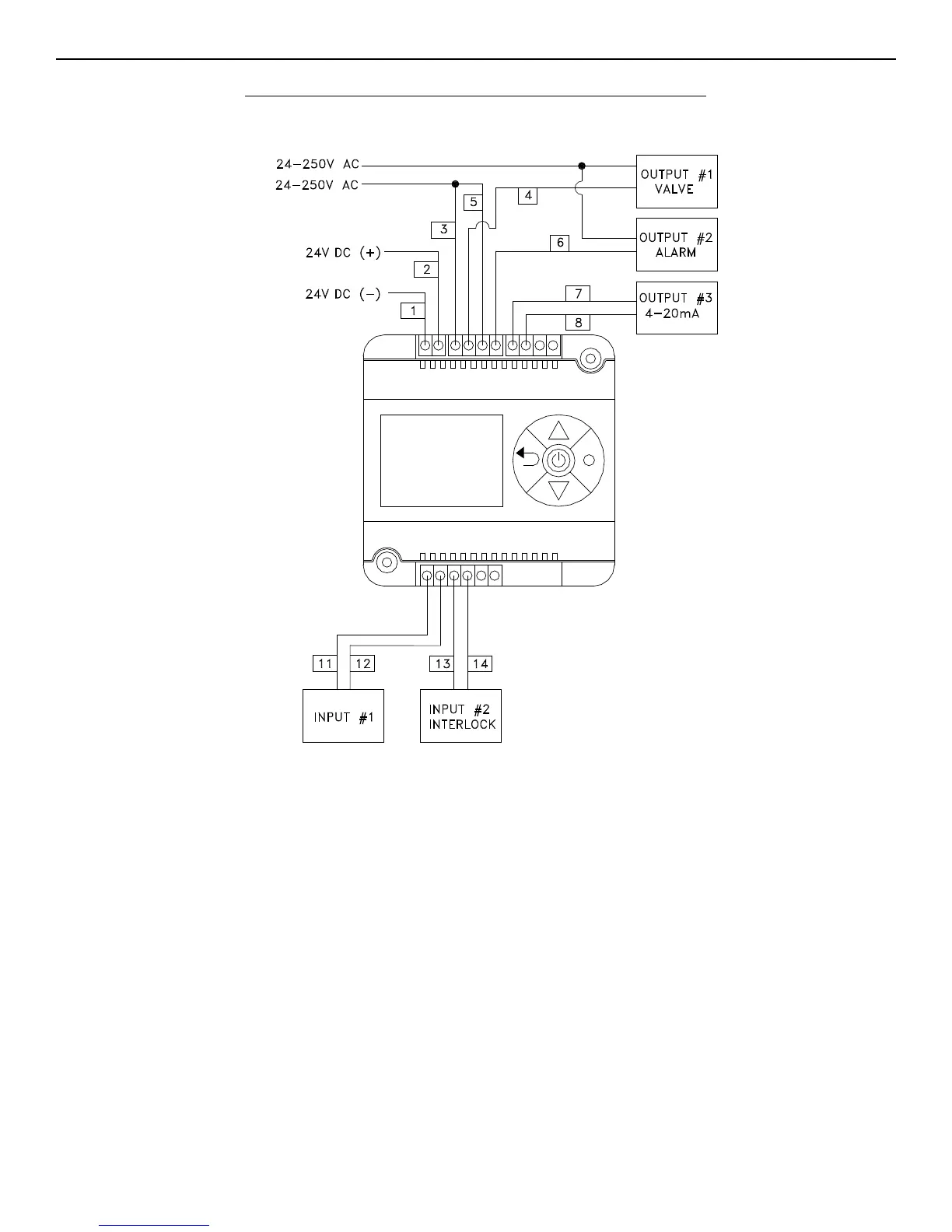

PXVC-T, PXVC-L, PXVC-P, PXVC-DX INPUTS/OUTPUTS
(+)
(-)
Default
z
(+)
(-)
Default
z
PXVC
MAY 2012
10
