Hansen MCV - INSTALLATION PARAMETERS RECORD; Valve & Application Data Entry

38
R649c
SEPTEMBER 2018
INSTALLATION PARAMETERS FOR THE MOTORIZED CONTROL VALVE
APPLICATION DESCRIPTION
VALVE DESCRIPTION
Catalog Number: _____________________________________
(from nameplate on valve bonnet)
Port Size: _____________________________________________
Serial Number: _______________________________________
Valve Tag: ____________________________________________
Refrigerant: ___________________________
Service Type (Dry or Wet Suction, liquid make-up, hot gas, liquid feed, etc.): ________________________________________
Rated Capacity of Valve (per capacity tables based on Pressure Drop above): _______________________________________
Application High Load Capacity: ______________ Percent of Rated Capacity of Valve ___________ %
Application Low Load Capacity: ______________ Percent of Rated Capacity of Valve ___________ %
Typical valve position (based on Display or PLC trending): ___________ %
Inlet Pipe Size: _______________________________________
Inlet Temperature: ____________________________________

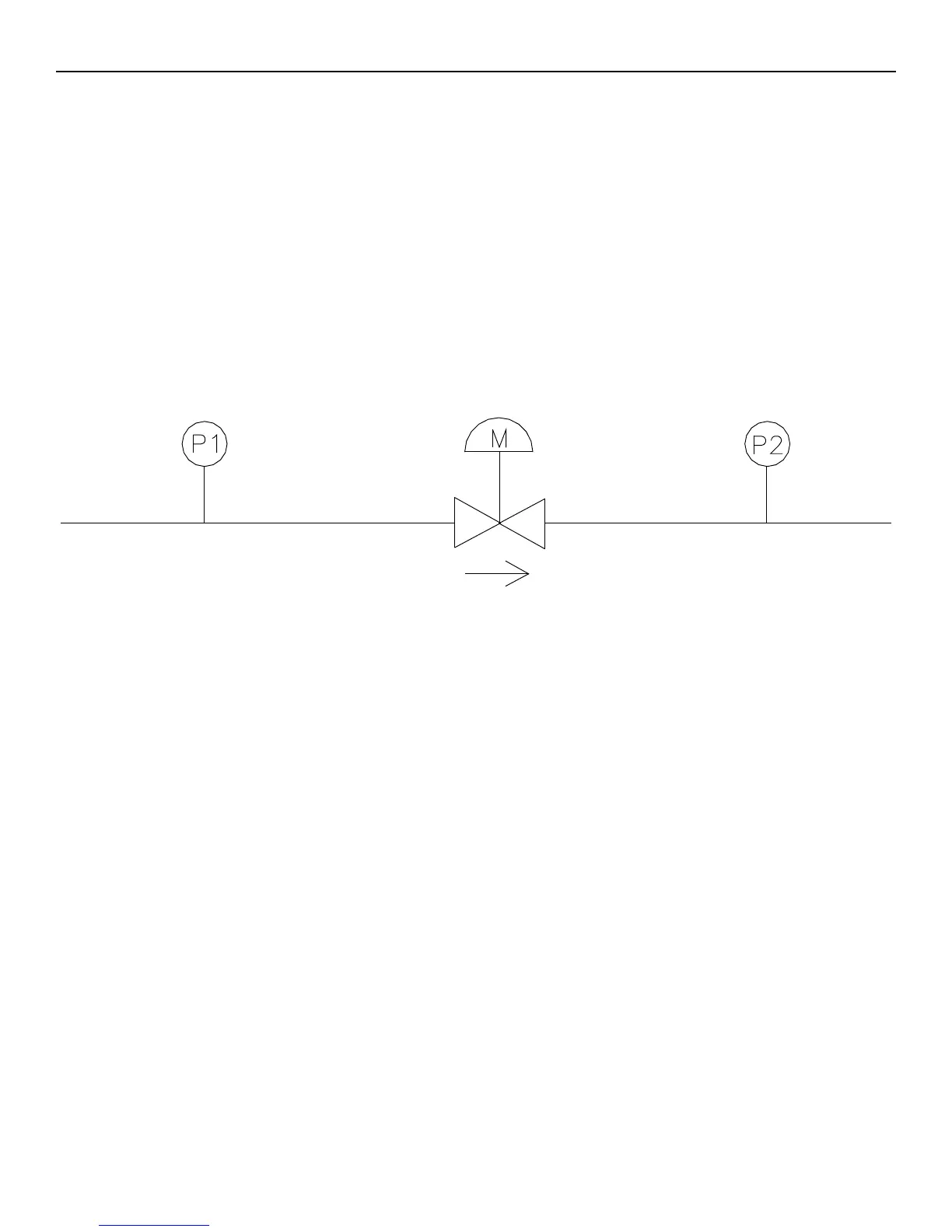

Inlet Pressure (P1): ___________________________________
Pressure Drop (P1–P2): _______________________________
Outlet Pipe Size: ______________________________________
Outlet Temperature: __________________________________
Outlet Pressure (P2): _________________________________
INSTALLATION DESCRIPTION
Location Description: _________________________________
(e.g. Evaporator #6, suction valve, outdoors)
Installation Location (facility name, city, state):
_______________________________________________________
_______________________________________________________
