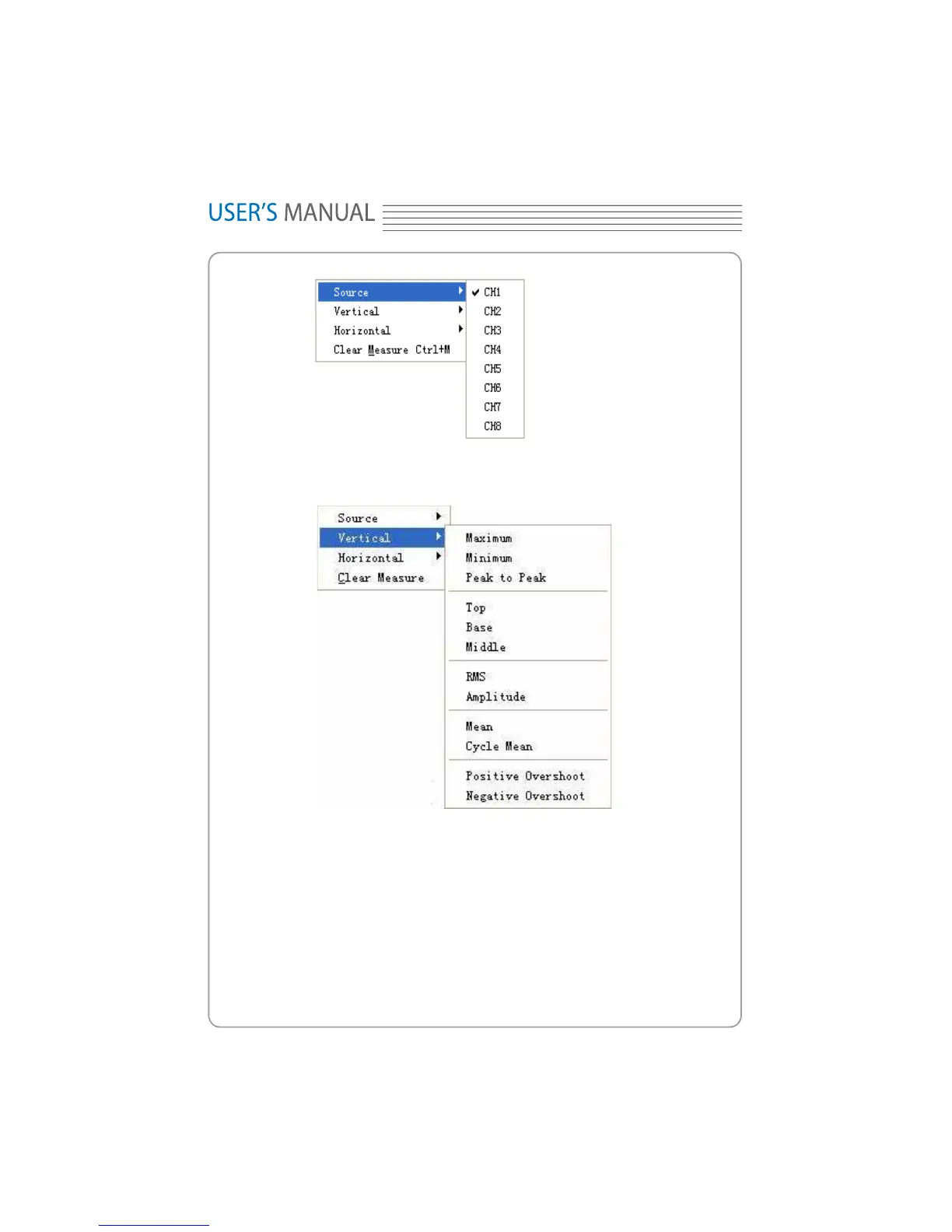

1. Source
The user can use the “Source” menu to select a measure source.
2. Vertical
Maximum: Voltage of the absolute maximum level, measured over the entire waveform.
Minimum: Voltage of the absolute minimum level, measured over the entire waveform.
Peak To Peak: Peak-to-peak = Max – Min, measured over the entire waveform.
Top: Voltage of the statistical maximum level, measured over the entire waveform.
Base: Voltage of the statistical minimum level, measured over the entire waveform.
Middle: Voltage of the 50% level from base to top.
60
Hantek1008
