Hantek 1008 - The Display System

The Display System
Display Type
Click “Type” in “Display” menu.

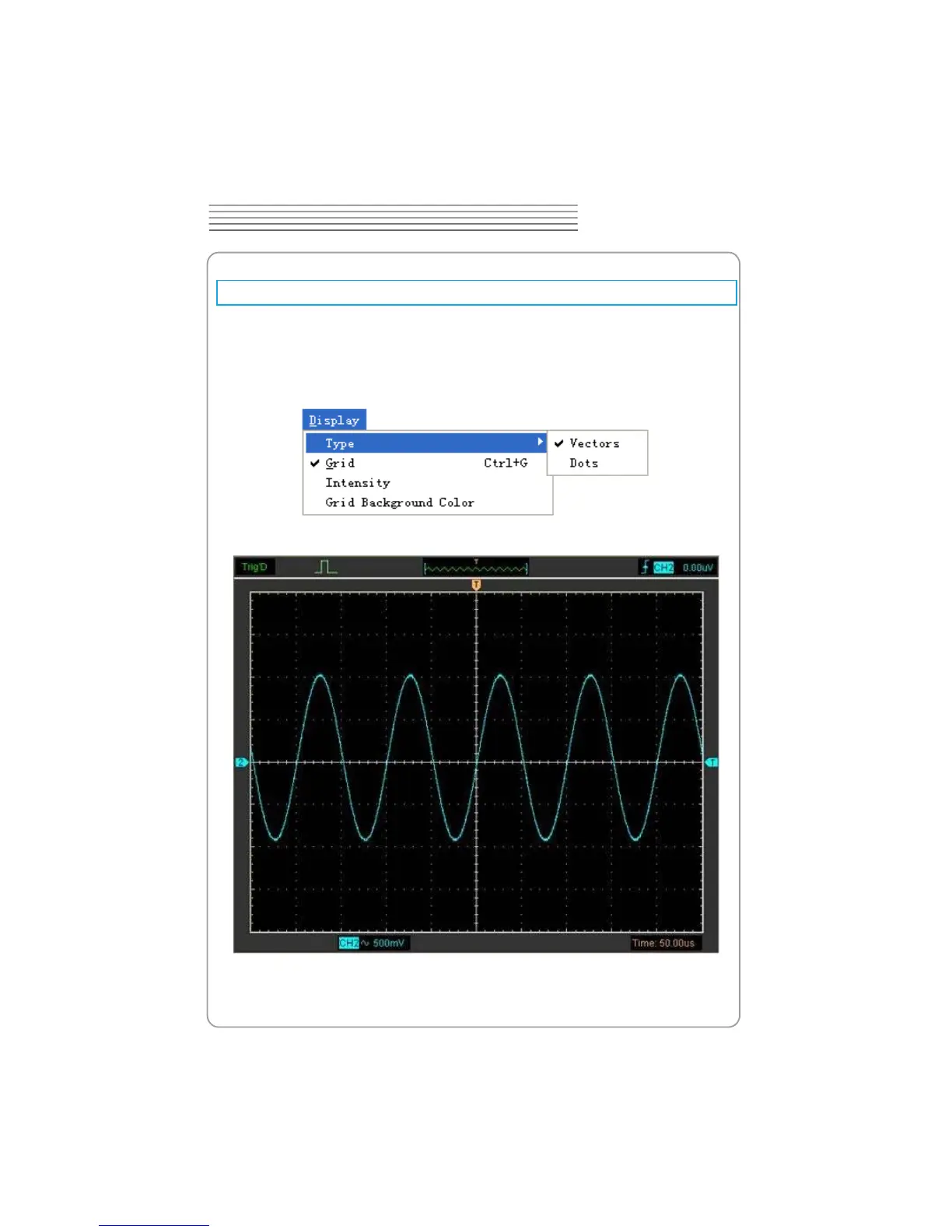

The following figure shows the type parameters setting.
If the Vectors
type mode is selected, the waveform will be displayed as following figure.
63
Hantek 1008
DIGITAL OSCILLOSCOPE
