+Pulse Width: Measured of the first positive pulse in the waveform. The time between
the 50% amplitude points.
-Pulse Width: Measured of the first negative pulse in the waveform. The time between
the 50% amplitude points.
4. Clear Measure
Clear all measure items on display screen.

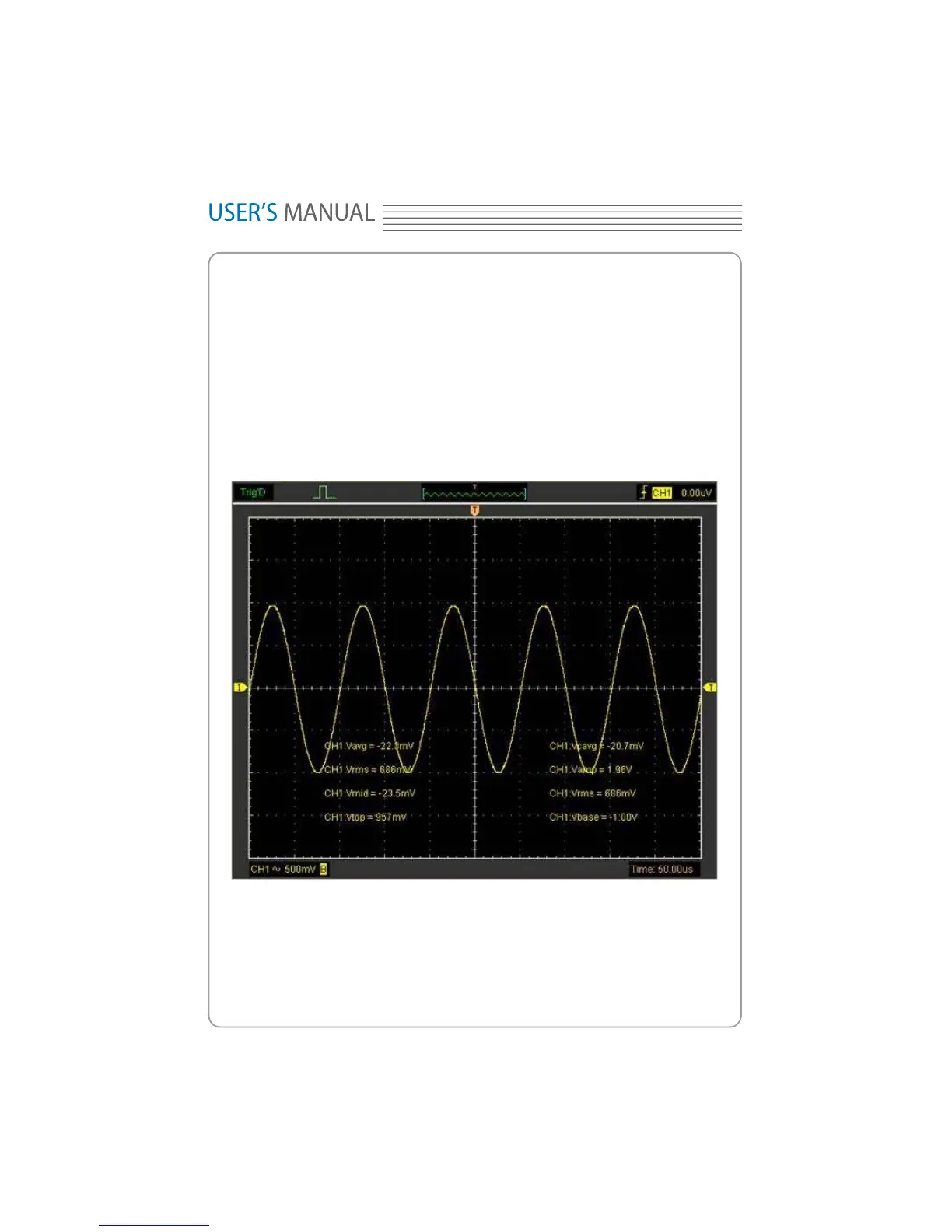

The Measure Display Window
Note:
The results of the automatic measurements will be displayed on the bottom of
the screen. Maximum 8 results could be displayed at the same time. When there is no
room, the next new measurement result will make the previous results moving left, out of
screen.
62
Hantek1008
