Sinθ = A/B or C/D, where θ = phase shift (in degrees) between the two signals.
From the formula above:
θ = ±arcsine (A/B) or ±arcsine (C/D)
If the main axis of the ellipse is between I and III quadrant, θ must be in the range of
(0~π/2) or (3π/2~2π).
If the main axis is at II and IV quadrant, θ must be in the range of (π/2~π) or (π~3π/2).

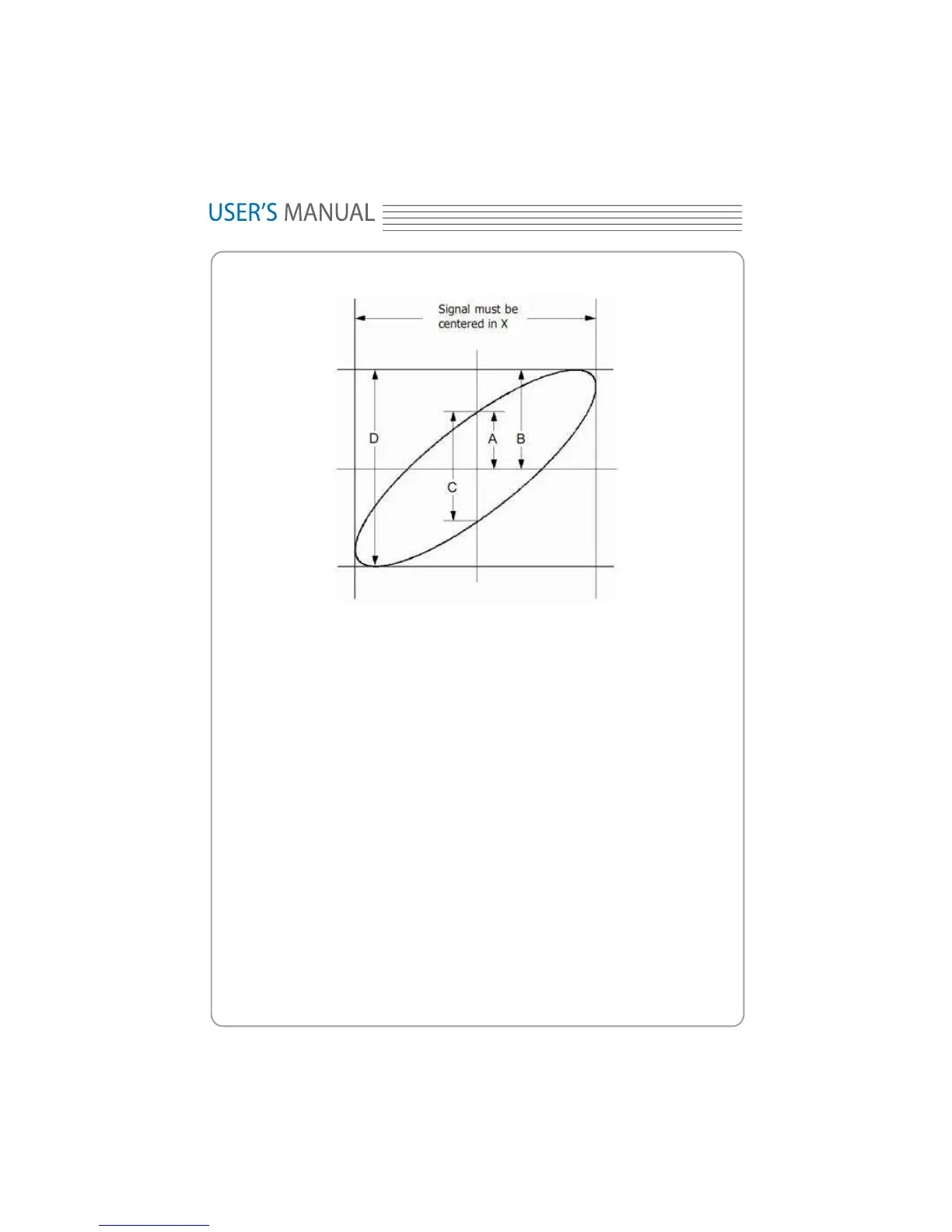

Instruction of the Ellipse Method
76
