Logic Analyzer
Hantek4032L

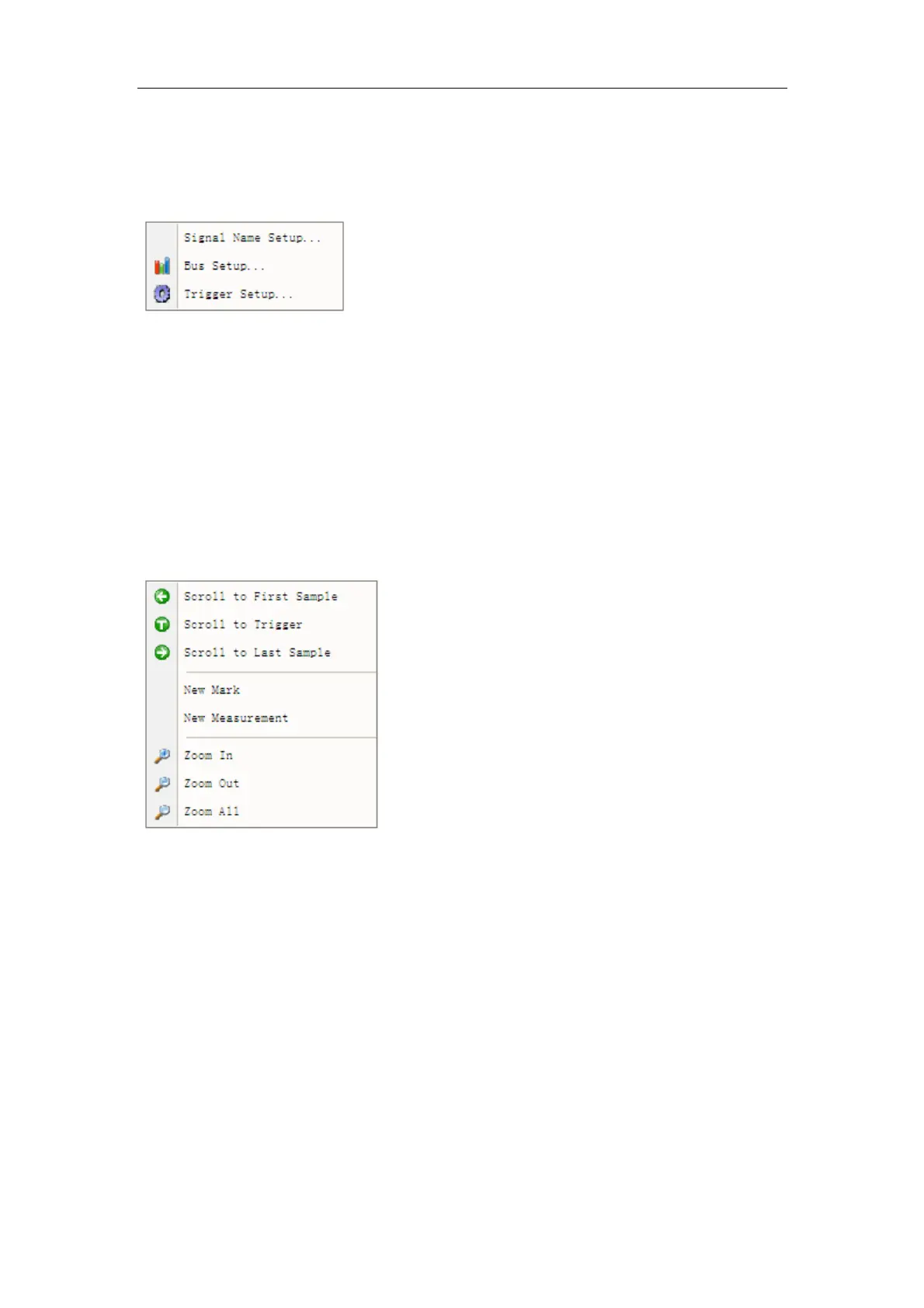

2.3 Setup
z Signal Name Setup: Modify the signal name.
z Bus Setup: Configure the bus and signals.
z Trigger Setup: Configure the trigger condition.
2.4 Analyzer
z Scroll to First Sample: Causes the waveform view to roll to the first
sample position
z Scroll to Trigger: Causes the waveform view to roll to trigger
position.
z Scroll to Last Sample: Causes the waveform view to roll to the last
sample position
z New Mark: Create a new Mark
z New Measurement: Create a new measurement.
z Zoom In: Enlargement waveform view
z Zoom Out: Reduction waveform view
z Zoom All: Show entire waveform view
Users Manual 14
