Logic Analyzer
Hantek4032L

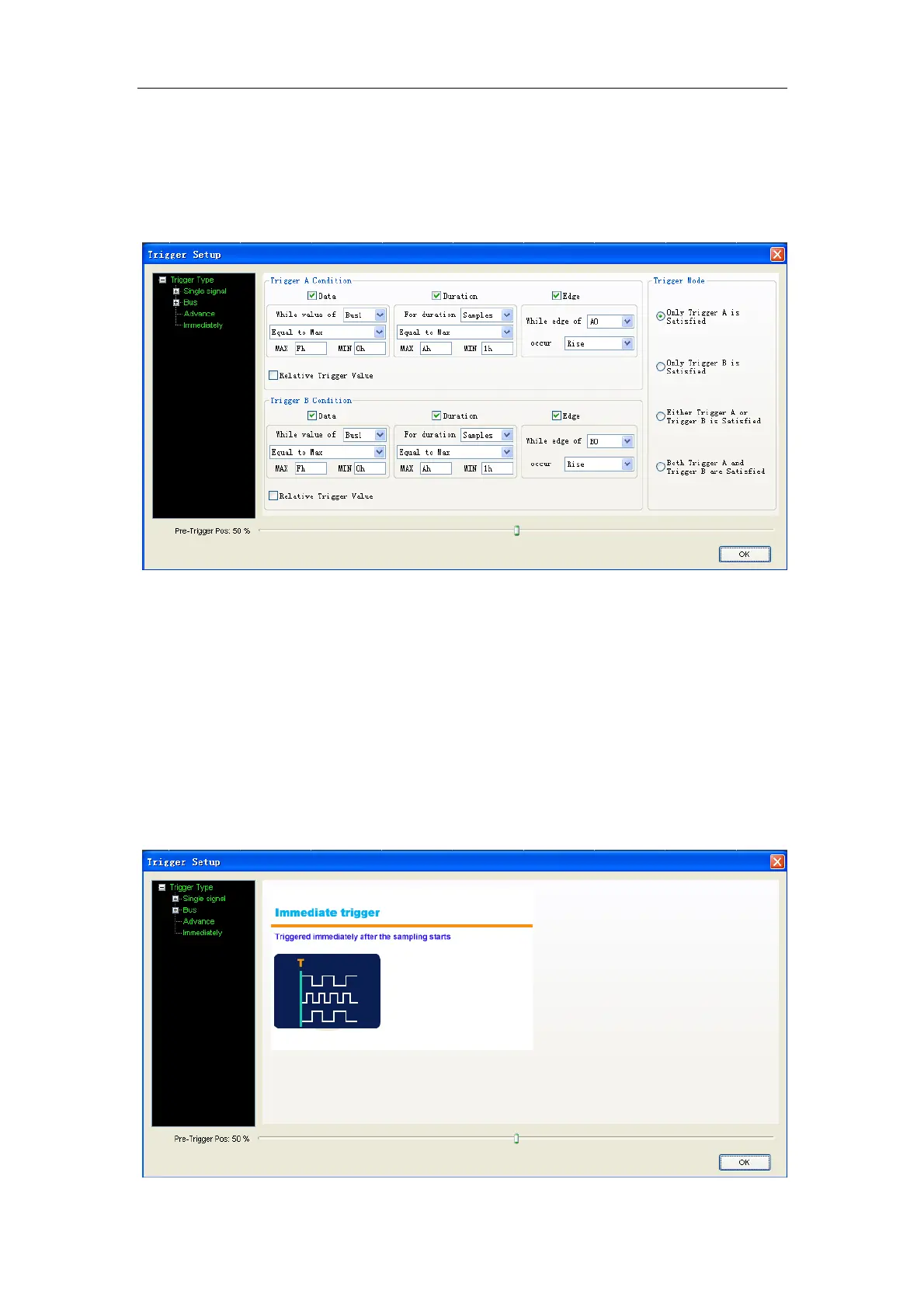

5.2 Advance Trigger Setup
If the base trigger can’t satisfies you, may be you want the advance trigger.
Click the “Advance” in the tree, then you can configure the advance trigger.
There are two trigger conditions: trigger A and trigger B. You can set the
trigger mode by clicking the Trigger Mode group box.
There are four parts in each condition, Data, Duration, Edge and Relative
trigger value.
5.3 Immediately Trigger
Click “Setup -> Trigger Setup” and select Immediately.
Immediately: Triggered immediately after the sampling starts.
User’s Manual 33
