Logic Analyzer
Hantek4032L

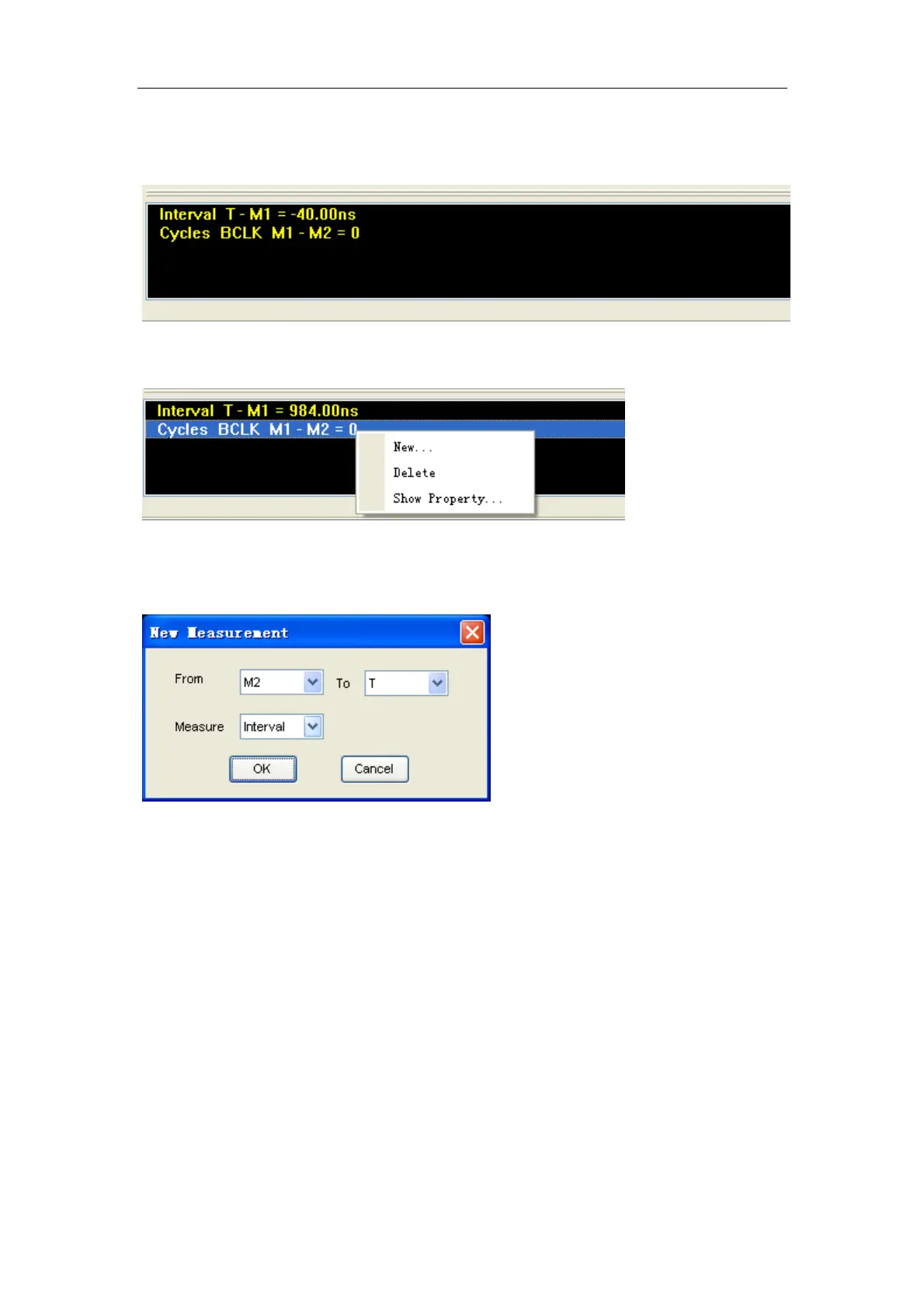

3.4 Measurement Panel
Click the measurement panel with the right mouse button, then the menu
popup.
Click the “New” in the popup menu or “Analyzer”->”New Measurement” in the
main menu, you will add a new measurement to the list in the measurement
panel.
Select the “Measure” combo box. You can modify the types of measurement.
There are 4 types for you, such as Interval, rate, transitions and cycles.
Click the “Delete”; you can delete the measurement item selected in the list.
Click the “Show Property”; you can modify the measurement.
Also, you can click the main menu “Analyzer”->”New Mark” to add new mark
for measurement.
User’s Manual 22
