2.2 Option 2 - Monitoring and Control Solution
Radio sensors transmit to an SR2 or CR2 Controller/Processor/Base Station (Controller).
The Controller sends the data to both a monitoring PC and the MS1000 Control Unit.
The MS1000 Control Outputs are sent to, for example, a Building Management System
(BMS). See Figure 2 below:
 Sensor 1’s output controls Plant A.
 Sensor 2’s output controls Plants B and C.
Note: In some applications, the Controller may be enclosed within the MS1000 Control Unit;
the Controller PCB being either in a separate Control Unit or mounted within the
MS1000’s Control Unit, depending on the exact system supplied.

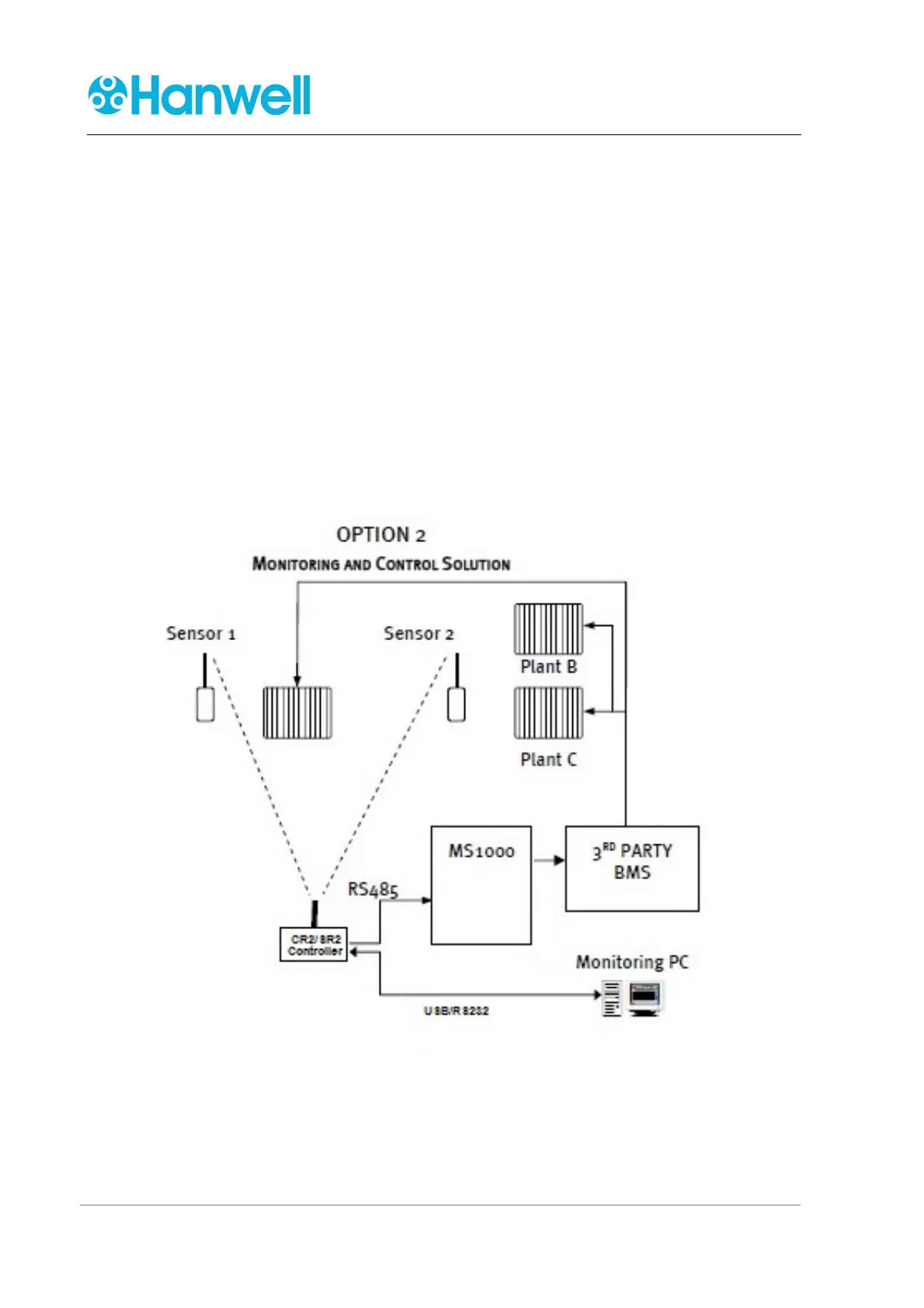

Figure 2 - Monitoring and Control Solution Schematic
