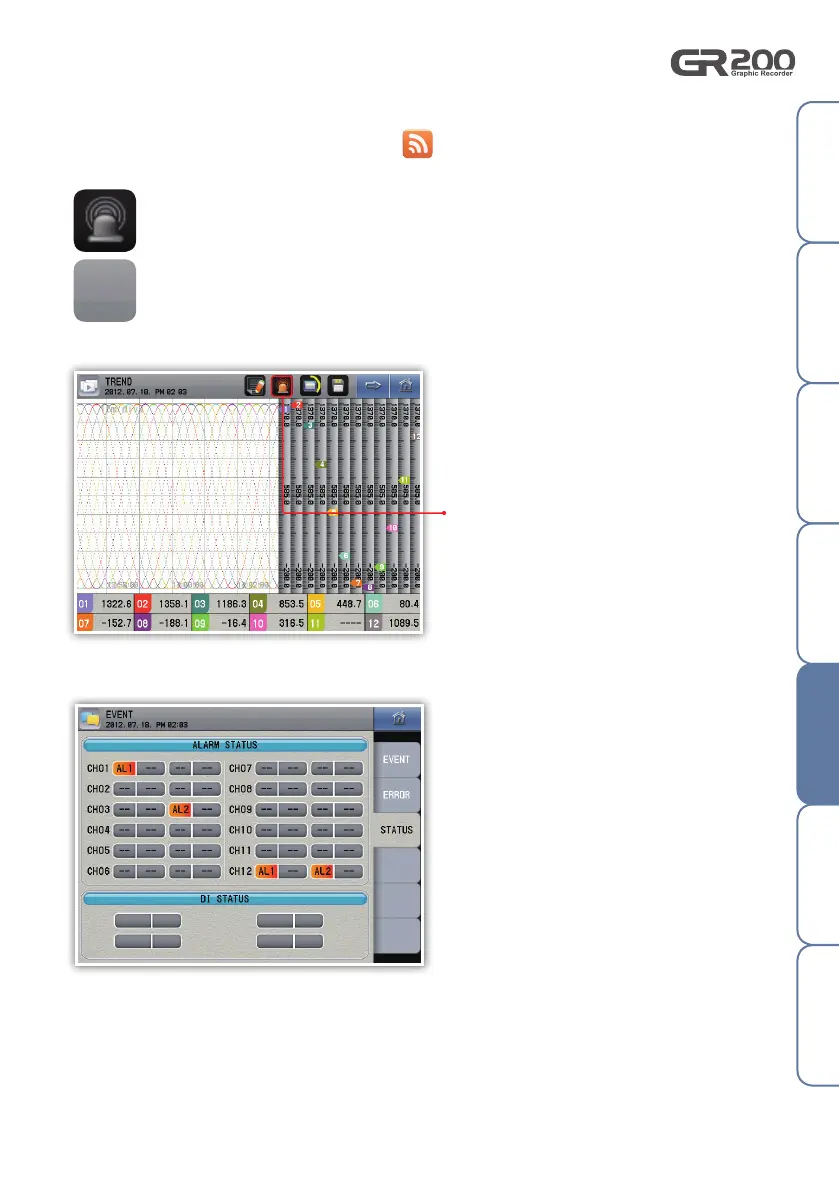

3. Alarm
It is possible to check the alarm on the "Trend", "Digital" or "Bar graph" screen.
The alarm is configured in the "Alarm and DI ".
It is the status without the alarm.
It is the status with the alarm.
Fig. 17) Status window - Alarming
Fig. 18) Print status window
Go to the print status page to show the
activated alarm.
