Graphic Recorder
18
6. Bar graph screen
It is the screen which displays the channel measurement with the bar. The user may
check the levels of all the channels within the displayed range under current configuration
at once. However, the maximum number of displayed channels is 8 and moves each
channel to check the 12 channels.

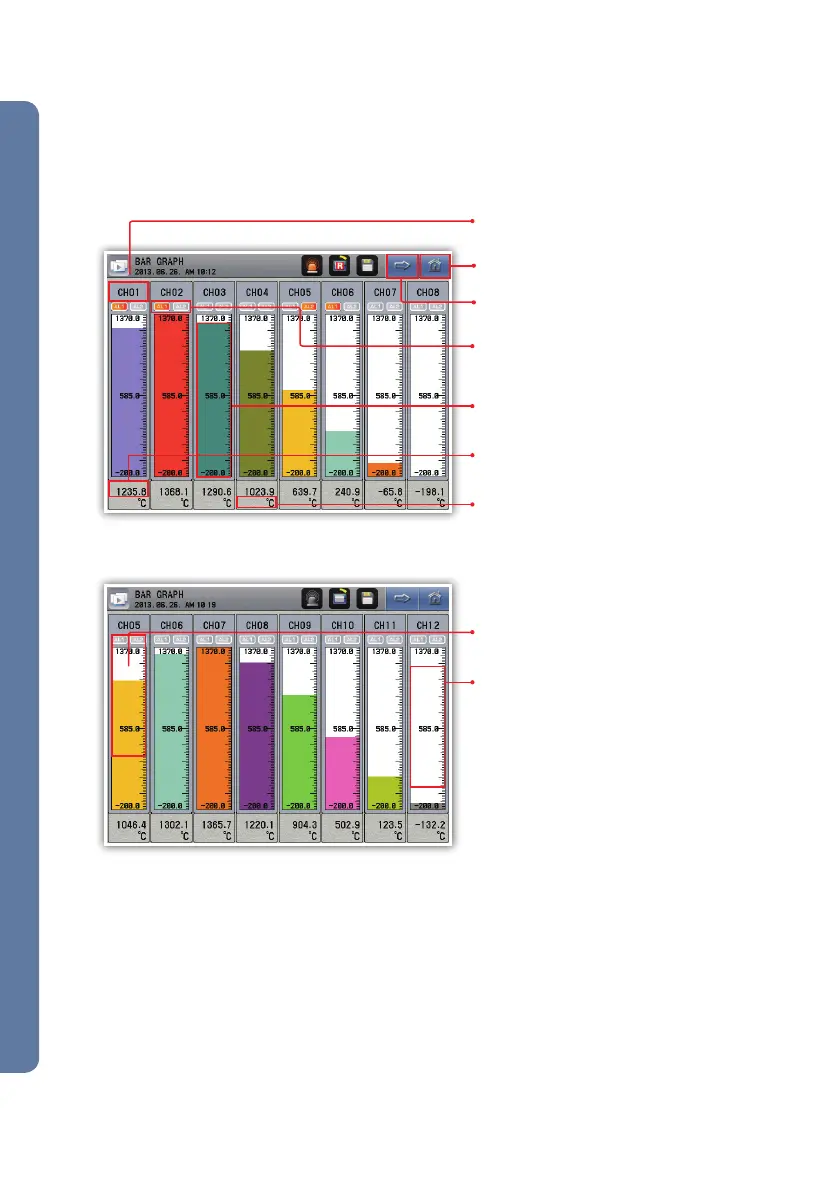

Fig. 24) Bar graph screen
Fig. 25) Bar movement screen
Display the channel number of each bar graph.
The user may not change the channel number.
Display the alarm status and the number of
each channel.
Display the measurement level of each
channel with the bar graph.
Display the measurement of each channel
with the number.
Click to move the bar to the previous
channel.
Click to move the bar to the next channel.
Display the unit configured by the user.
Display U for the user unit.
Go to the menu screen.
Go to the trend screen.
