Adjust the background brightness.
The record keeps when the power turns off and on during the record.
Select the background color of the trend and the view saved history screens.
Configure the data recording period.
It may not be changed during saving.
Configure to turn off the screen after the
configured time. The power-saving function
does not work if the time is configured to 0.
Turn on or off buzzer sound.
Prevent using the buttons except the trend,
digital, bar graph and view history screens.
(Except moving the screen)
Enter the user password to change the touch
lock parameter. The user password may be
changed on the system configuration.
2. Function configuration
▶ Operating configuration
Fig. 30) Trend - Black background Fig. 31) Trend - White background
Parameter Initial value Configuration range
Record interval 1 1, 2, 5, 10, 20, 30, 60, 120 seconds
Adjust the brightness Level 3 Level 8
Power-saving 30 minutes 0 ~ 99 minutes
Restoration from the blackout OFF OFF, ON
Alarm OFF OFF, ON
Background color Black Black, white
Touch lock OFF OFF, ON
[ Operation configuration parameter ]

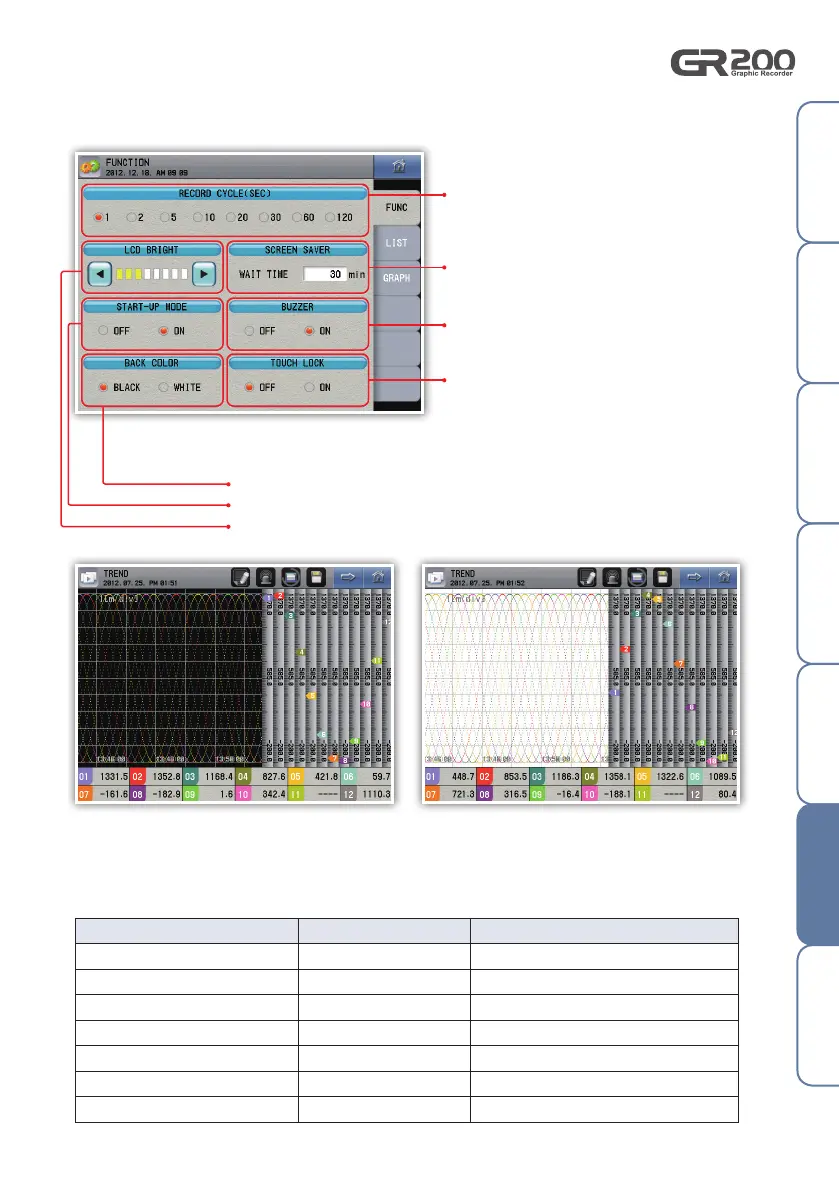

Fig. 29) Operating configuration screen
