▶ Output status

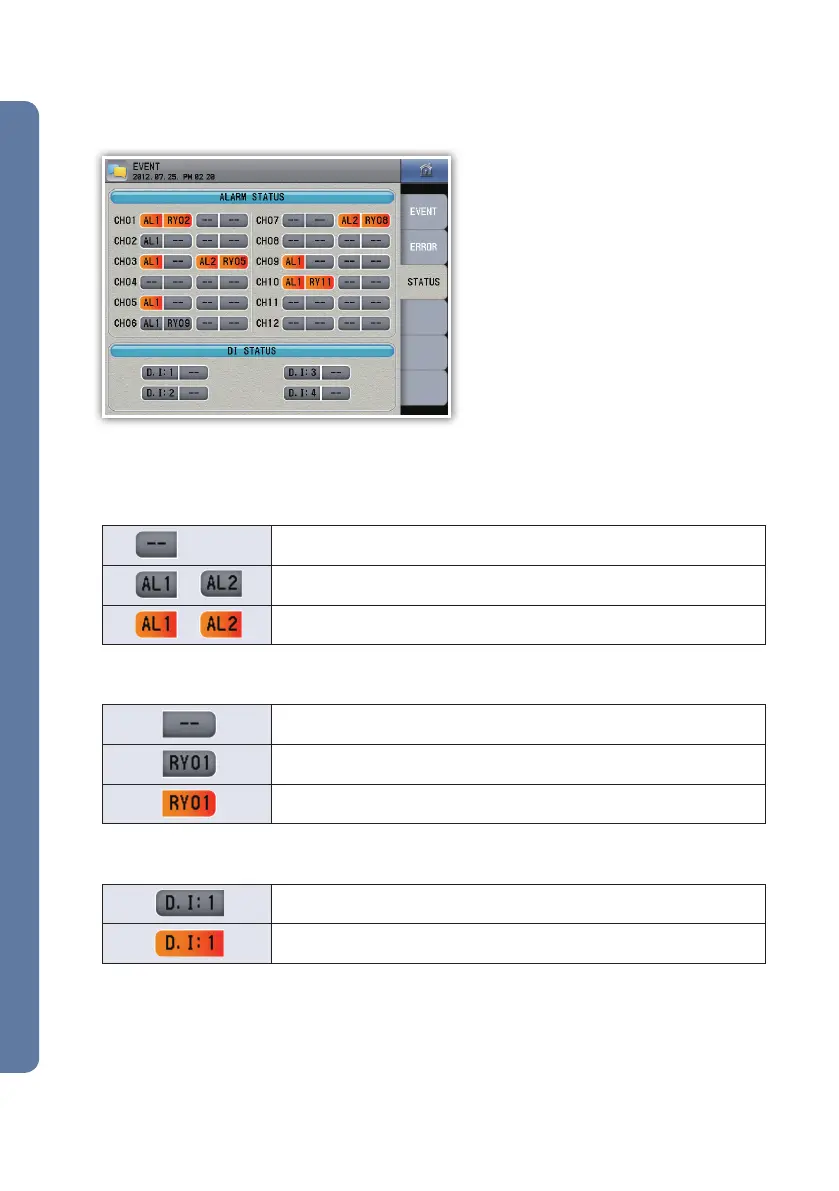

Fig. 53) Output status window
No alarm configuration
Alarm configuration + no alarm activated
Alarm configuration + alarm activated
Not configure the relay
Configure the relay + no relay activated
Configure the relay + relay activated
No DI
With DI
It shows the alarm status.
It shows the relay status.
It shows the status of the DI.
It is the screen which shows the alarm status and the external contact input/output for
each channel.
