HANYOUNG NUX GR200 Series User Manual

7
Before start Installation Operation
Screen block diagram
Operating screen
Configuration screen
Specifications
less than 6 ㎜
More than 3 ㎜
less than 7 ㎜
More than 3.5 ㎜
less than 6 ㎜
More than 3 ㎜
less than 7 ㎜
More than 3.5 ㎜
▶ Input wiring
Use the shield wire for the input wiring and wire with certain intervals from the power
and the ground circuits. Use the RTD sensor as the 3-line sensor with the same
wiring resistor.

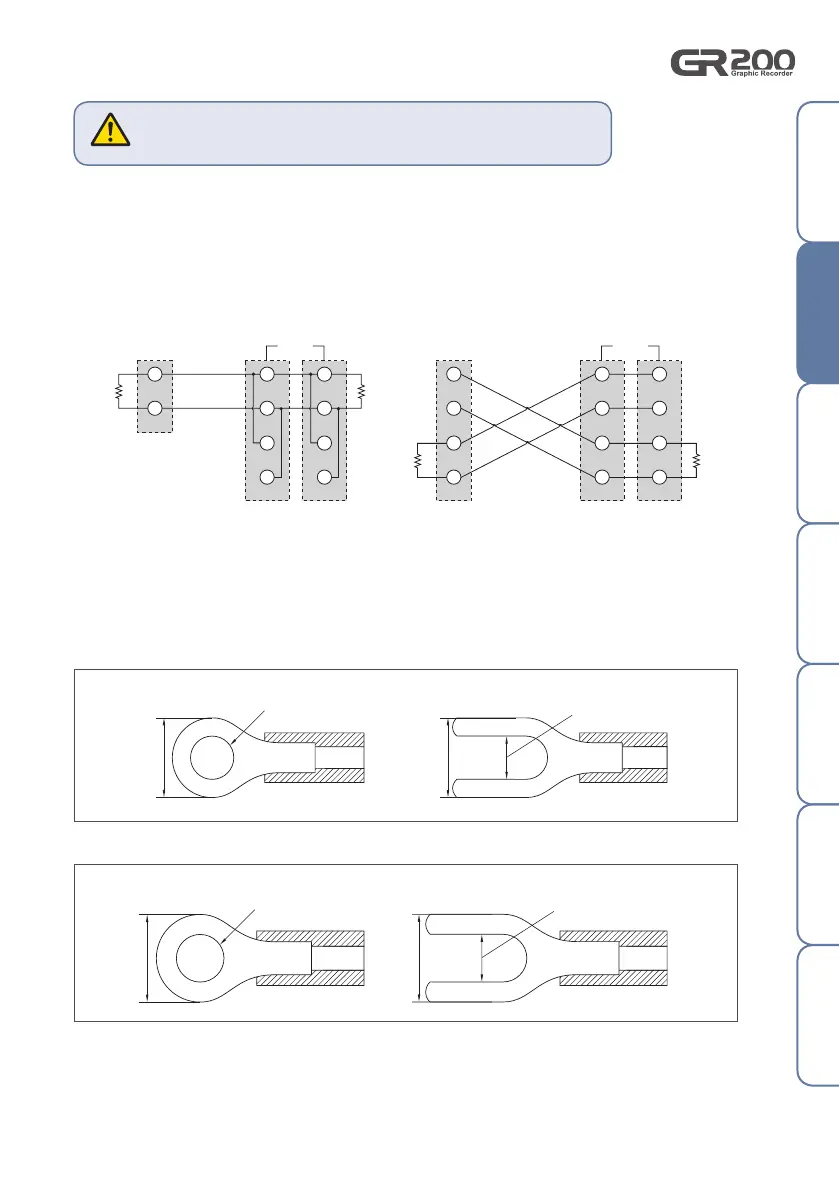

▶ Communication wiring
▶ Terminal specification
Connect the terminating resisters (100 - 200 Ω, 0.25 W) at both ends of the communication line.
Fig. 3) Communication wiring
[ 2-line connection ] [ 4-line connection ]
Fig. 4) Compressing terminal
Input / output - M3 Screw
Caution
RTX+
Terminal
resistor
Terminal
resistor
Master
GR200
RTX-
TX+
TX-
RX+
RX-
TX+
TX-
RX+
RX-
TX+
TX-
RX+
RX-
Terminal
resistor
Terminal
resistor
Master
GR200
TX+
TX-
RX+
RX-
TX+
TX-
RX+
RX-
Communication / power - M3.5 Screw
less than 6 ㎜
More than 3 ㎜
less than 7 ㎜
More than 3.5 ㎜
less than 6 ㎜
More than 3 ㎜
less than 7 ㎜
More than 3.5 ㎜
