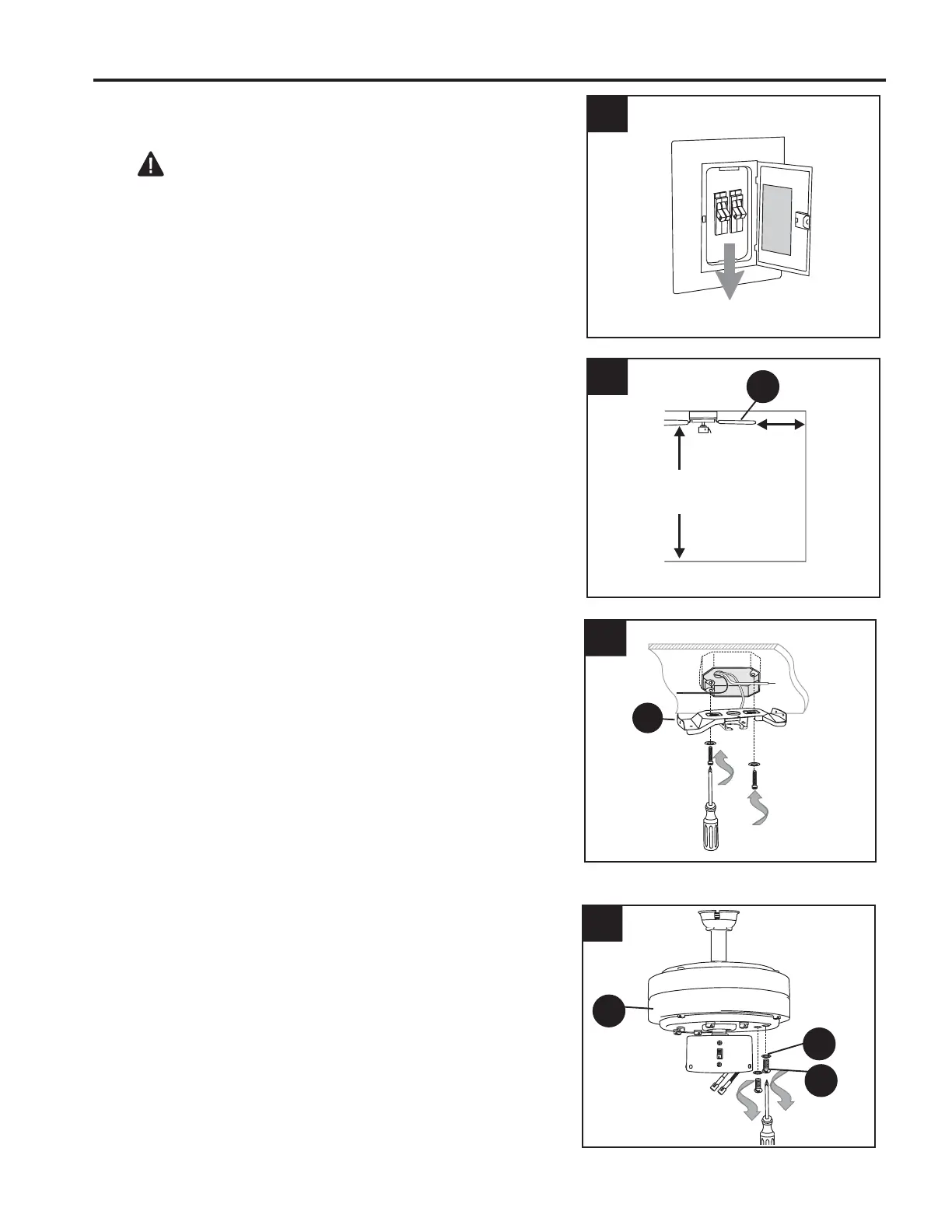

INITIAL INSTALLATION
Check to make sure blades (G) are at least 30 in.
from any obstruction and at least 7 ft. above the
floor. (Fig. 2)
Turn off circuit breakers and wall switch to the
fan supply line leads. (Fig. 1)
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
2.
3.
4.
Secure mounting bracket (A) to outlet box
using screws, spring washers, and flat
washers provided with the outlet box. (Fig. 3)
Pull wires from outlet box through center hole
in mounting bracket (A).
*Note: It is very important that you use the
proper hardware when installing the mounting
bracket (A) as this will support the fan.
1
ON
OFF
ON
OFF
3
J
2
G
7 ft.
min.
30 in.
min.
A
4
O
N
C
Remove motor screws (N) and lock washers
(O) from underside of motor and save for
blade arm (J) attachment later on. [If there are
plastic motor blocks installed with the motor
screws (N) and lock washers (O), discard the
plastic motor blocks.] (Fig. 4)
