WIRING
WARNING: To reduce the risk of fire, electrical
shock, or personal injury, wire connectors provided
with this fan are designed to accept only one 12
gauge house wire and two lead wires from the fan. If
your house wire is larger than 12 gauge or there is
more than one house wire to connect to the two fan
lead wires, consult an electrician for the proper size
wire connectors to use.
CAUTION: Be sure outlet box is properly
grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors
than referred to in the following steps, stop
immediately. A professional electrician is
recommended to determine wiring.
7
6.

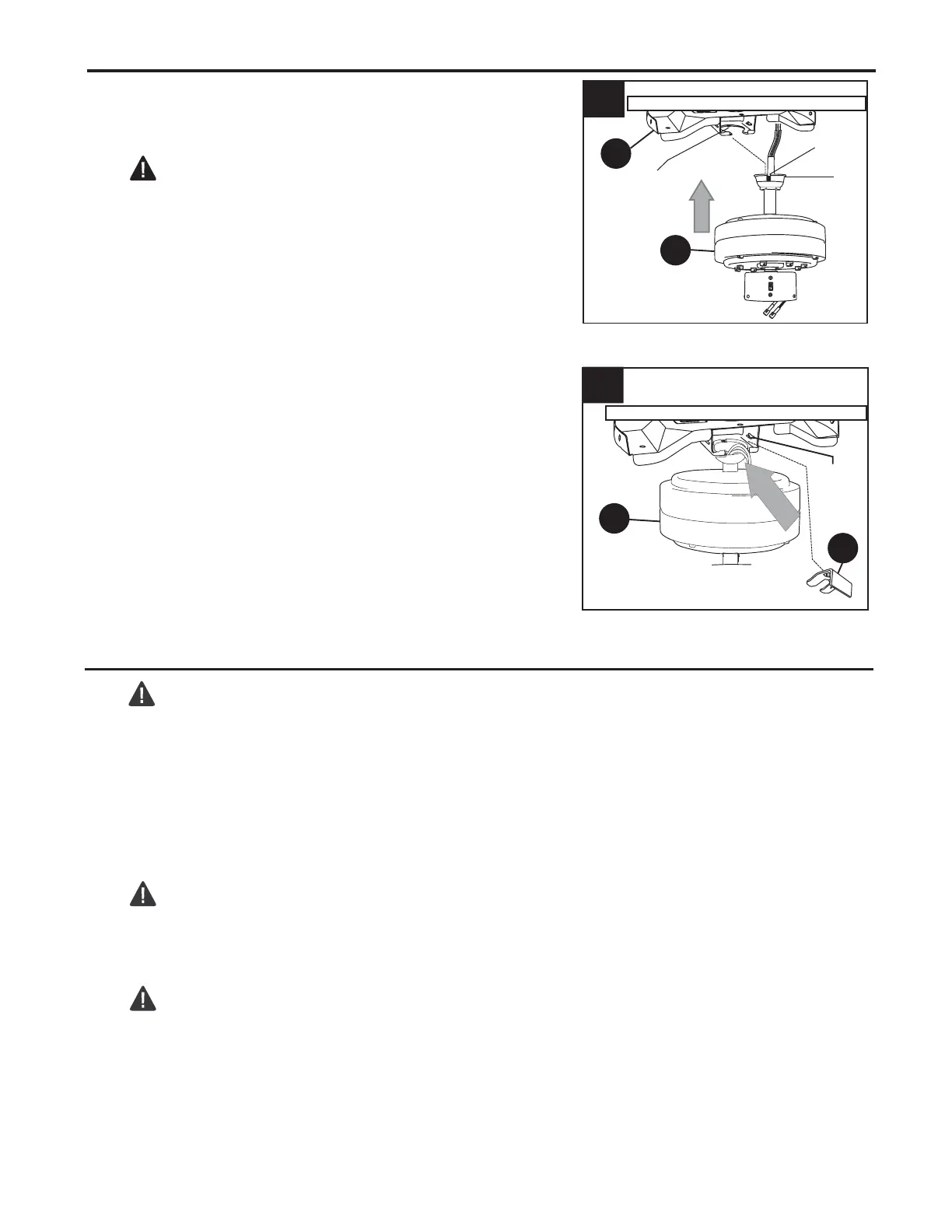

INITIAL INSTALLATION
Install ball end of motor assembly (C) into
mounting bracket (A) opening. Align slot in ball
with tab in mounting bracket (A). (Fig. 5)
DANGER: Failure to align slot in ball with
tab in mounting bracket (A) may result in serious
injury or death.
5.
To ensure the safety of the installation and to
prevent the motor assembly (C) from becoming
or coming loose, use the plastic lock tab (L).
Slide plastic lock tab (L) under bracket tabs so
that it will snap into place. (Fig. 6)
IMPORTANT: Keep in mind that it will require
some force to fully insert the plastic lock tab
(L) so that it does not move or come out once
in the correct position.
A
Tab
C
Ball
Slot
5
C
L
Bracket
Tab
6
To Next Page
