12

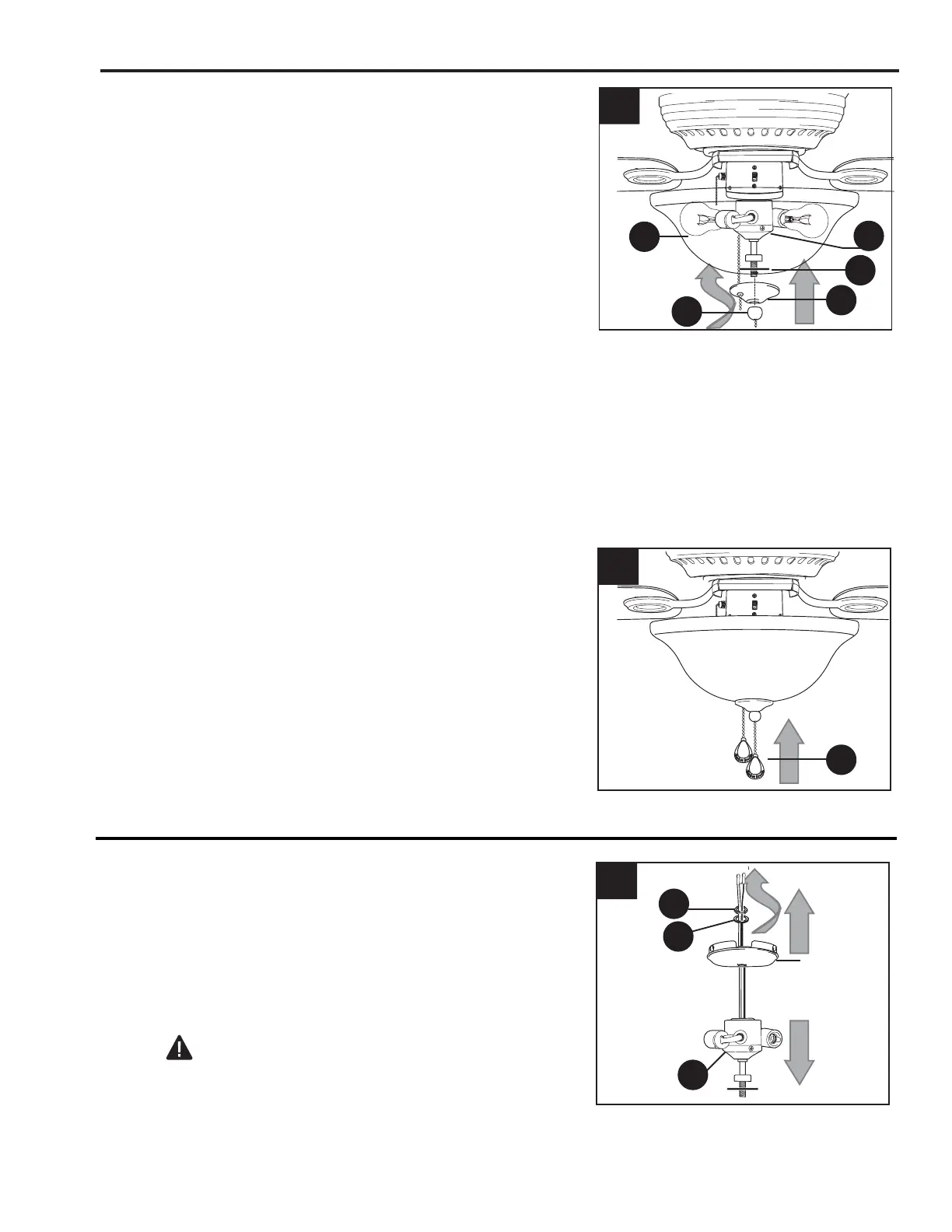

FINAL INSTALLATION
Attach pull chain extensions (F) supplied in one of
the hardware packs or custom pull chain
extensions (sold separately) to fan and light pull
chains. (Fig. 9)
Locate rubber washer (T), finial plate (H), and
finial (I) that were removed in Step 4. Place
rubber washer (T) inside glass shade (E) over
center hole. Raise glass shade (E) in order to
guide pull chains through corresponding holes at
the bottom of the glass shade (E). Align hole in
center of glass shade (E) with threaded rod on
light kit fitter (D) and push up gently until
threaded rod comes through hole. (Be sure pull
chain for fan operation does not rub against
bulbs during operation.) (Fig. 8)
Align hole in center of finial plate (H) with
threaded rod, allowing the pull chains to come
through appropriate holes in finial plate (H) and
push up. Thread center pull chain through hole in
finial (I) and secure glass shade (E) by tightening
finial (I). (Fig. 8)
Note: Do not overtighten finial (I) as glass may
crack or break.
8.
9.
INSTALLING FAN WITHOUT INCLUDED LIGHT KIT (OPTIONAL)
If you do NOT wish to use the light kit,
remove the hex nut (P) and lock washer (Q)
from the threaded rod at the top of the light kit
fitter (D). Unscrew the switch housing cap to
remove it from the light kit fitter (D), and then
gently feed the BLACK and WHITE wires from
the light kit fitter (D) through the hole in the
middle of the switch housing cap. (Fig. 1)
CAUTION: RISK OF SHOCK, The molex
safety caps should not be removed unless a
light kit will be immediately installed and that
power should be turned off prior to molex
safety cap removal and light kit installation.
1.
T
H
D
I
E
8
9
F
Switch
Housing
Cap
WHITE
BLACK
D
P
Q
1
To Next Page
