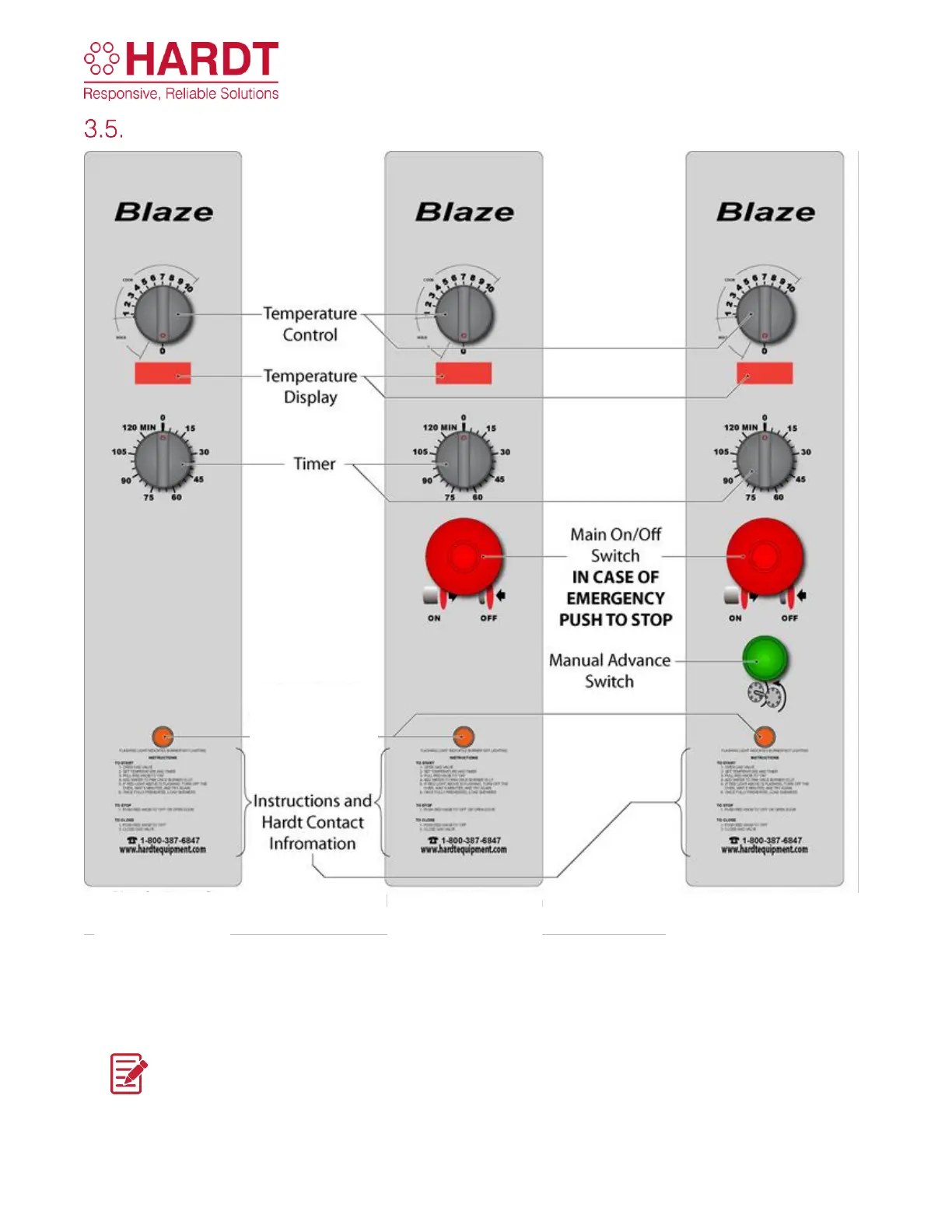

Control Panel Layout

Figure 3-5

The red main ON/OFF switch and the green manual advance switch for the single and double-

stacked French door rotisseries can be located on the front of each rotisserie as shown in Figure

3-2 on page 7 and in Figure 3-4 on page 9.

SINGLE FRENCH

DOOR

ROTISSERIE

DOUBLE-STACKED

FRENCH DOOR

ROTISSERIE

SINGLE & DOUBLE-

STACKED FRENCH

DOOR ROTISSERIE

SLO

(SAFETY LOCKOUT)

ALARM LAMP (RED)
