DB1514A
Datasheet AT1514AF-00
16. Sep. 2010
2 of 10

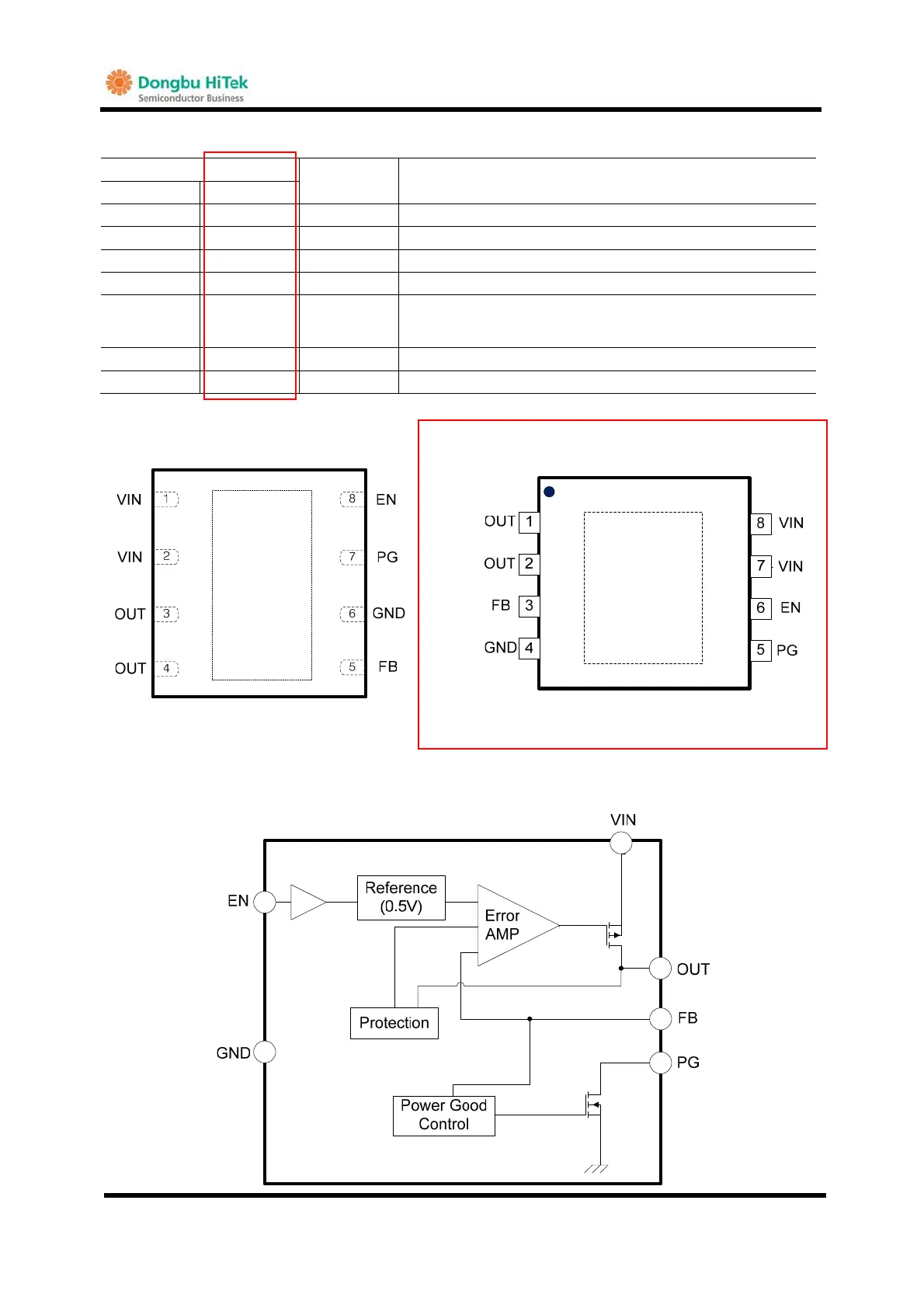

PIN DESCRIPTION
PIN NO
SYMBOL
DESCRIPTION
8-TDFN 8-SOP-EP
7 5 PG Open Drain Power-Good (PG) Output.
8 6 EN Enable Input.
1,2 7,8 VIN Input Supply Voltage Pin.
3,4 1,2 OUT Output pin
5 3 FB
Feedback Pin. Connect to output through a voltage-divider to set
the output. Recommended that the tolerance of feedback
resistors is below 1%.
6 4 GND Ground Pin
EP EP Exposed pad Should be connected to GND for Heatsink.
PIN CONFIGURATION
TOP VIEW
G
8-TDFN(3x3) 8-SOP-EP
BLOCK DIAGRAM
G
