Harman Kardon AVR 151/230C - ML61 Series Positive Voltage Detector; Application

ML61
ML61 Series Positive Voltage Detector
  Application
 Memory Battery Back-up Circuits
 Microprocessor Reset Circuitry
 Power Failure Detection
 Power-on Reset Circuit
 System Battery Life and Charge Voltage
Monitor
Features
z CMOS Low Power Consumption : Typical 1.0uA at
Vin=2.0V
z Selectable Detect Voltage : 1.1V to 6.0V in 0.1V increments
z Highly Accurate : Detect Voltage 1.1V to 1.9V +
3%
Detect Voltage 2.0V to 6.0V +
2%
z Operating Voltage : 0.8V to 10.0V
z Package Available : SOT23 (150mW), SOT89 (500mW)
& TO92 (300mW)




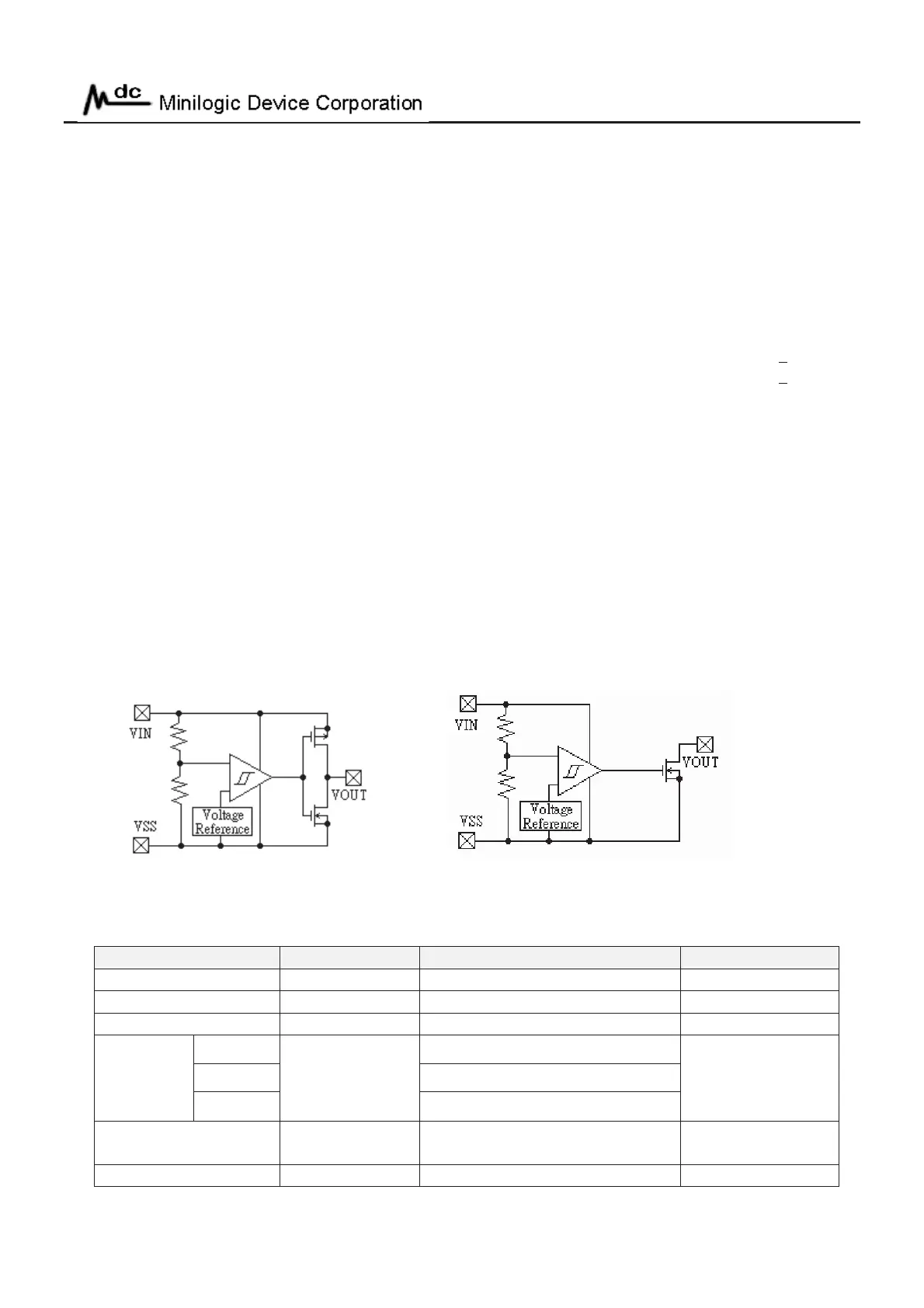

Block Diagram
(1) CMOS Output (2) N-Channel Open Drain Output
General Description
The ML61 is a group of high-precision and low-power voltage detectors.
The ML61 consists of a highly-accurate and low-power reference voltage source, a comparator,
a hysteresis circuit, and an output driver. Detect voltage is very accurate and stable with
N-channel open drain and CMOS, are available.
A
bsolute Maximum Ratin
g
s
P1/14
Parameter Symbol Ratings Units
Input Voltage VIN 10 V
Output Current IOUT 50 mA
Output Voltage VOUT VSS-0.3 ~VIN+0.3 V
SOT-23 150
SOT-89 500
Continuous
Total Power
Dissipation
TO-92
Pd
300
mW
Operating Ambient
Temperature
T
opr -40 ~ +70
o
C
Storage Temperature Tstg -40 ~ +70
o
C
Harman Kardon
A
VR 151 Service Manual
Page 94 of 131
