13
AVR
ENGLISH
Making Connections
Making Connections
CAUTION: Before making any connections to the audio/video receiver, ensure
that the AVR’s AC cord is unplugged from the AC outlet. Making connections
with the receiver plugged in and turned on could damage the speakers.
Connect Your Speakers
After you have placed your loudspeakers in the room as explained in Place Your Speakers,
on page 10, connect each speaker to its color-coded terminal on the AVR as explained

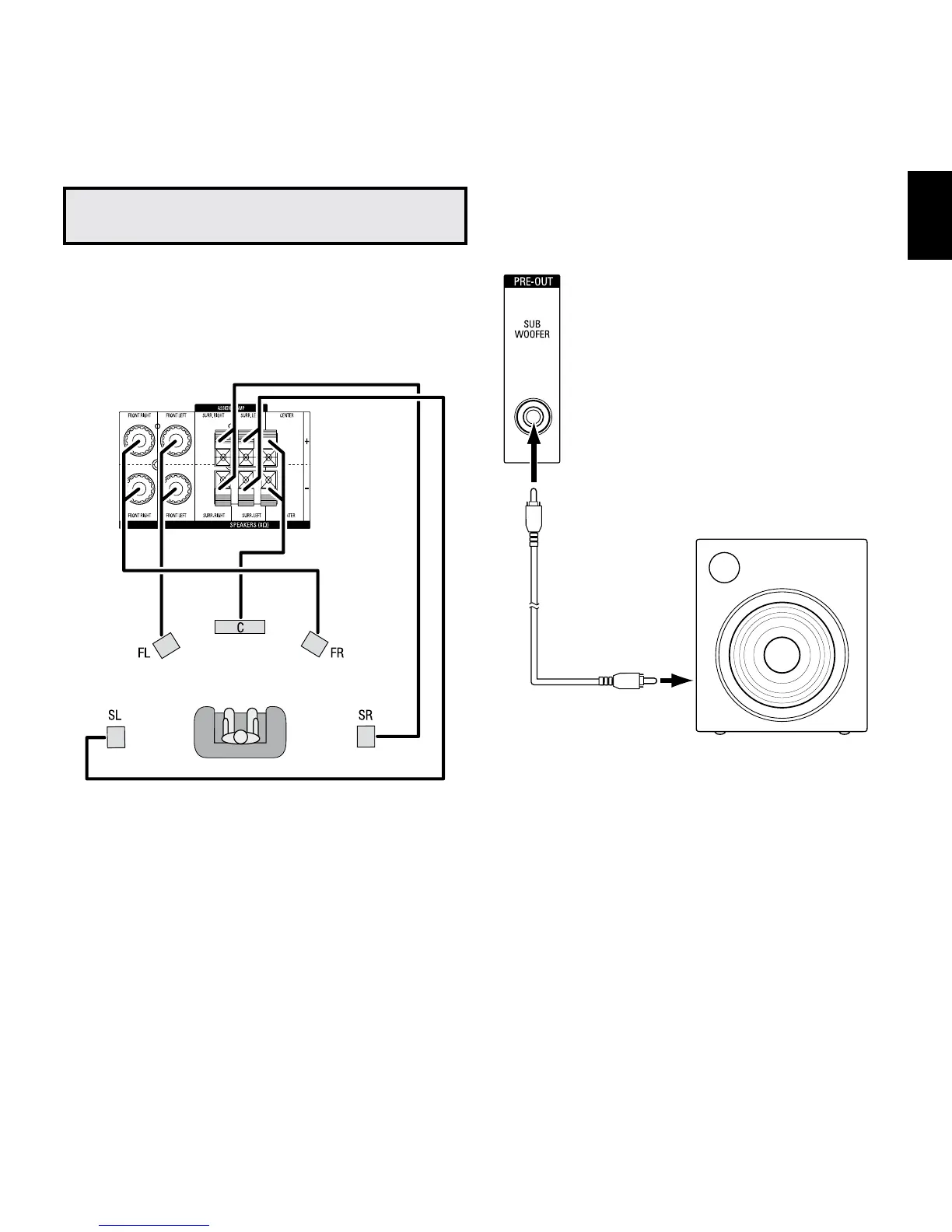

in Speaker Connections, on page 11. Connect the speakers as shown in the illustration.
Connect Your Subwoofer
Use a single RCA audio cable to connect the AVR’s Subwoofer connector to your subwoofer
as explained in Subwoofer Connections, on page 11. Consult your subwoofer’s user
manual for specific information about making connections to it.
Single
RCA Audio
Cable
(not supplied)
Powered
Subwoofer
AVR Subwoofer
Connection
