Chapter 2: Installation
2. Place a jumper on pins 1 and 2 to set the module for Remote control
or pins 2 and 3 to set the module for Local control. See Figure 2-2.
The white triangle near the jumper pins on the module indicates pin
1.

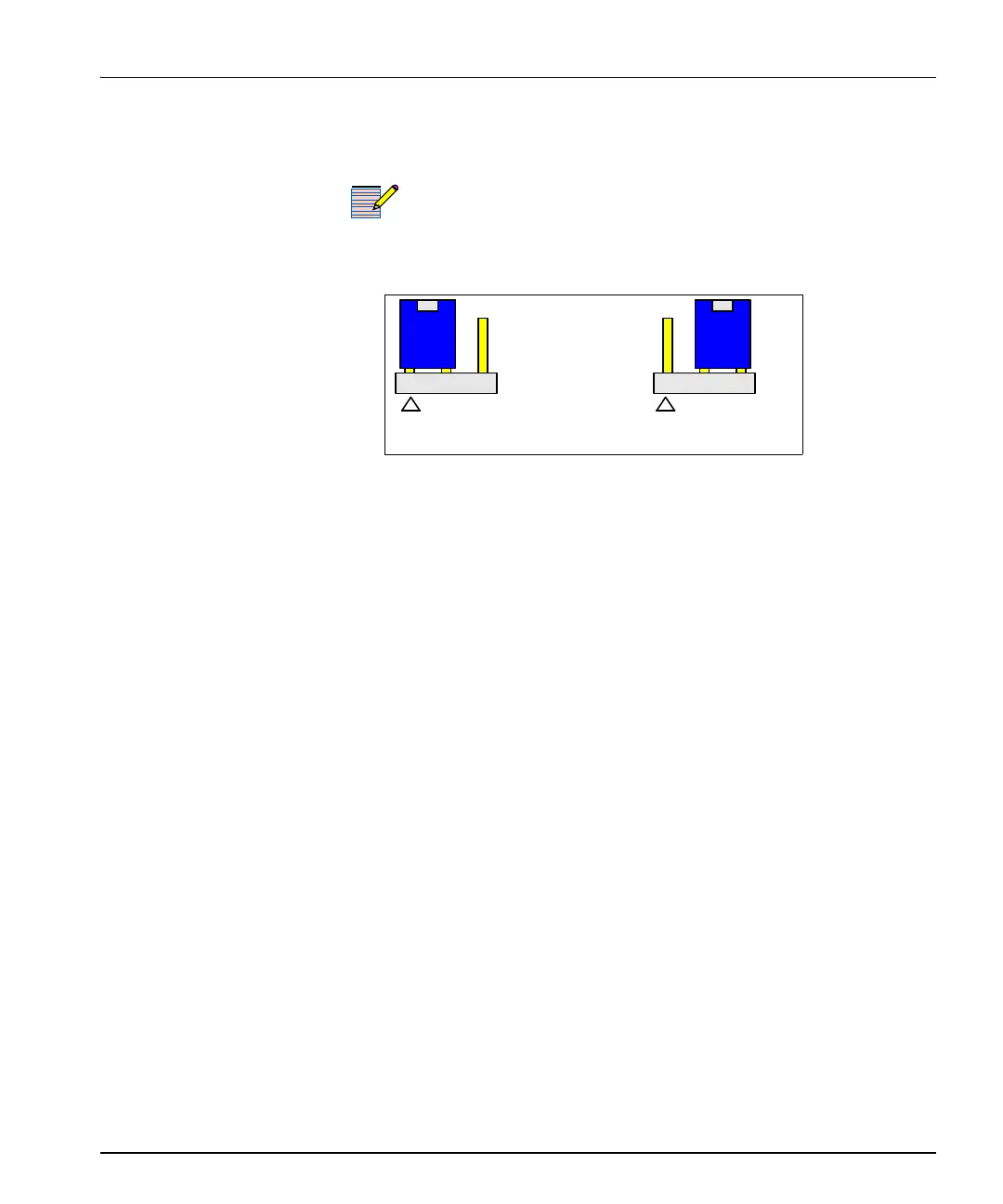

Figure 2-2. REM/LOC Settings for Remote and Local Control
See Table 1-1 on page 5 for more information on local/remote control
jumper functionality.
Remote control setting
Local control setting
