HFS6801+ Installation and Operation Manual35
Chapter 3: Operation
LEDs and Alarms
Monitoring LEDs
The HFS6801+ has 9 monitoring LEDs that serve as a quick
monitoring reference. Figure 3-1 shows the general location of the
monitoring LEDs on a generic 6800+ module. The table that follows,
Table 3-5, describes each LED in more detail.

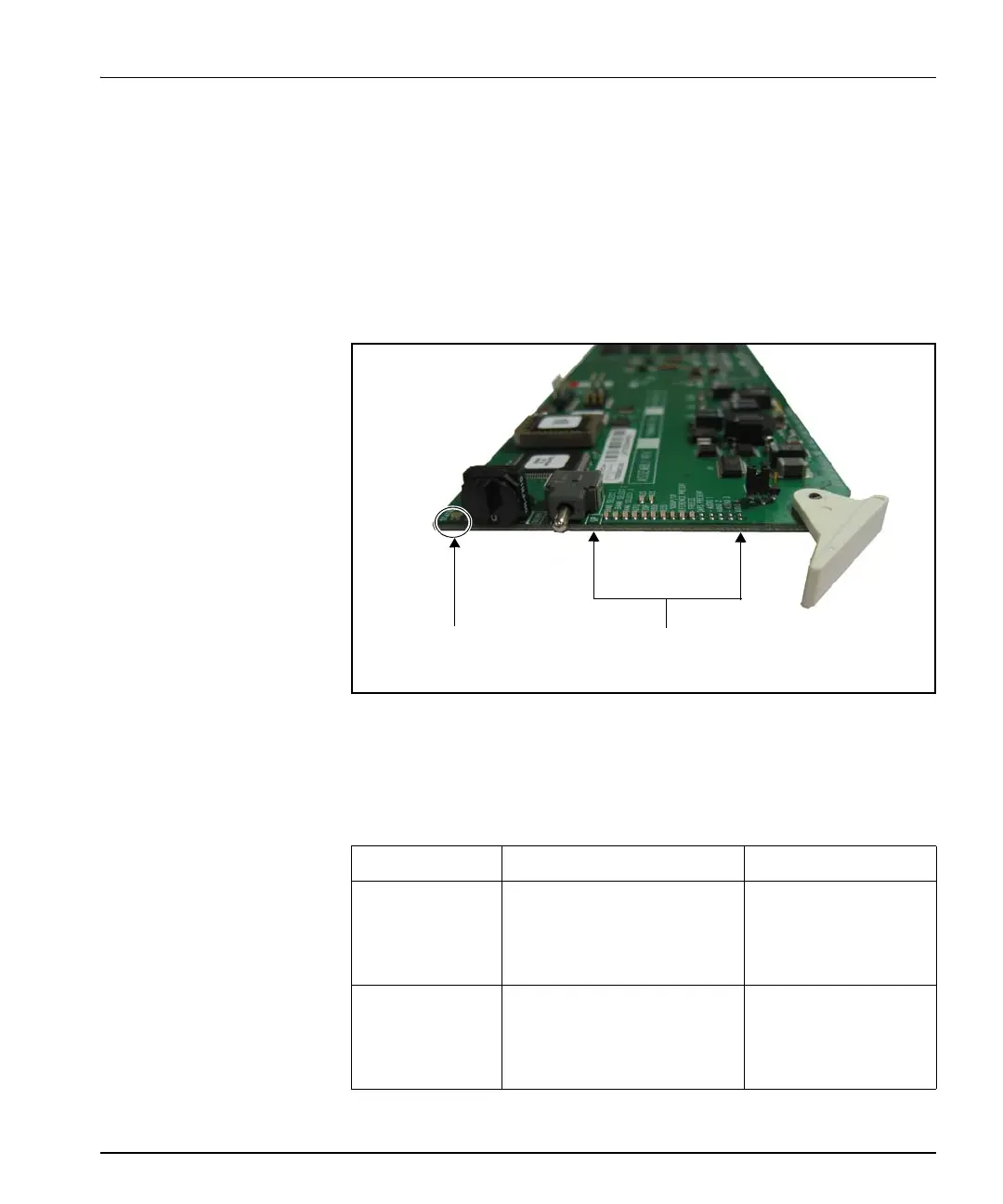

Figure 3-1. Location of Card-Edge LEDs
The 9 monitoring LEDs on the card-edge of HFS6801+ modules are
identified in Figure 3-1 (left to right).
Table 3-5. Monitoring LEDs
LED Description Color Indication
Auto Indicates if auto detection of
the input video signal is
activated
• GREEN: Auto
detect enabled
• OFF: Auto detect
disabled
720P Indicates if a 720P video
source is present
• GREEN: 720P video
present
• OFF: 720P video not
present
Monitoring LEDs
Module status LEDs
