12 HFS6801+ Installation and Operation Manual
Chapter 2: Installation
Setting Jumpers
The HFS6801+ module has one standard jumper for remote or local
control. Figure 2-1 shows the location of the REM/LOC jumper.

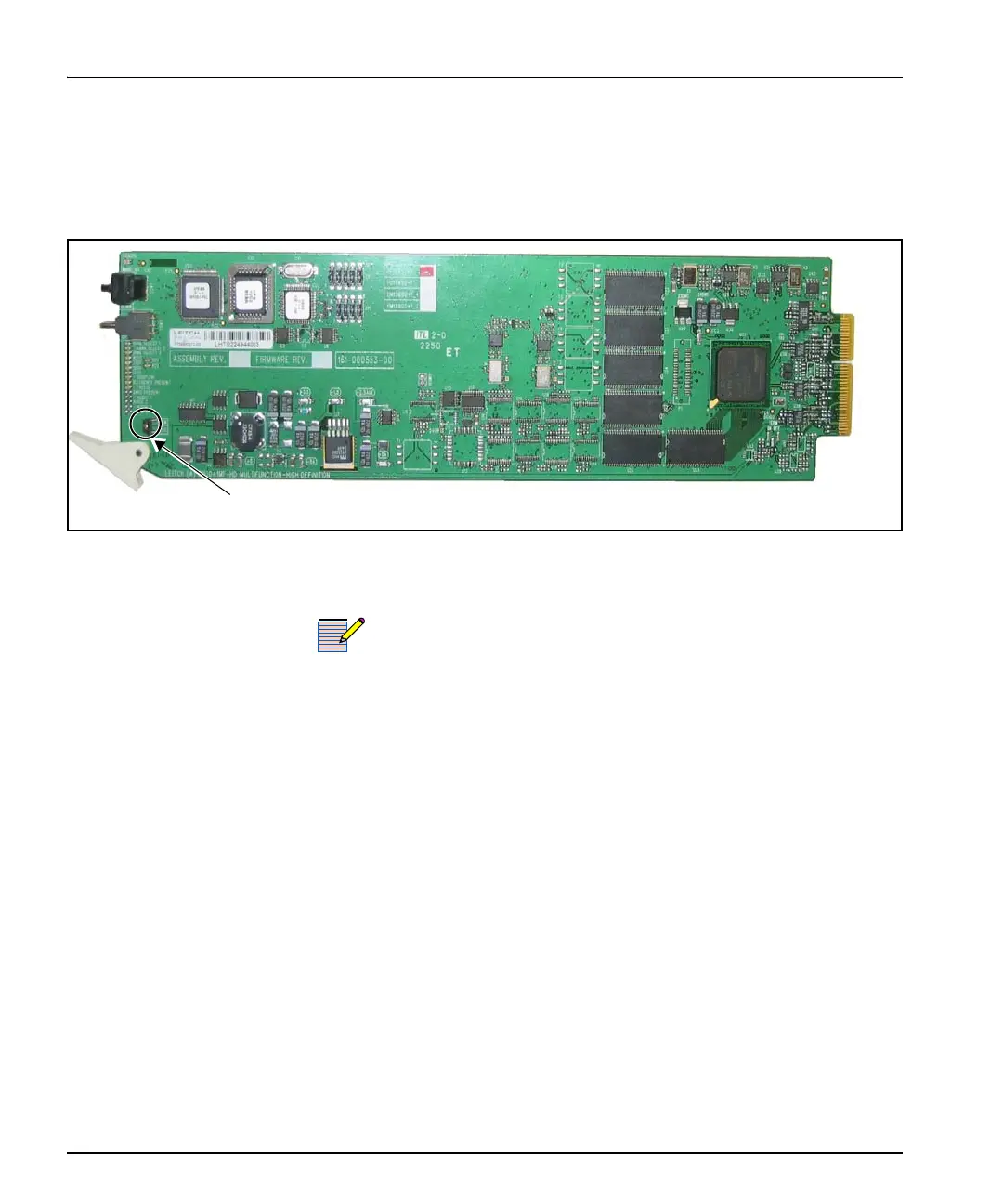

Figure 2-1. Location of the REM/LOC Jumper
You need to configure modules for local or remote operation prior to
power-up. To change the configuration, first remove power from the
module, reset the jumper, and then reapply power.
Follow this procedure to set the REM/LOC jumper for either remote or
local control:
1. Locate the REM/LOC control jumper on the module (beside the
extractor handle).
Figure 2-1 shows the standard location of the REM/LOC jumper.
REM/LOC jumper
Remote/local
