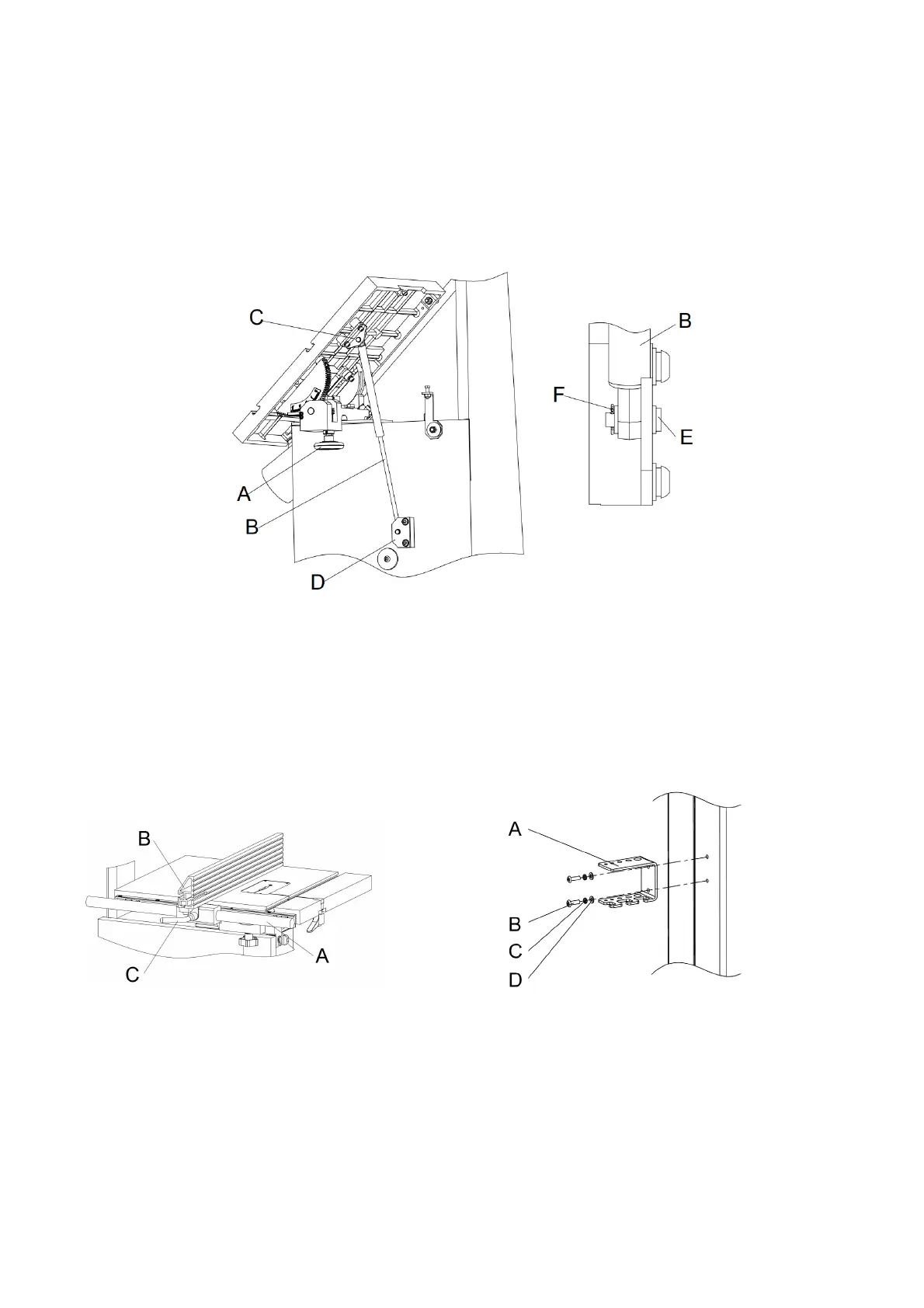

5.3 Spring Assembly (Figure 5.)
1. Rotate the hand wheel (A) to tilt the table to 45°.
2. Attached the spring (B) to the mounting bracket on the bottom of the work table (C) and
the back of the frame (D).
3. Insert the shafts (E) through the holes on the brackets on each end of the spring (B).
4. Insert the split pin (F) through the holes on the shafts and bend the split pins to prevent
them from dropping.
Fig. 5
5.4 Rip Fence (Figure 6.)
1. Rail (A) is pre-installed and adjusted on the work table.
2. Mount the rip fence (B) on the rail.
3. Make sure the fence can move freely along the rail.
4. Tighten the locking handle(C).
Fig. 6 Fig. 7
5.5 Tool Storage Hook (Figure 7.)
1. Install the tool storage hook (A) to the frame by screws (B), spring washers(C) and the
flat washer (D).
2. Insert the hex wrenches in the hook.
