5.6 Blade

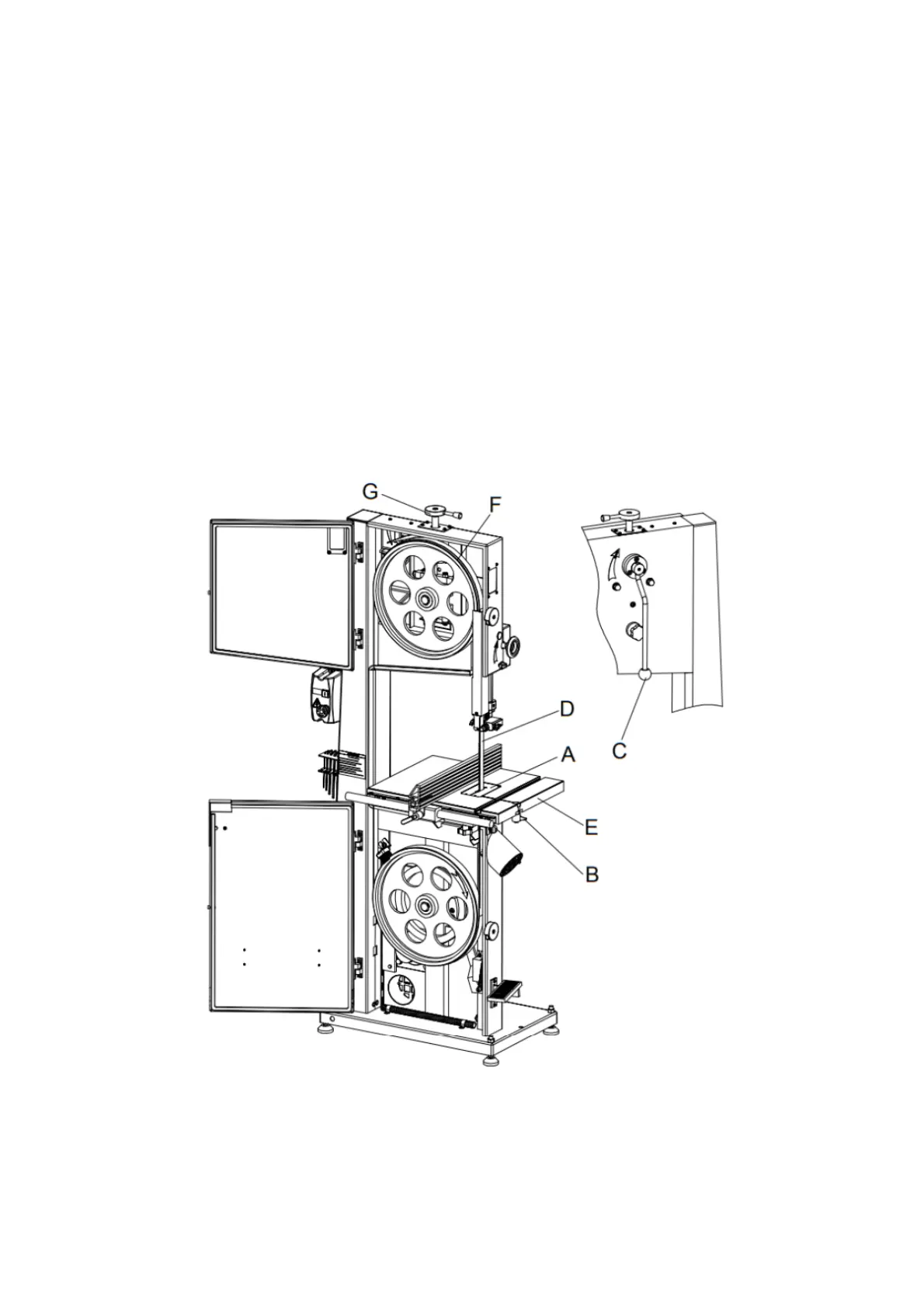

Refer to Figure 8.
1. Remove the table insert (A), loosen the locking handle (B) and remove it from the work
table.
2. Release the blade tension lever (C) and then open the upper and lower doors.
3. Slide the blade (D) through the split on the table (E) and the frame (F).
4. Mount the blade to the upper and lower wheel (G) and place the blade in the upper and
lower blade guides.
5. Tighten the blade with the tension lever.
6. Re-install the table insert (A) and the locking handle (B).
Fig. 8
