4
4. Unpacking and Setup
The machine is shipped completely in one carton.
4.1 Unpacking
Remove all of the contents from the shipping carton. Do not discard any shipping material
until the band saw is fully assembled and running satisfactorily.
4.2 Checking Contents
Inspect the contents for shipping damage. Report any damage immediately to your
distributor and shipping agent. Compare the contents of the shipping carton with the
contents list in this manual. Report shortages, if any, to your distributor.

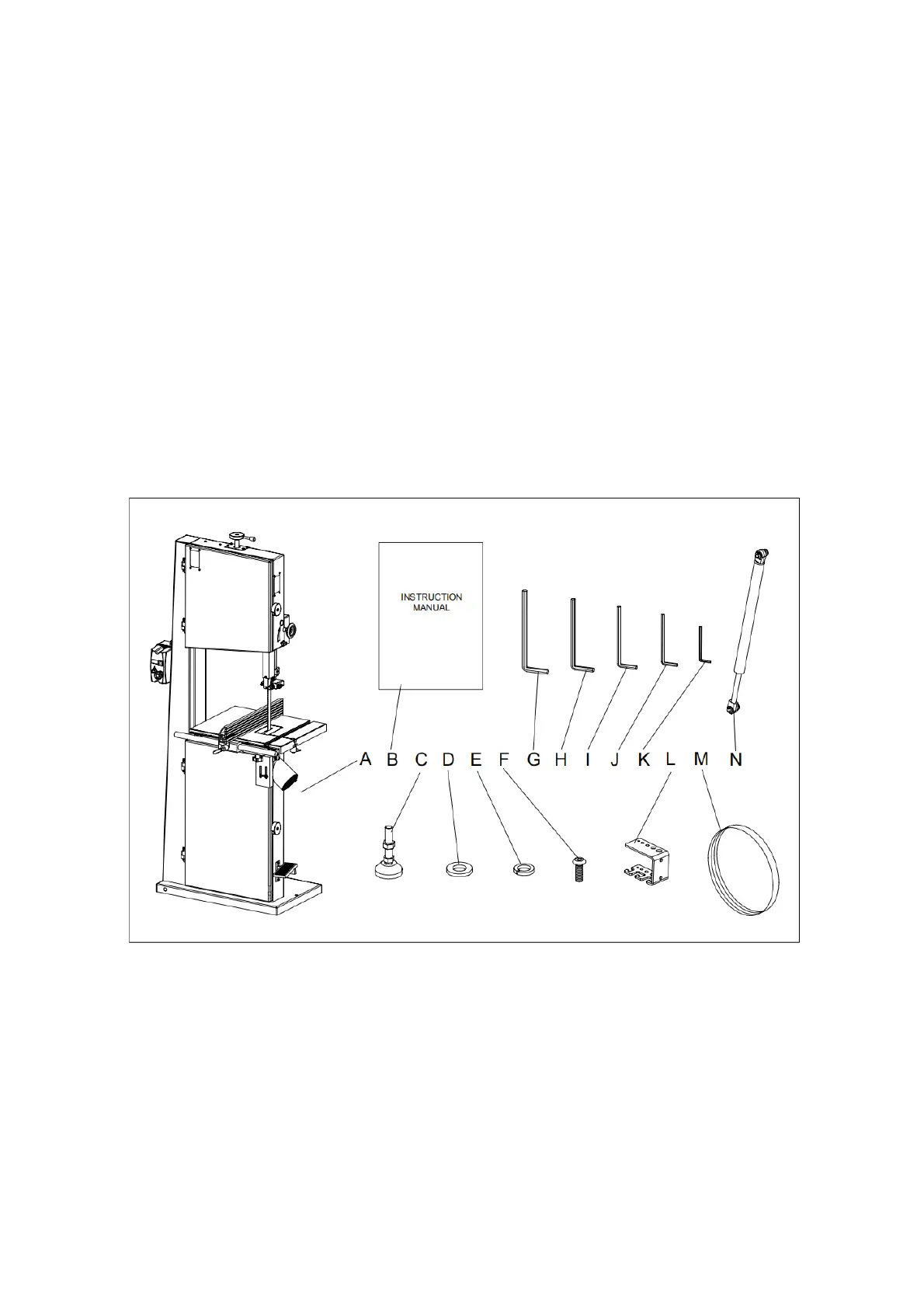

Contents
Fig. 2
No. Name Qty No. Name Qty
ABandSaw 1 HHexWrench5mm 1
B User Manual 1 I Hex Wrench 4mm 1
C Stand Pad 4 J Hex Wrench 3mm 1
D Flat Washer 5mm 2 K Hex Wrench 2mm 1
E Spring Washer 5mm 2 L To o l Storage Hook 1
F Cap Screw 5x12mm 2 M Blade 3/4″ 1
G Hex Wrench 6mm 1 N Spring Assembly 1
To Next Page
