MOUNTING
8
4 MOUNTING
4.1 Mounting position
The torque transducer can be mounted in any position (see also chapter 4.3.1).
4.2 Mounting options
CAUTION
The permissible load limits specified in the technical data (see chapter 10) must be
strictly observed.
Ó
Ó
Ó
ÔÔÔÔÔÔÔ
ÔÔÔÔÔÔÔ
Ô
Ô
ÓÓ
F
Foot mounting be
tween two full cou
plings
Face mounting (mea
suring side), right full
clutch, left belt opera
tion
1)
HBM accessories: Bellows couplings. Two of the available couplings are required
2)
HBM accessories: Bellows couplings. One of the available couplings is required

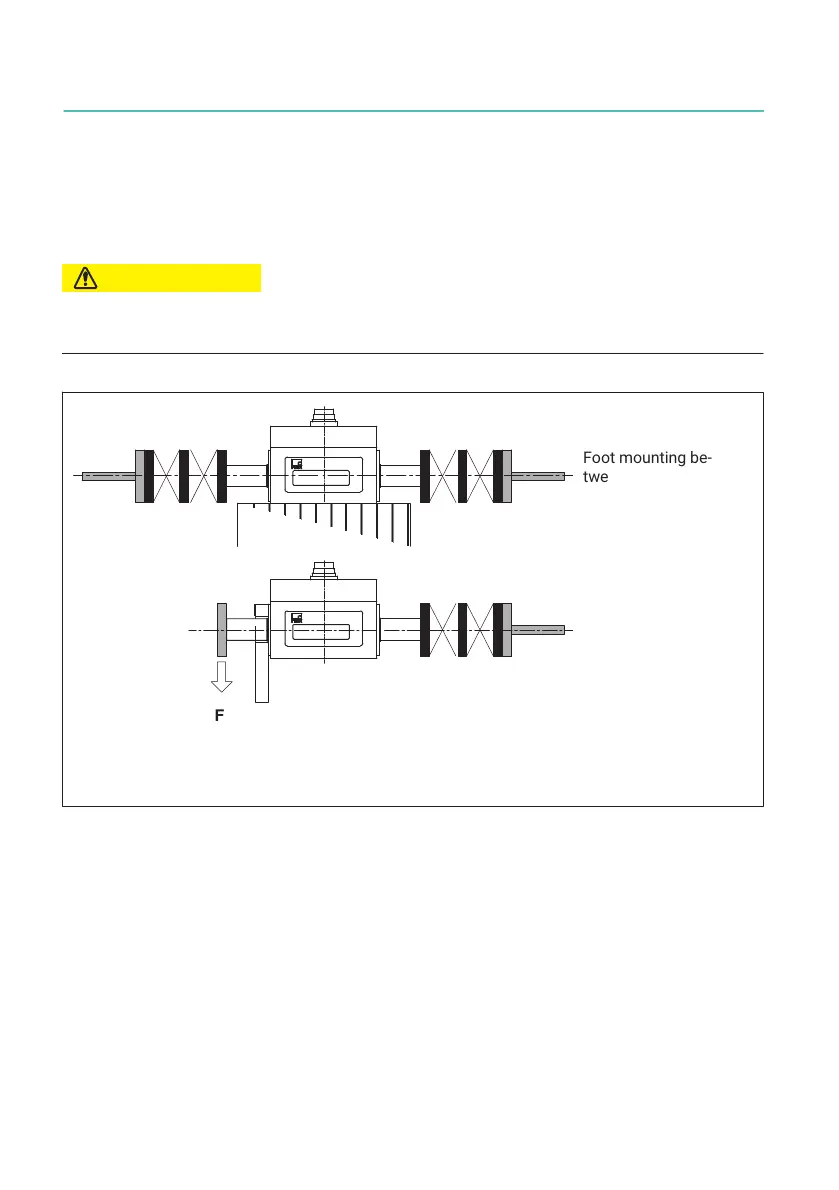

Fig. 4.1 Mounting options with couplings
