Electrical connections
Synchronization
DMP41 A03470_07_E00_00 HBM: public 41

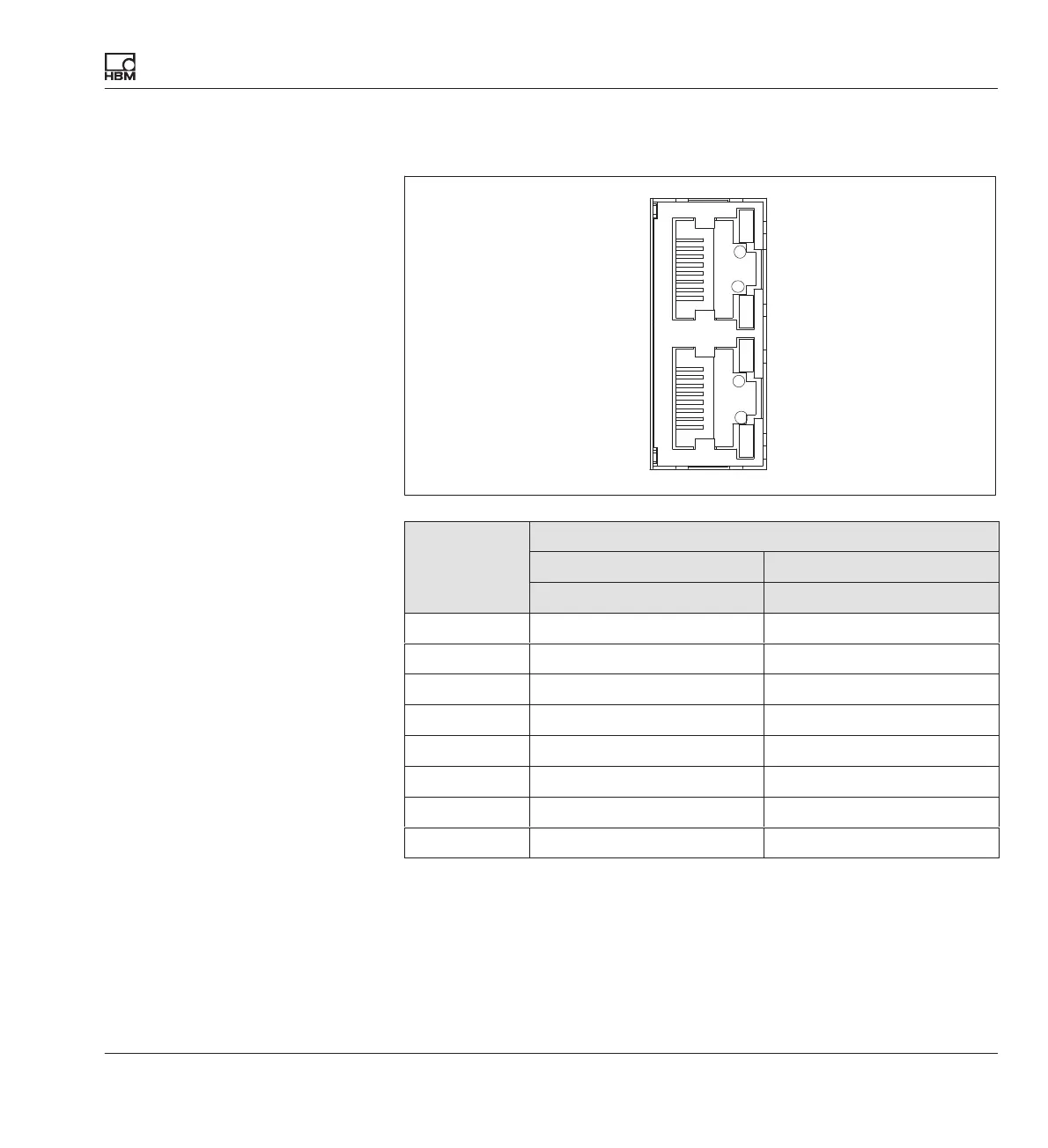

PIN assignments of the synchronization sockets
SYNC.OUT
SYNC.IN
1
8
1
8
PIN
Pin assignment
SYNC.OUT SYNC.IN
Designation Designation
1 Start-A Start-A
2 Start-B Start-B
3 Ready-A Ready-A
4 Master-A Slave-A
5 Master-B Slave-B
6 Ready-B Ready-B
7 Master ID Master ID
8 Ground Ground
