Operation
Function keys in measuring mode (Measure)
DMP41 A03470_07_E00_00 HBM: public 53

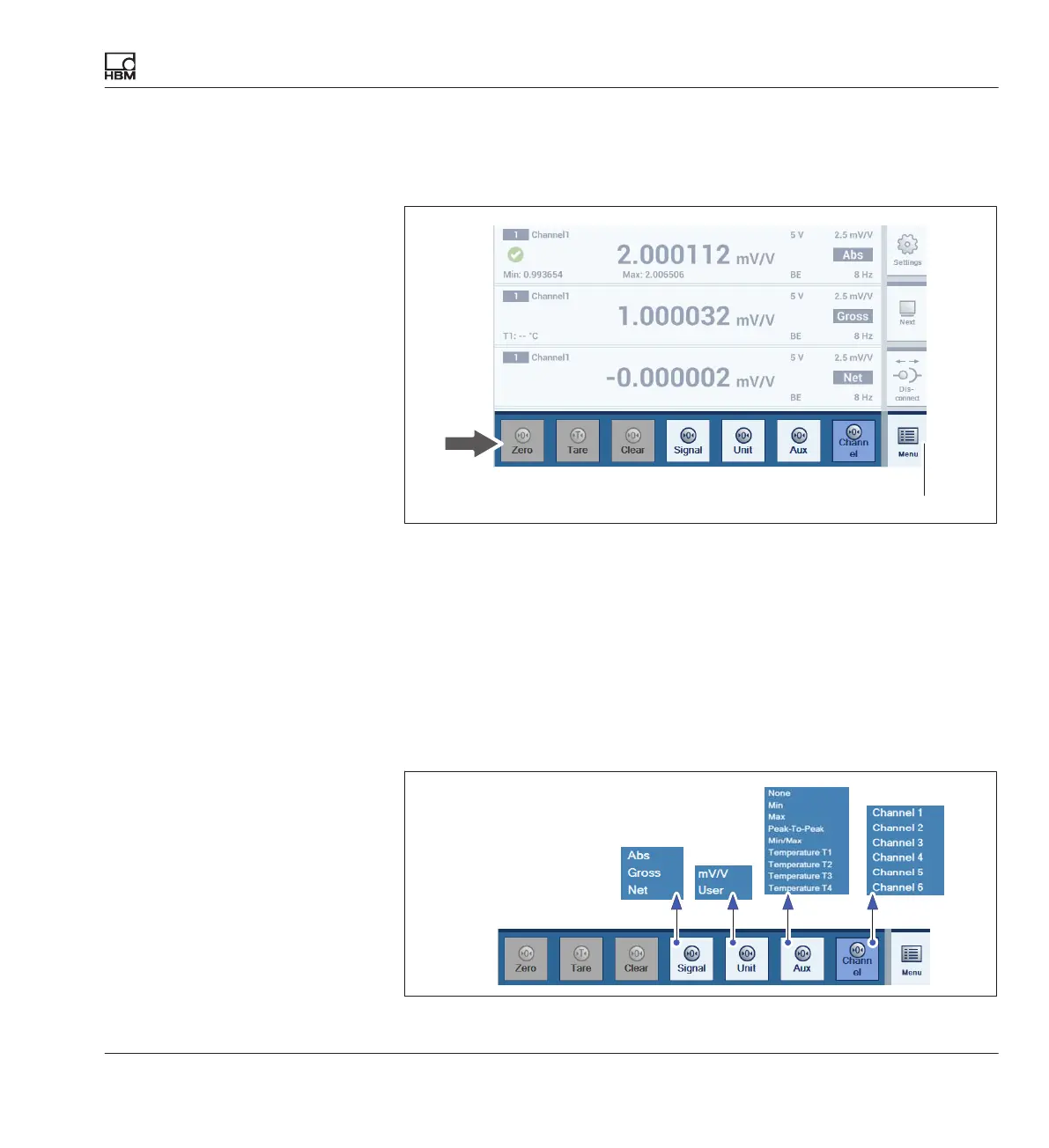

Functions of the quick configuration bar
F4: Opens the quick configuration bar
Hide quick configuration bar again
The functions act on all the selected channels (maximum 6).
The channel parameters can be selected from a pop-up menu in the
functions Signal, Unit, Aux and Channel.
Aux: Temperature T1
All selected channels display the temperature T1
Channel: Channel 4
All the selected channels show Channel 4 in the set properties (e.g. unit,
gross, net).
