HBM DMP41 - Page 76

Configuration
Configuring measurement channels in setting mode
76 A03470_07_E00_00 HBM: public DMP41

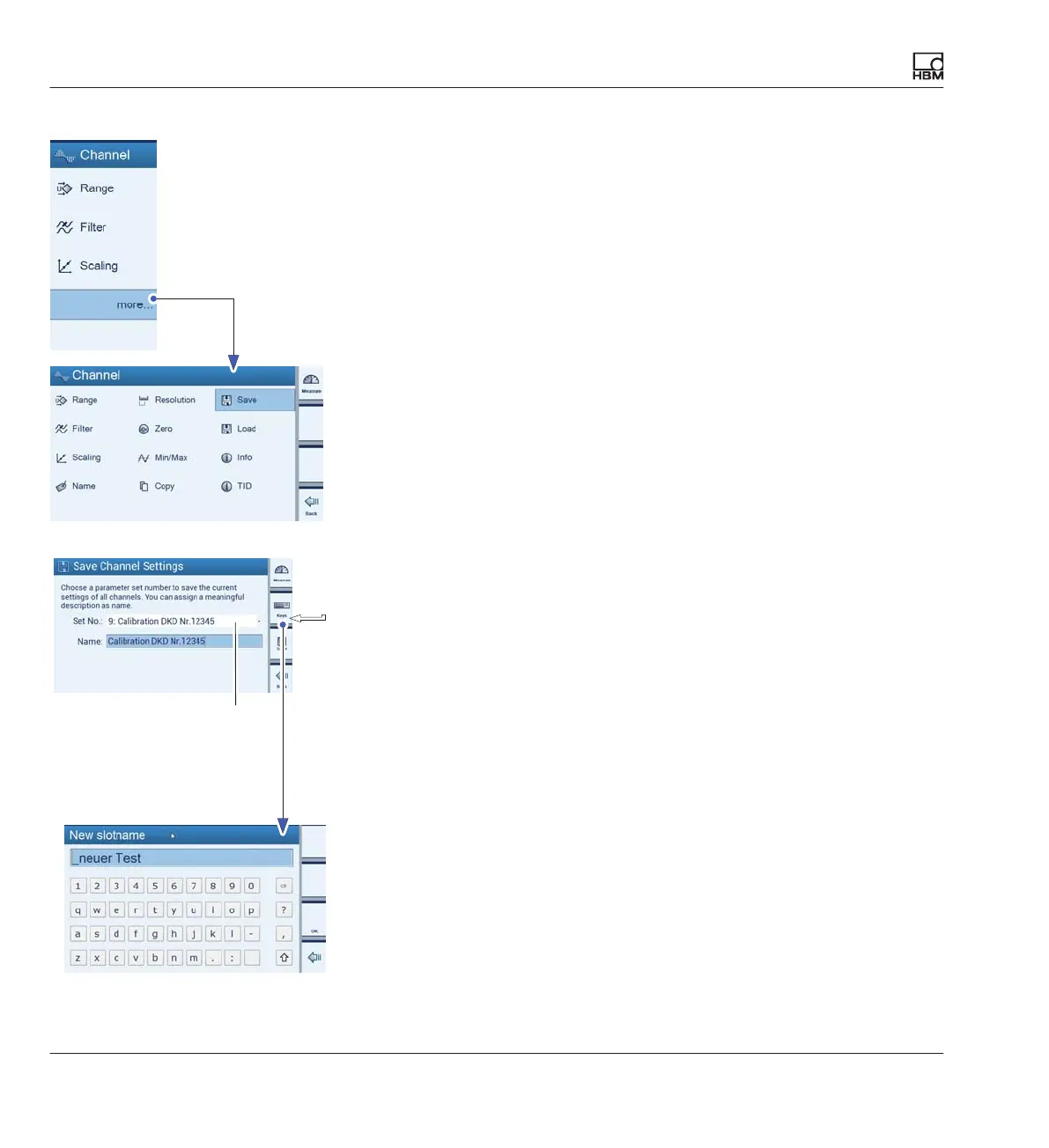

7.2.8 Saving/loading (Save/Load)
Use the Save and Load functions to permanently save the current channel
settings or load saved settings. All the channel settings of all 6 channels are
saved each time. You can assign 1 to 100 parameter sets.
Save
► Press more....
► Press Save.
► Select parameter set number.
Here:
All the channel settings of all six channels are stored under parameter
set number 9.
► Press F2 and assign a name to the selected parameter set (delete letters
and characters with the CE key).
► Press OK.
► Press Save.
Here: saves all the param
eter sets of all 6 channels
under the number 9.
F2
