5 Configuration and balancing (adjustment)
Requirements for setup:
• The housing is open
• The transducer is connected
• The supply voltage is connected and switched on
Important
Switch the device on 15 minutes before adjustment to obtain a precise adjust
ment.
5.1 Open the housing
To open the housing, lift the top and bottom retainer tabs slightly so that they
slide over the engaging cams. Then pull the front part of the housing off
towards the front.
Retainer tab
Retainer tab

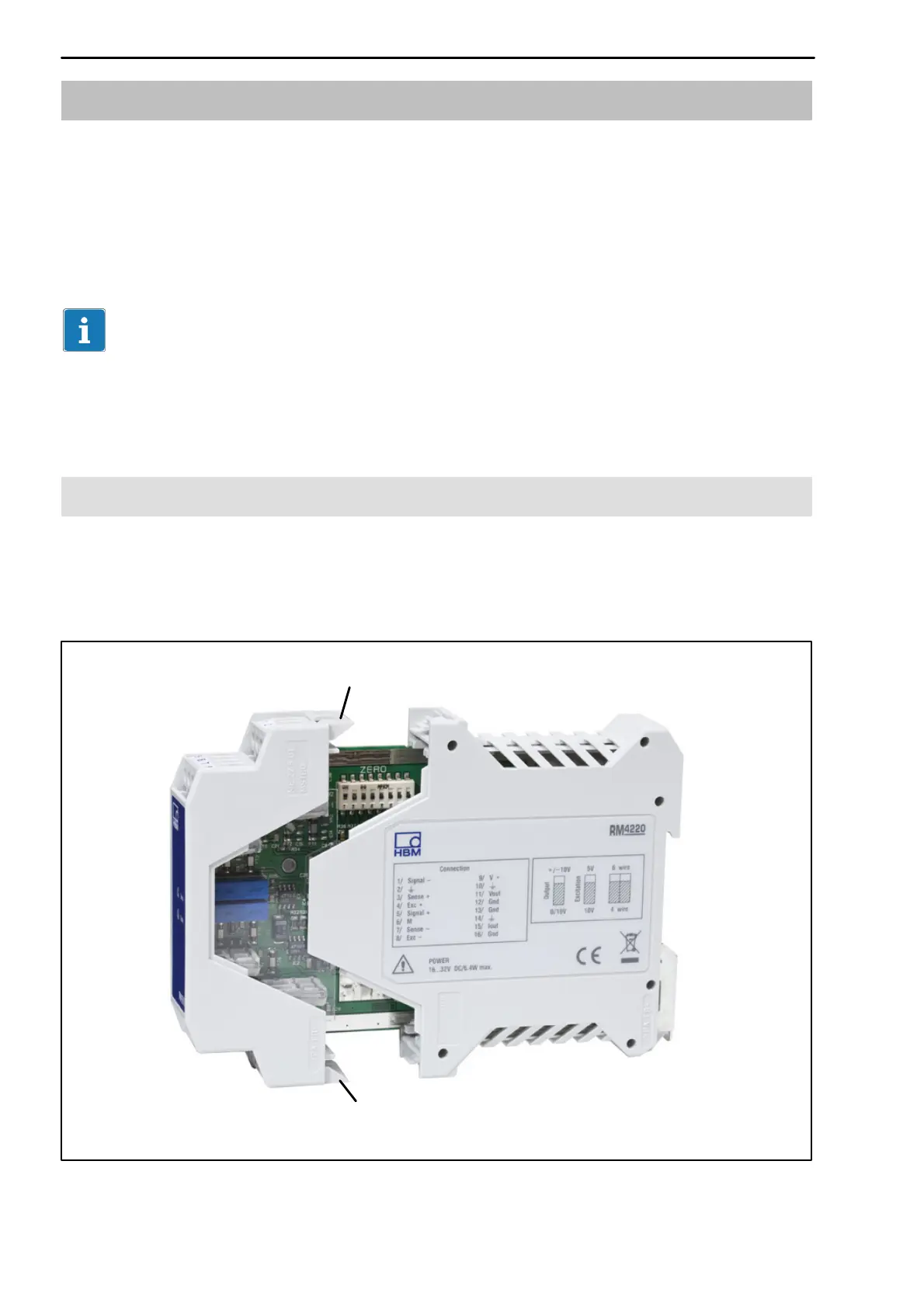

Fig. 5.1: Opening the housing
