4 Accessories
4 Accessories
The following ground cable is available as an accessory:
No. of
pieces
Part Type Order No.
1 Ground cable for CA 08/A 12/A 12-FL/
A 16
5 m, 25 mm²
93-40-020

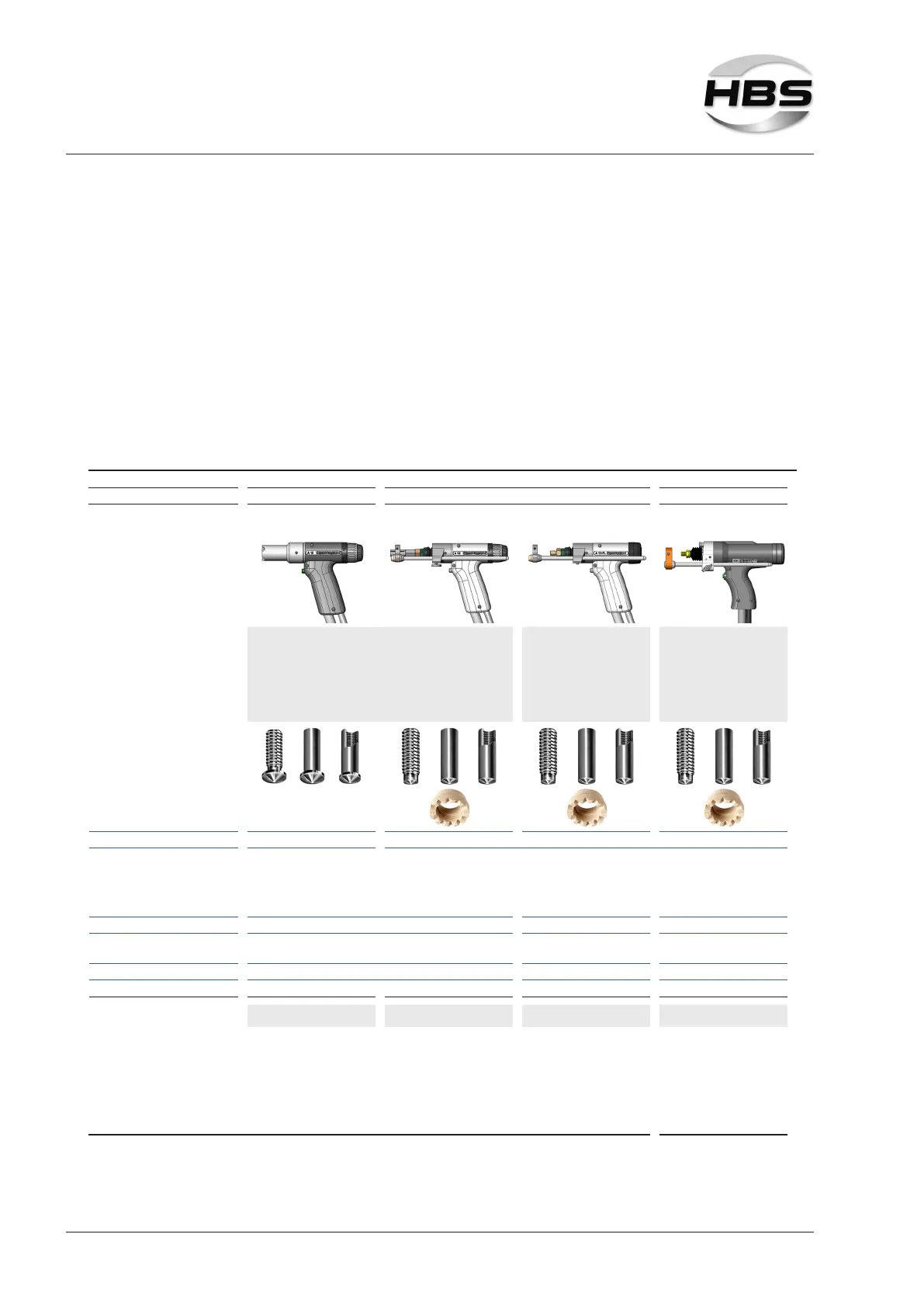

The following stud welding guns are recommended for ARC 800:
Welding range*) M3 to M12 (type RD) / Ø 3 to 10 mm
Stud length 10 to 40 mm 10 to 150 mm 15 to 170 mm
A 12 A 12 A 12-FL A 16
• Small gun with easy setup for SC welding
• Length compensation (stable welding results)
• Simple set-up of the
gun without length
compensation
• All-rounder for construc-
tion sites
• Now with new leg
guidance
• Robust gun with plunge
damper and length
compensation
Welding elements
Welding process
Stud type SC threaded studs with
ange (PS),
pins with ange (US),
pins with internal thread
and ange (IS)
ARC threaded studs (PD/RD/DD), pins (UD),
pins with internal thread (ID)
Length compensation 3 mm automatic -- 6 mm automatic
Lift Adjustment range 3 mm, lockable Fixed 6 mm Adjustment range 4 mm,
(0.25 mm steps, arresting)
Spring force Adjustable, arresting Fixed Oildamper
Welding cable 4.8 m, 35 mm², SK 50 5 m, 35 mm², SK 50 4.8 m, 50 mm², SK 50
Order No. Order No. Order No. Order No.
93-20-276
(welding gun A 12 incl.
centering tube PPR-2)
93-20-275
(welding gun A 12 incl.
ceramic leg assembly
PSC-1)
93-20-260
(welding gun excluding
leg assembly)
93-40-022
(ceramic leg assembly
PSC-1)
not included in delivery
93-20-280C
(welding gun excluding
leg assembly)
93-40-028
(ceramic leg assembly
PSC-2)
not included in delivery
*) recommended welding range ARC 800 / welding gun with this equipment
