11 Connection
11.3 Connecting the Ground Cable

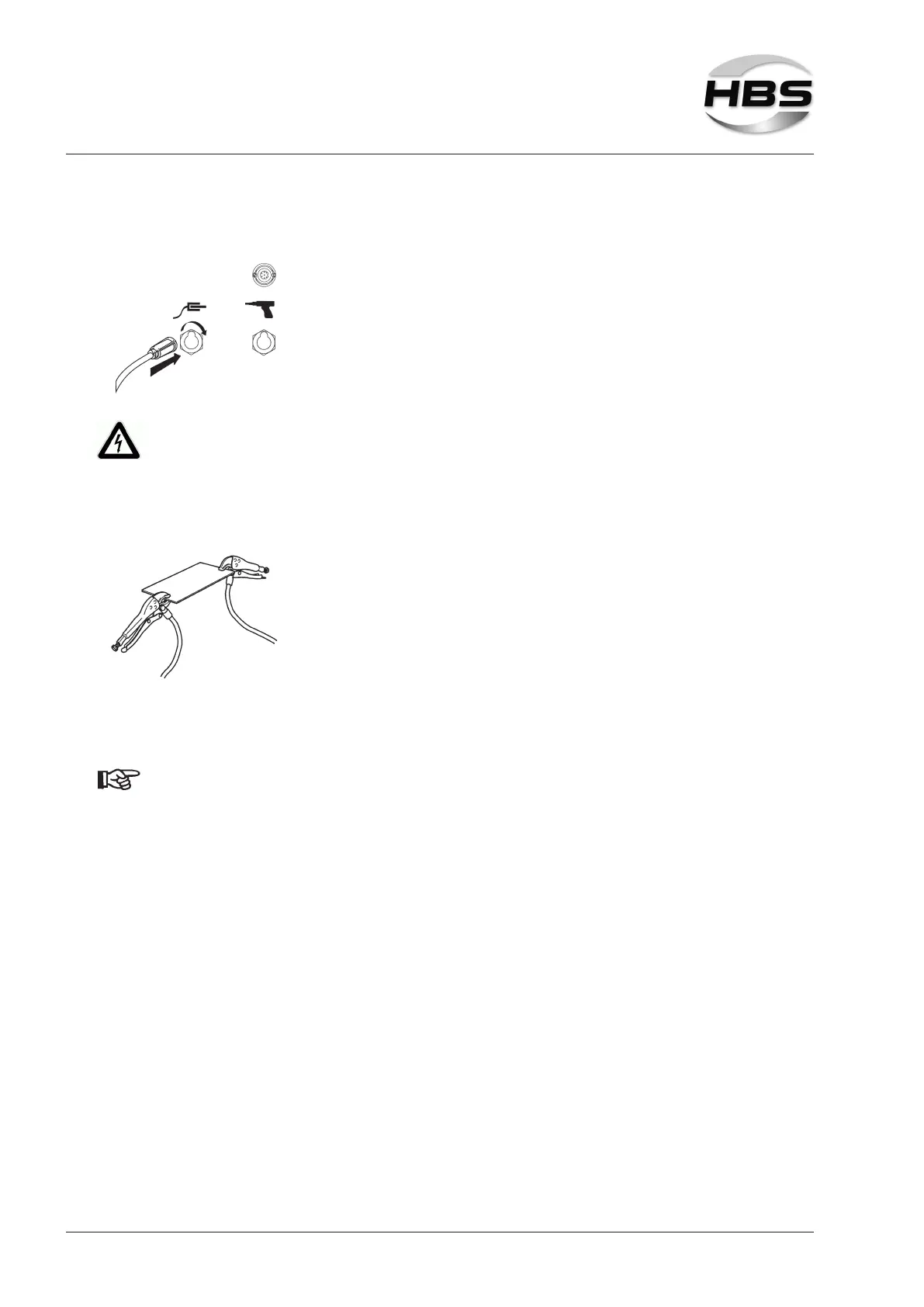

Connect the ground cable
Plug the ground cable into the corresponding socket of the
stud welding unit.
Press in the plug and turn it rmly clockwise (to the right).
Only loosely made connections will result in damage to the plug con-
nectors.
Therefore always check that the plug connector is rmly inserted.
This prevents a poor contact and hence overheating of the plug connectors.
Connect the ground clamps
Remove rust, paint and dirt from the points on the work-
piece to which you wish to connect the ground clamps.
Attach the ground clamps to the workpiece as tightly as
possible.
Pay attention to a good contact and symmetrical connec-
tion.
The welding point should be in the middle between the two ground
clamps.
