8 Components of the Stud Welding Unit

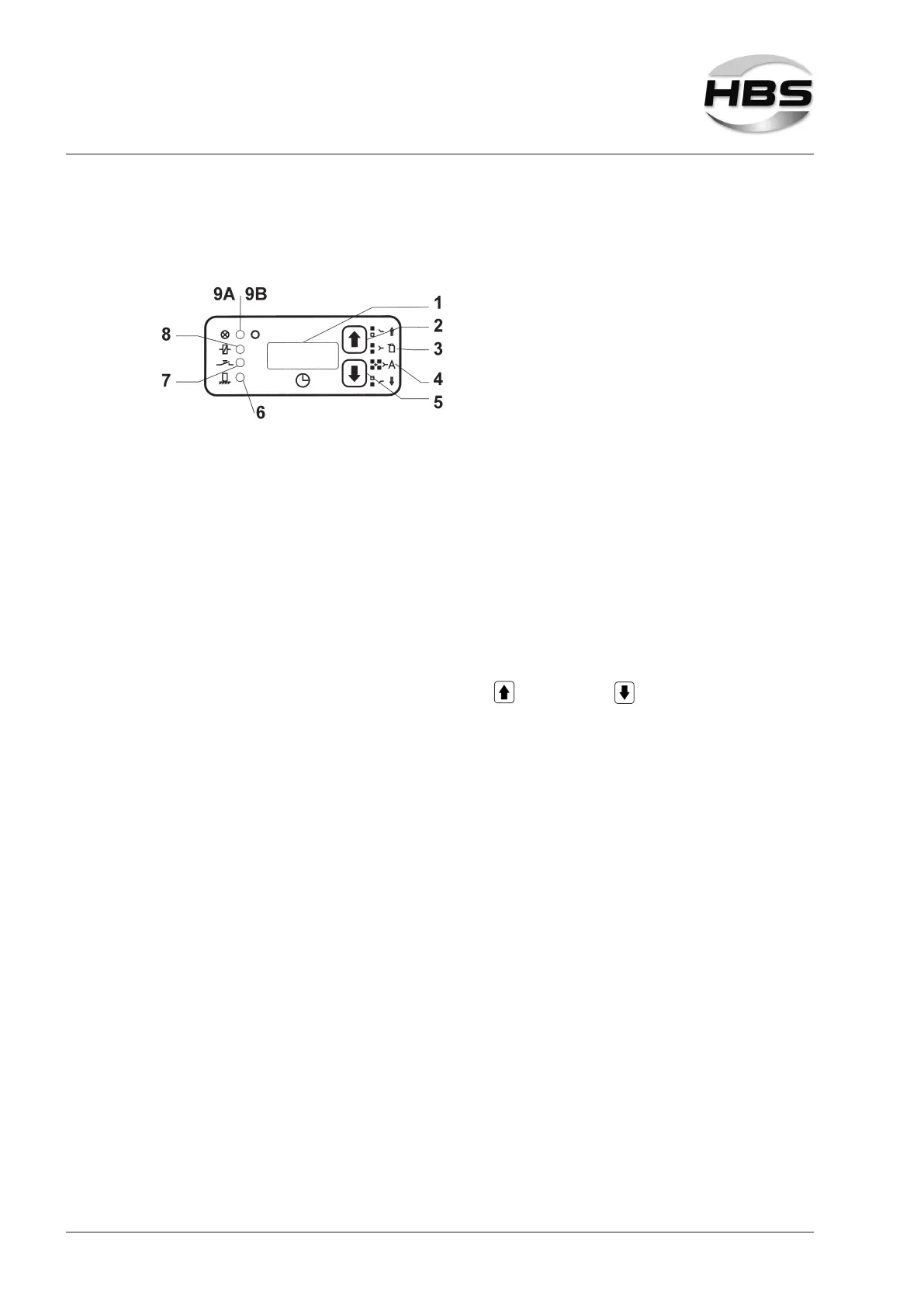

8.2 Control Panel and Display
1 - Display
2 - Longer
3 - Shielding gas
4 - Automation (not available)
5 - Shorter
6 - Contact
7 - Trigger
8 - Solenoid
9 - Stand-by display
9A - Locked
9B - Ready for welding
The condition of the stud welding unit is monitored after switching-on.
After self-test, the digital display shows the last set welding time.
The welding time is shown at the display (1).
The welding time is set with the arrow keys ( longer (2) - shorter (4)).
